168

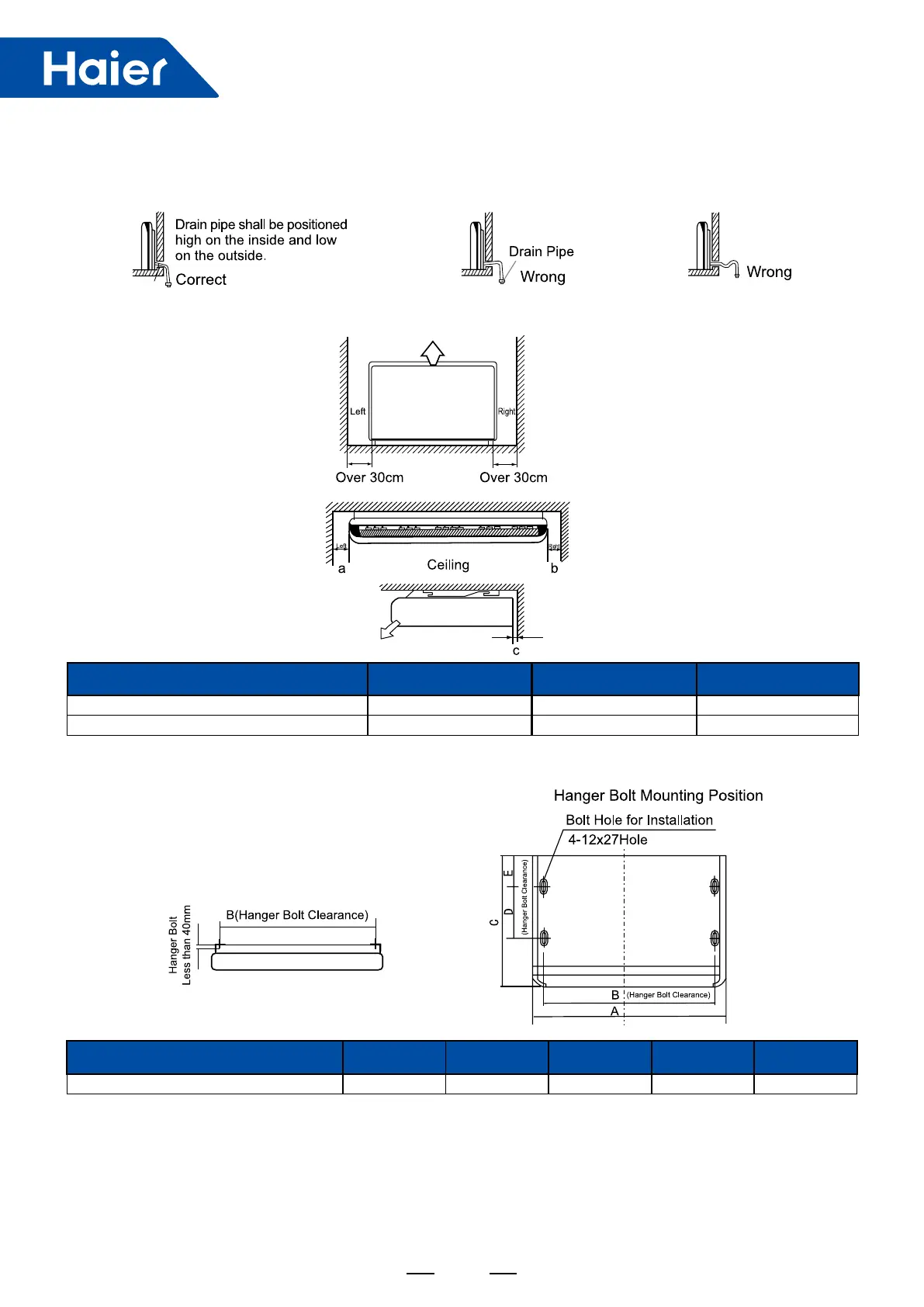

CAUTION: Drain pipe leading-out direction shown with gure below.
Attention to distance from the unit to the obstacles (as shown with gure).
4. Ceiling Installation
Model a b c
AC092-242MCERA Over 30cm Over 30cm Over 2cm
AC282-482MFERA Over 80cm Over 150cm Over 10cm
Ceiling Installation
①
Use Φ10 hanger bolts, prepared on the site.
Please refer to gure on the right when installing.
Model A (mm) B (mm) C (mm) D (mm) E (mm)
AC092-242MCERA 990 900 655 200 175
