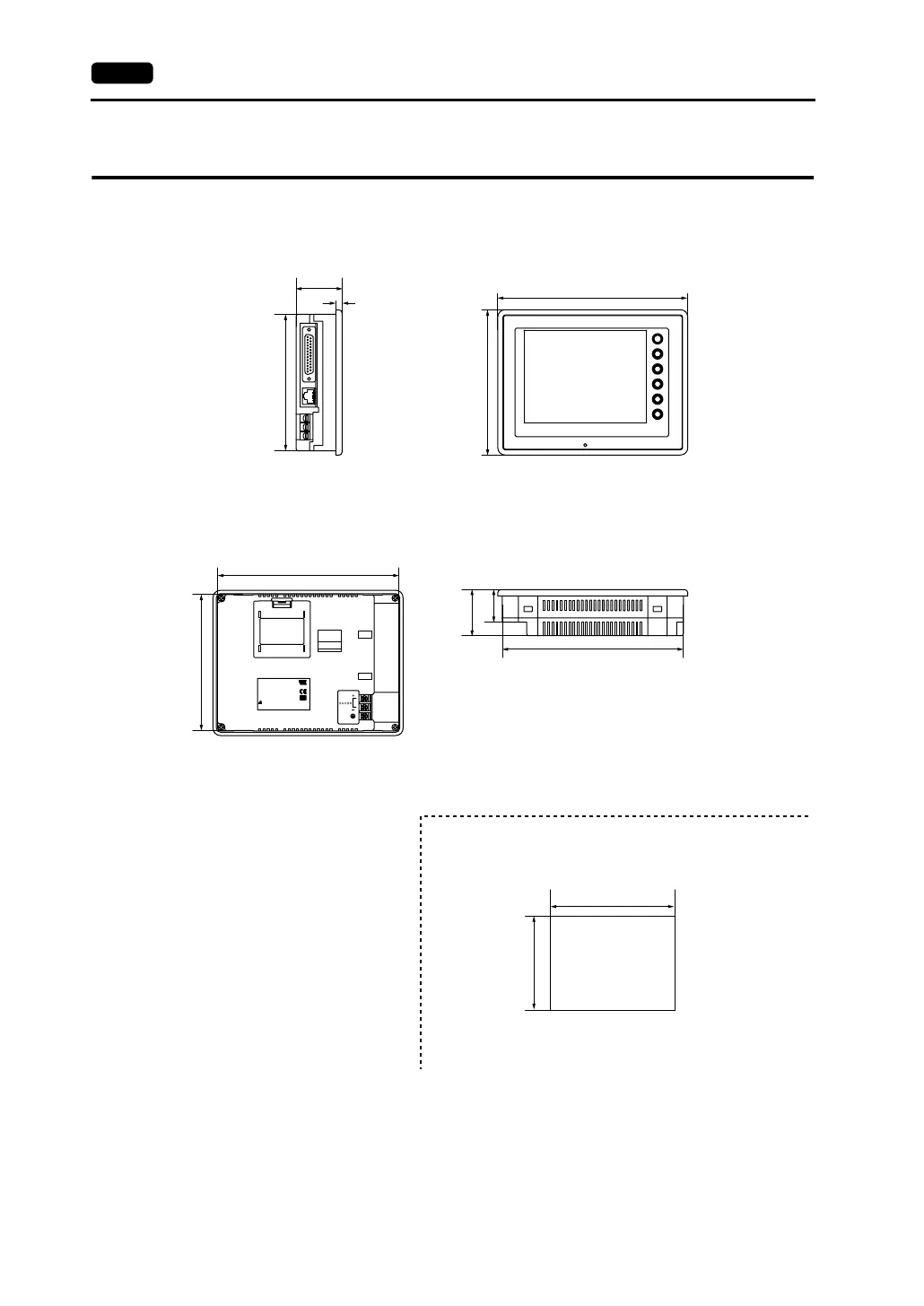

2-6 2. Dimensions and Panel Cut-out
2. Dimensions and Panel Cut-out
(Unit: mm)
+0.5 -0
+0.5
-0
SYSTEM
F2
F3
F4
F5
F1
POWER
CN1
MJ1
INPUT: 24VDC
CURRENT:0.4A
ASSEMBLED IN CHINA
CUS
E185413
Hakko Electronics Co., Ltd.
TYPE:V606eM*0
Ser No: ******* *
DIPSW
44
130.8
6
181.6
138.8
173.6
130.8
173.6
44
31
174
131
(3)
• Side View • Front View
• Panel Cut-out Dimensions
• Rear View • Bottom View
