1. 1 : 1 Connection

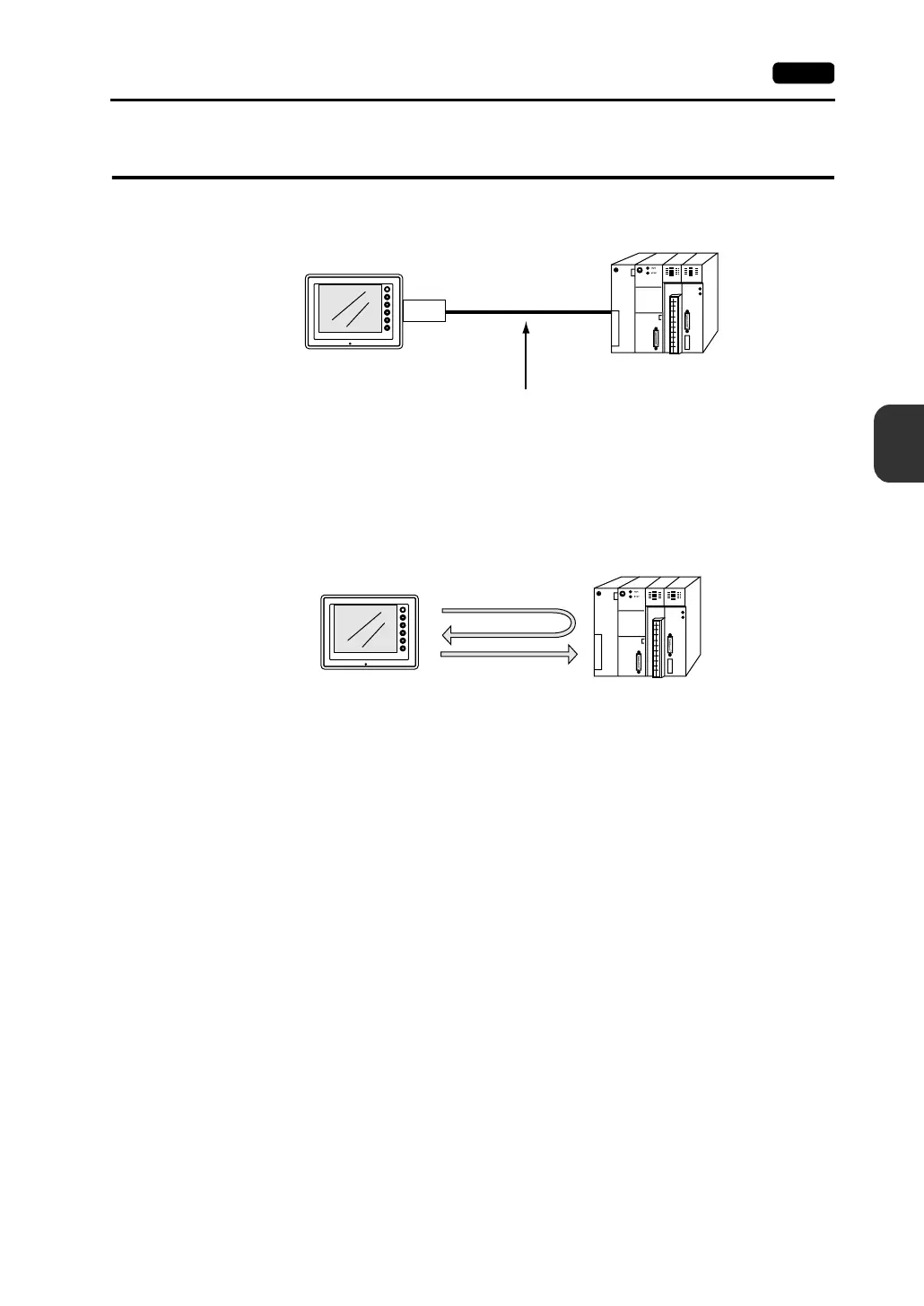

• One set of the V606e is connected to one PLC (1 : 1 connection).
• The host link unit of the PLC or the CPU port is used and the V606e (master station) establishes
communications according to the protocol of the PLC. Consequently, it is not necessary to have
the dedicated communication program on the PLC (slave station). The V606e reads the PLC
memory for screen display. It is also possible to write switch data or numerical data entered
through the keypad directly to the PLC memory.
• For more information on wiring and communication settings, refer to the PLC Connection Manual.
PLC
CN1
SYSTEM
F2
F3
F4
F5
F1
POWER
RS-232C or RS-422 (RS-485)
V606e
PLC
SYSTEM
F2
F3
F4
F5
F1
POWER
Read
Write
V606e
