Hakko Electronics MONITOUCH V606e - N: 1 Connection (Multi-Link)

5-4 4. n : 1 Connection (Multi-link)
4. n : 1 Connection (Multi-link)

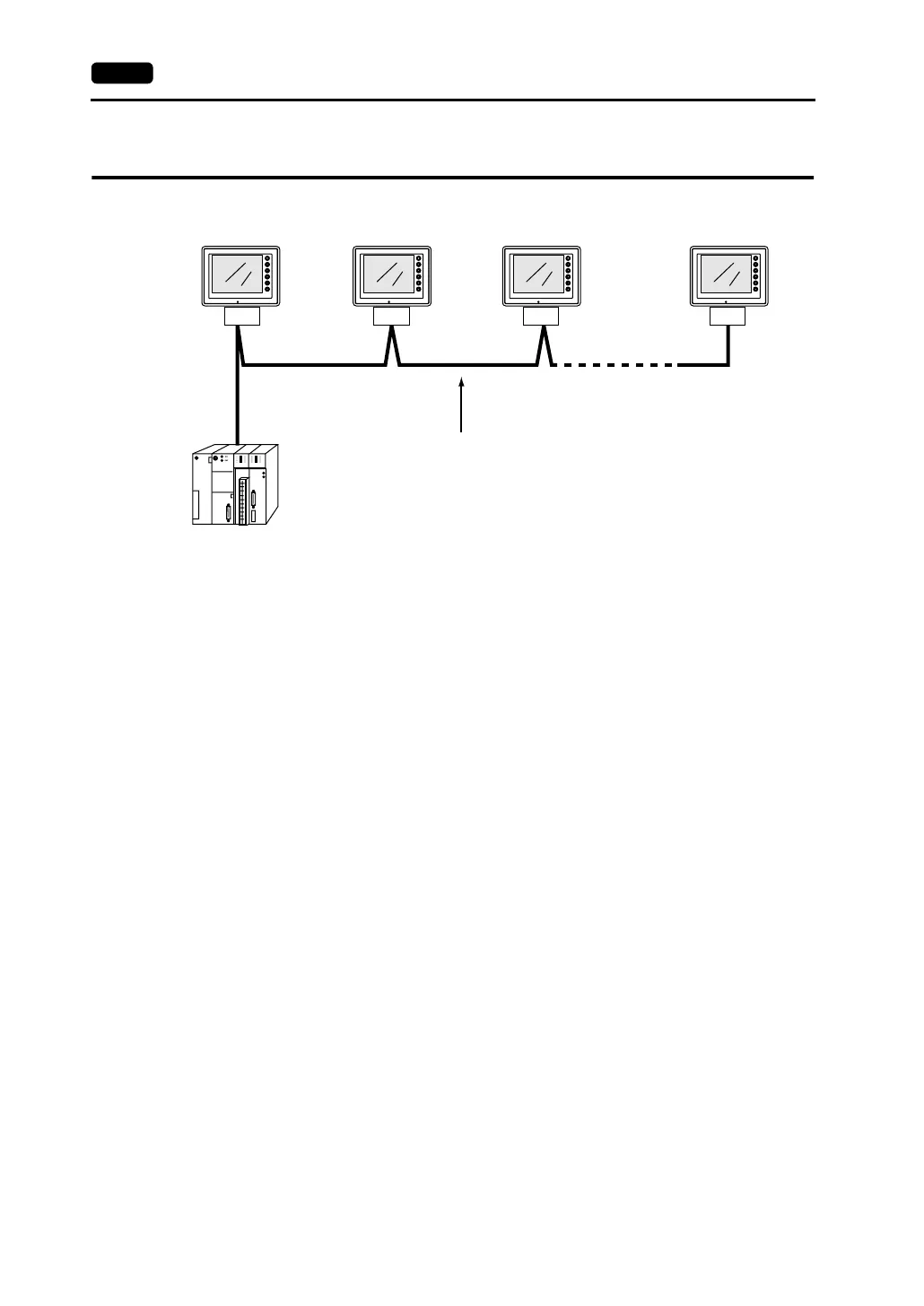

• One PLC is connected to multiple V606e units. (Maximum connectable units: 31)
• The PLC must be of the type of signal level RS-422/RS485 with station numbers.
RS-422 connection between the V606e ↔ PLC must be in 2-wire connection.
• The V606e and V6 series can be used together.
• For more information on wiring and communication settings, refer to the PLC Connection Manual.
PLC
CN1 CN1 CN1 CN1
SYSTEM
F2
F3
F4
F5
F1
POWER
SYSTEM
F2
F3
F4
F5
F1
POWER
SYSTEM
F2
F3
F4
F5
F1
POWER
SYSTEM
F2
F3
F4
F5
F1
POWER
Maximum length (PLC to the terminating V606e) = 500 m
RS-422/RS-485 connection
V606e No. 1 V606e No. 2 V606e No. 3 V606e No. “n” (n = 1 to 31)
