2-10 5. Modular Jack (MJ1)
Transferring Screen Data
• Use modular jack 1 (MJ1) when transferring screen data.
• When [Editor Port] is selected for [Modular Jack 1] on the V-SFT editor, it is possible to transfer
data in the RUN mode because the RUN/STOP mode (on the Main Menu screen) can be
automatically selected.
Also RUN/STOP mode is automatically selected for on-line editing and simulation.
• When an option other than [Editor Port] is selected for [Modular Jack 1], select the STOP mode
(on the Main Menu screen) and transfer screen data. Simulation or on-line editing is not available.
• When transferring screen data, use Hakko Electronics' data transfer cable (V6-CP) 3 m to connect
the V606e to a personal computer.
Barcode Reader Connection
• It is possible to receive the signal from a barcode reader by connecting the barcode reader at the
modular jack (MJ1) of the V606e.

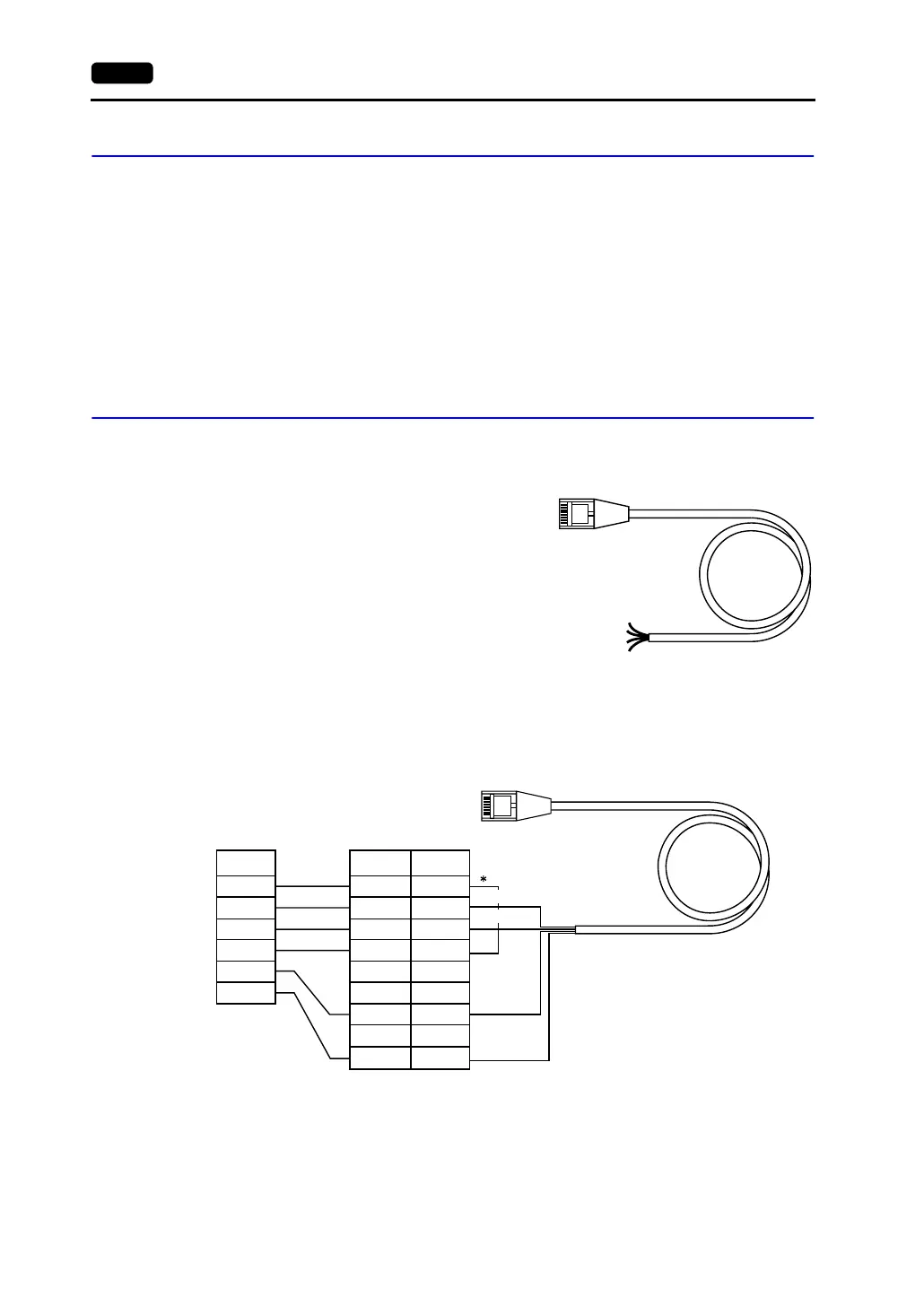

• To connect a barcode reader to the modular
jack (MJ1), use Hakko Electronics’ optional
cable (V6-BCD).
Length: 3 m
with modular plug
• Notes on connection
- In the case of barcode readers with CTS
and RTS control, it may be necessary to
install a jumper to RTS and CTS.
Otherwise the barcode reader may not
work correctly.
- The external power supply (+5 V) is max. 150 mA.
(Refer to page 2-9.)
• When using the barcode reader that was connected to V4S (MONITOUCH's old version), connect
it to the D-sub 9-pin female connector using the V6-BCD cable as shown below.
12345678
Brown: +5 V
Red: 0 V
Orange: RD
Yellow: TD
Pin No
1
2
3
4
5
6
7
8
9
CS
RD
SD
RS
SG
+5V
12345678
RTS
TXD
RXD
CTS
SG
+5V
Signal
Name
Orange: RD
Signal
Name
* Install a jumper between
CTS and RTS.
Red: 0 V
Brown: +5 V
D-sub 9-pin (female)Barcode reader
Yellow: SD
