Hakko Electronics MONITOUCH V606e - Universal Serial Communications

5
5. Universal Serial Communications 5-5
Connections
5. Universal Serial Communications
• A general purpose computer or an ASCII unit of the PLC (master station) controls the V606e
(slave station) using dedicated commands.
• The V606e internal user memory addresses ($u) must be used for memory allocation for switch,
lamp or data display parts.
When the master station specifies a screen number, data is written to the internal memory address
($u) allocated for the screen. If the screen is switched internally, the new screen number is read
and is written to the internal memory address ($u) allocated for the screen.

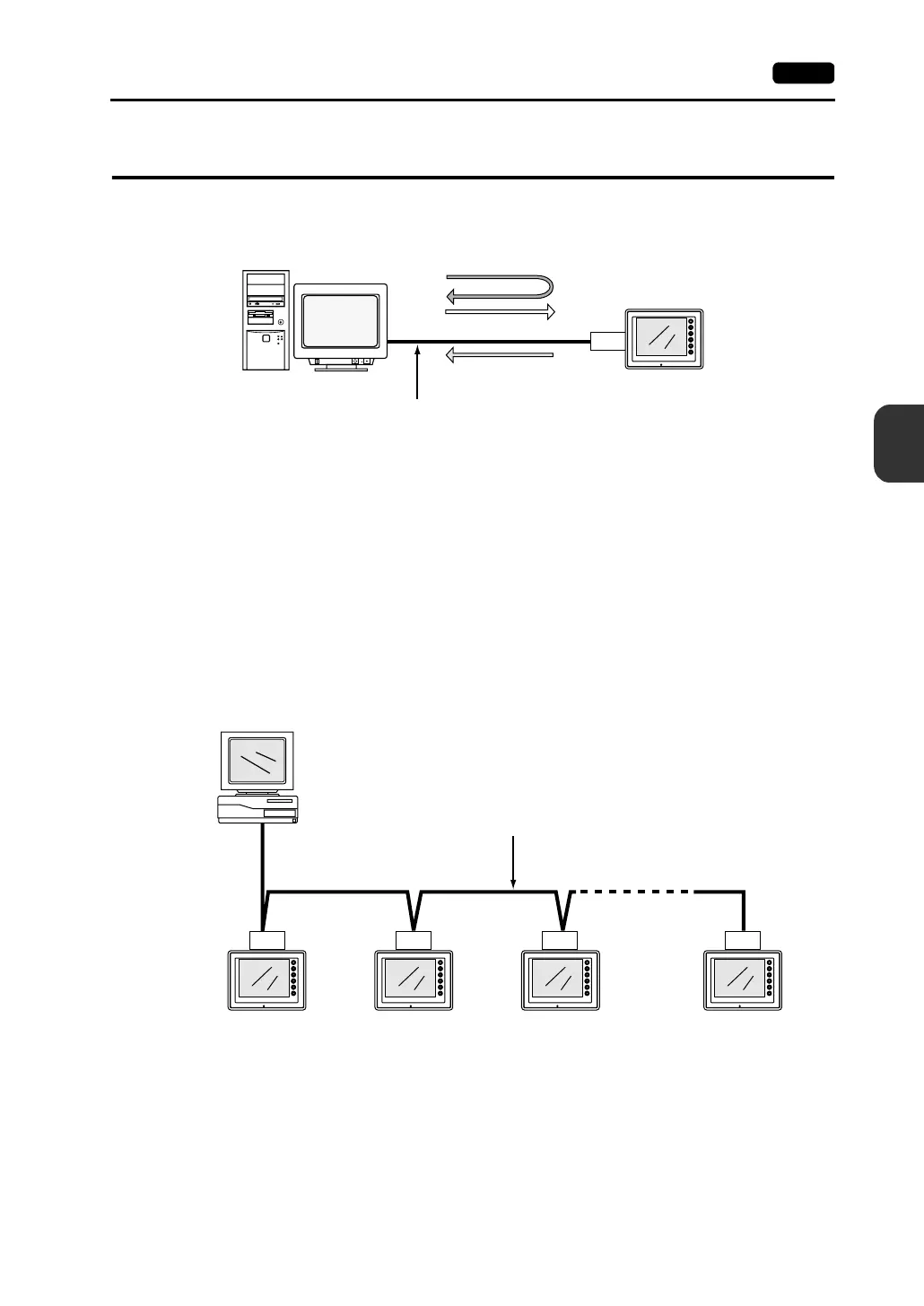

• For 1 : 1 connection, the V606e can send an interrupt to the master station through switch
activation, write command from the keypad, and screen change.
• Use CN1 of the V606e for connection with a general-purpose computer. Either signal level
RS-232C or RS-422 (RS-485) can be selected.
• In addition to 1 : 1 connection, 1 : n connection is available between the general-purpose
computer and the V606e via RS-422.
(A maximum of 32 V606e units can be connected.)
For 1 : n connection, interrupts cannot be used.
• For more information, refer to the PLC Connection Manual.
RESET
disc
CN1
SYSTEM
F2
F3
F4
F5
F1
POWER
RS-232C or RS-422 (RS-485)
V606e
Write
General-purpose computer
Dedicated commands
Interrupt
Read
CN1 CN1 CN1 CN1
SYSTEM
F2
F3
F4
F5
F1
POWER
SYSTEM
F2
F3
F4
F5
F1
POWER
SYSTEM
F2
F3
F4
F5
F1
POWER
SYSTEM
F2
F3
F4
F5
F1
POWER
RS-422 (RS-485) connection
V606e No. 1
General-purpose computer
V606e No. 2 V606e No. 3 V606e No. “n” (n = 1 to 32)
