8. Temperature Control Network

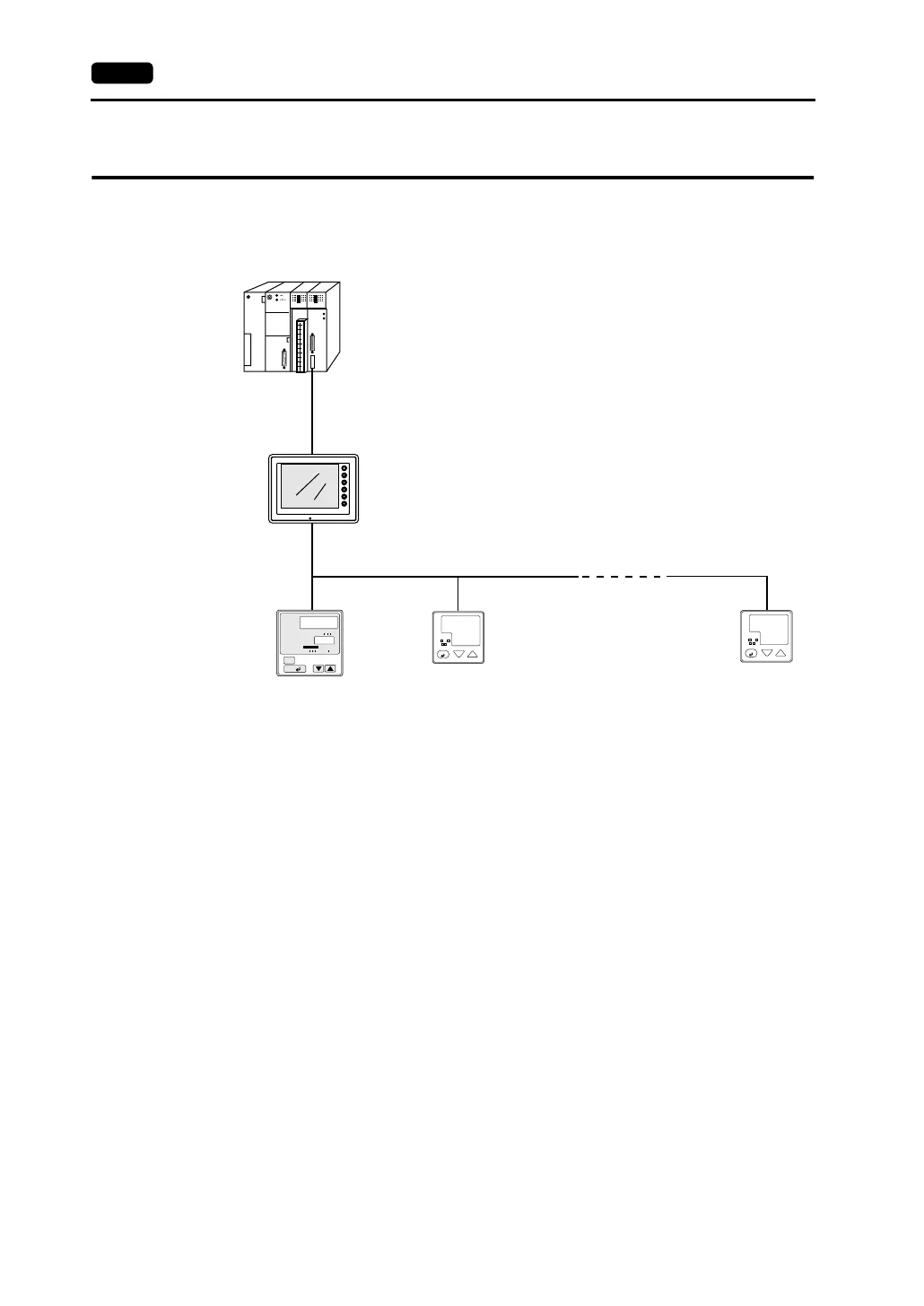

• Using the temperature control network, the V606e can be connected to the temperature controller
or inverter.
With RS-232C, one PLC can be connected; with RS-485, a maximum of 31 temperature
controllers can be connected.
• Data of temperature controllers connected to the V606e can be set or monitored.
• Periodical reading/sampling of temperature controller data
When read/write memory addresses are preset on the temperature control network/PLC2Way
table, background data reading is performed at regular intervals. It is also possible to save the
read data in the V606e internal buffer, SRAM or CF card.
• Data transfer
It is also possible to transfer data in the PLC memory, V606e internal memory or a memory card to
the temperature controller at one time using a macro command. Conversely, data in the
temperature controller can be transferred to the PLC memory, V606e internal memory or a
memory card at one time.
• For more information, see the Temperature Control Network Manual.
