Wireless AP Router HNW300APN2
User Manual 123
14.2 IP filtering for UDP with specified IP
Please follow example below to deny the UDP protocol for specified IP.

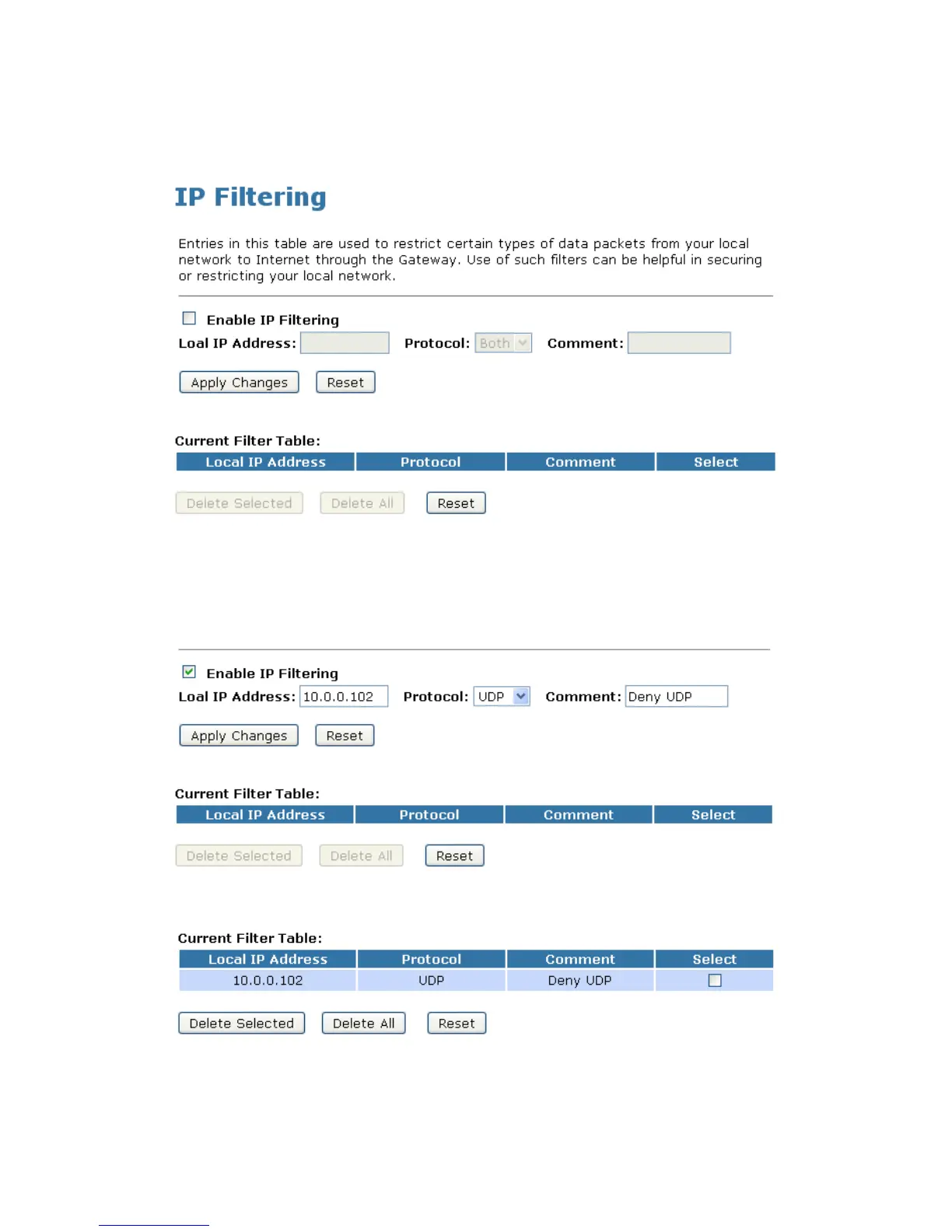

1. From the left-hand Firewall -> IP Filtering menu. The following page is displayed:
2. Check the option Enable IP Filtering to enable the IP Filtering.
3. Enter the IP Address that you want to be denied in Loal IP Address field.
4. From the Protocol drop-down list, select UDP setting.
5. Enter any comment in Comment field.
6. Click Apply Changes.
7. Now the IP Filter that you created has been added and listed in the Current Filter Table.
8. Now the UDP protocol for both Outbound and Inbound packet has been denied.
Now The Local IP Address for example 10.0.0.102 that listed in the Current Filter Table cannot visit any
application that use UDP protocol for example TFTP Service due to the Protocol UDP has been blocked
by the IP Filtering rule that created.
