Wireless AP Router HNW300APN2
User Manual 128
16.1 Port Forwarding for TCP with specified IP
Please follow example below to configure the Port Forwarding to Specified IP with TCP.

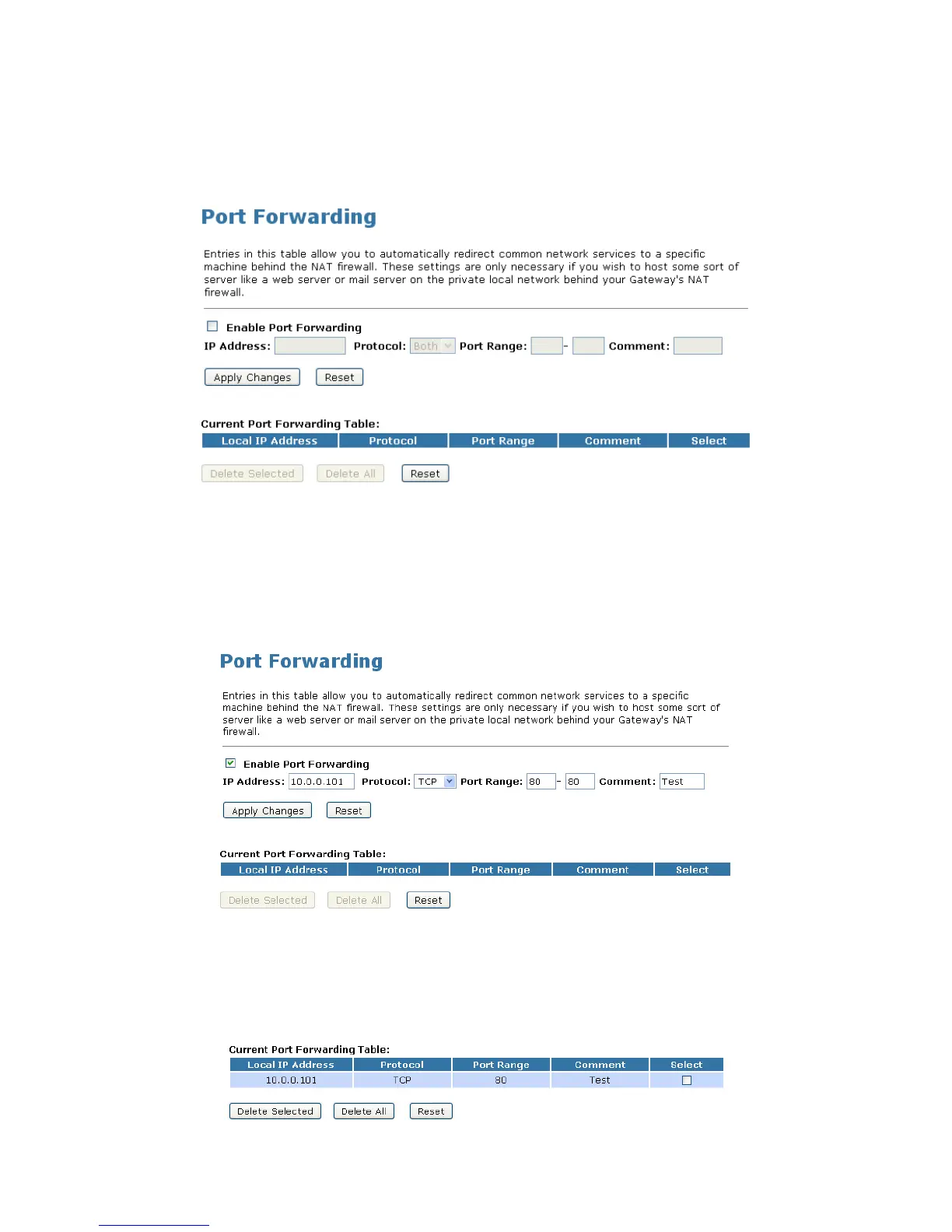

1. From the left-hand Firewall -> Port Forwarding menu. The following page is displayed:
2. Check the option Enable Port Forwarding to enable the Enable Port Forwarding.
3. Enter the IP Address that the port you want to be forwarded in IP Address field.
4. From the Protocol drop-down list, select TCP setting.
5. Enter any comment in Comment field.
6. Click Apply Changes.
7. Now the IP Address and port range that you created has been added and listed in the Current Filter
Table.
8. Now the port range of the IP Address in the Current Filter Table can be access from Internet by TCP
protocol.
