Hantek 6022BE

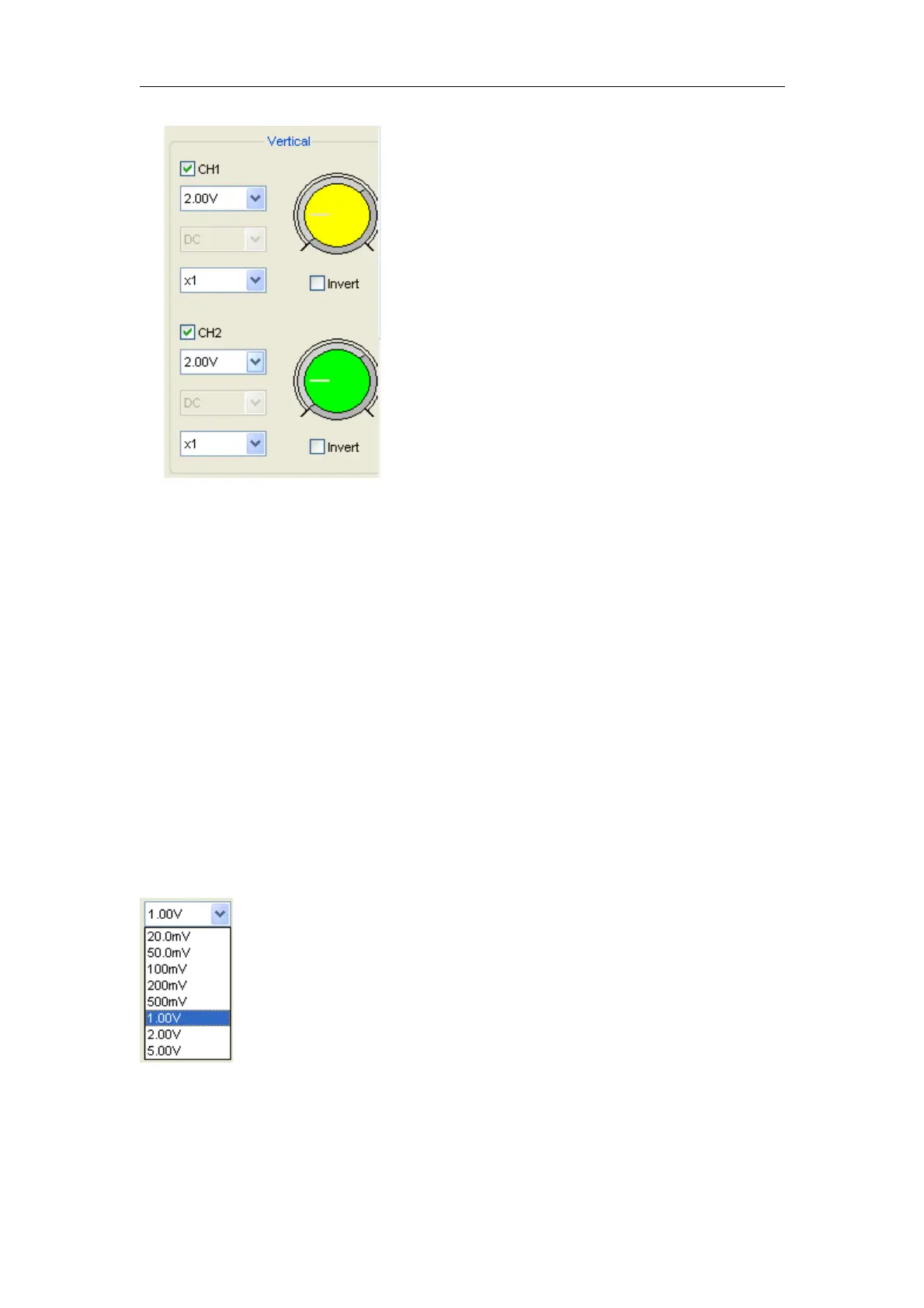

The Vertical Menu function:
Turn ON/Off: Turn on/off the channel
Volt/DIV: Select the channel voltage/div
Coupling: Select the channel coupling
Probe: Select the channel probe attenuation
Change Volt/DIV
You can click “Volt/Div” in “CH1/CH2” Menu to select the voltage
You can also change “CH1/CH2” voltage in sidebar
You can left click and drag the mouse on the green knob or the yellow knob to
change the voltage.
24
The User’s Manual
