 Set Channel Coupling
Click “Coupling” in “Channel” menu

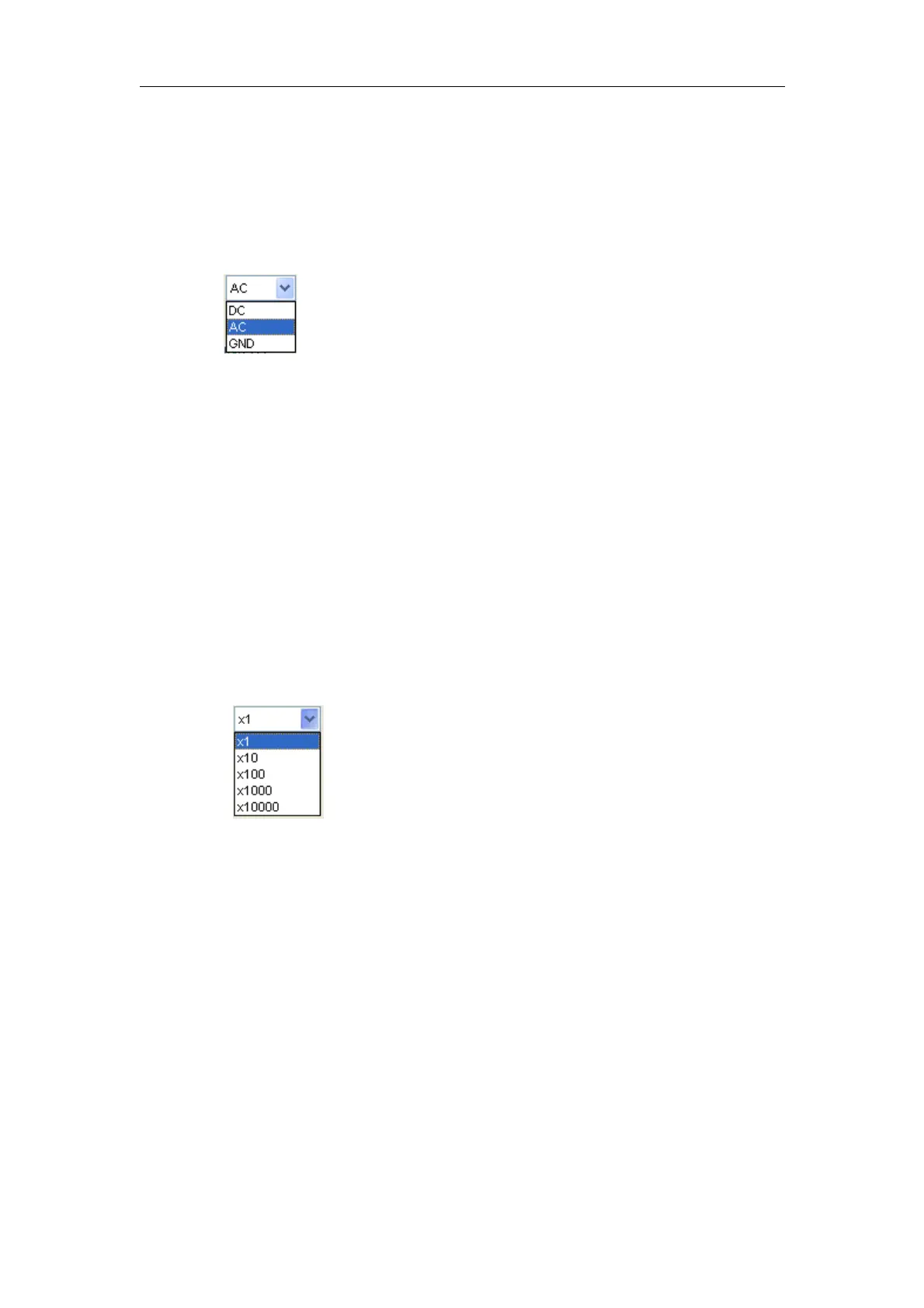

In the sidebar, you can change the channel coupling too.
You can set the coupling to DC, AC or GND. If you set the coupling to DC, it
blocks the AC component of the input signal.
 Probe Attenuation Setting
Select the attenuation factor for the probe. To check the probe attenuation
setting, toggle the probe menu to match the attenuation factor of the probe.
This setting remains in effect before you changed again.
Click “Probe” in Channel menu to select the probe attenuation
The probe setting window in the sidebar
Note
: The attenuation factor changes the vertical scale of the oscilloscope so
that the measurement results reflect the actual voltage levels at the probe tip.
 Invert
The invert function turns the displayed waveform 180 degrees, with respect to
the ground level. When the oscilloscope is triggered on the inverted signal,
the trigger is also inverted.
Click “Invert”
