Burst
EN
Copyright © Qingdao Hantek Electronics Co., LTD HDG3000B User manual
63

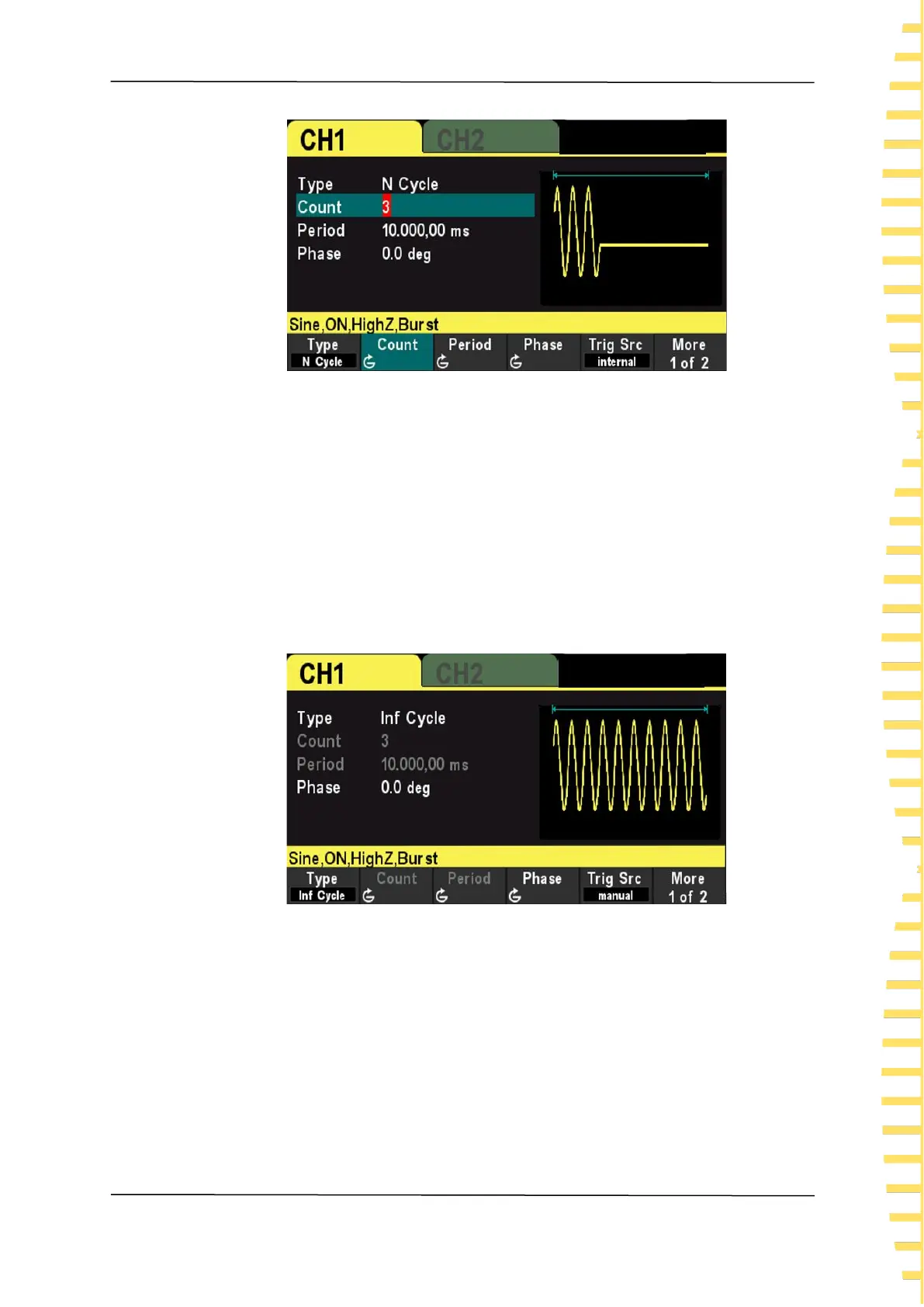

Figure 10.1 N Cycle Burst
For N Cycle mode, the trigger source includes "Internal", "External" or "Manual".
Besides, users can set the "Phase", "Count", "Burst Period" (internal trigger), "Trigger
Slope" (external trigger) and "Trigger" (manual trigger).
Infinite Cycle Burst
In Infinite Cycle mode, the cycle number of the waveform is set as an infinite value. The
generator outputs a continuous waveform after receiving trigger signal.
Press [Burst] > Type softkey to select “Inf Cycle”. A schematic diagram of infinite cycle
pulse will be displayed on the screen.
Figure 10.2 Infinite Cycle Burst
For Infinite Cycle mode, the trigger source includes "Internal", "External" or "Manual".
Besides, users can set the "Phase", "Count" and "Trigger Slope" (external trigger) and
"Trigger" (manual trigger).
Gated Burst
In Gated Mode, the generator controls the waveform output according to the external
signal level from the [FSK/Trig/Sync/Extmod] connector on the rear panel.
Press [Burst] > Type softkey to select “Gate” and then press Polarity to set the gated
