Display messages in the operation screen
▶ PAUSE FUNCTION
Message Explanation
Fixed operation in progress -
Program operation in progress -
[Temperature] Auto tuning in progress
-
[Humidity] Auto Tuning in progress
-
HOLD operation in progress -
WAIT operation in progress -
Parameters loading -
Control communication error
The communication with the control part does not work.
Please verify the address of the connection.
[temperature] Input communication error
The temperature value communication in the control part does not work.
[humidity] Input communication error
The humidity value communication in the control part does not work.
IO[0] Module communication error
The module and communication in the input/output address 0 do not work
IO[1] Module communication error
The module and communication in the input/output address 1 do not work
IO[2] Module communication error
The module and communication in the input/output address 2 do not work
IO[3] Module communication error
The module and communication in the input/output address 3 do not work
IO[4] Module communication error
The module and communication in the input/output address 4 do not work
IO[0] Module communication error
The module and communication in the input/output address 5 do not work
Control FRAM error
Cannot read the parameters in the FRAM of the control part
Parameter error (CONFIG)
Error in the standard parameter value
Parameter error(PROG)
Error in the pattern, segment parameter value
PWM calibration error
Out of the PWM calibration value range

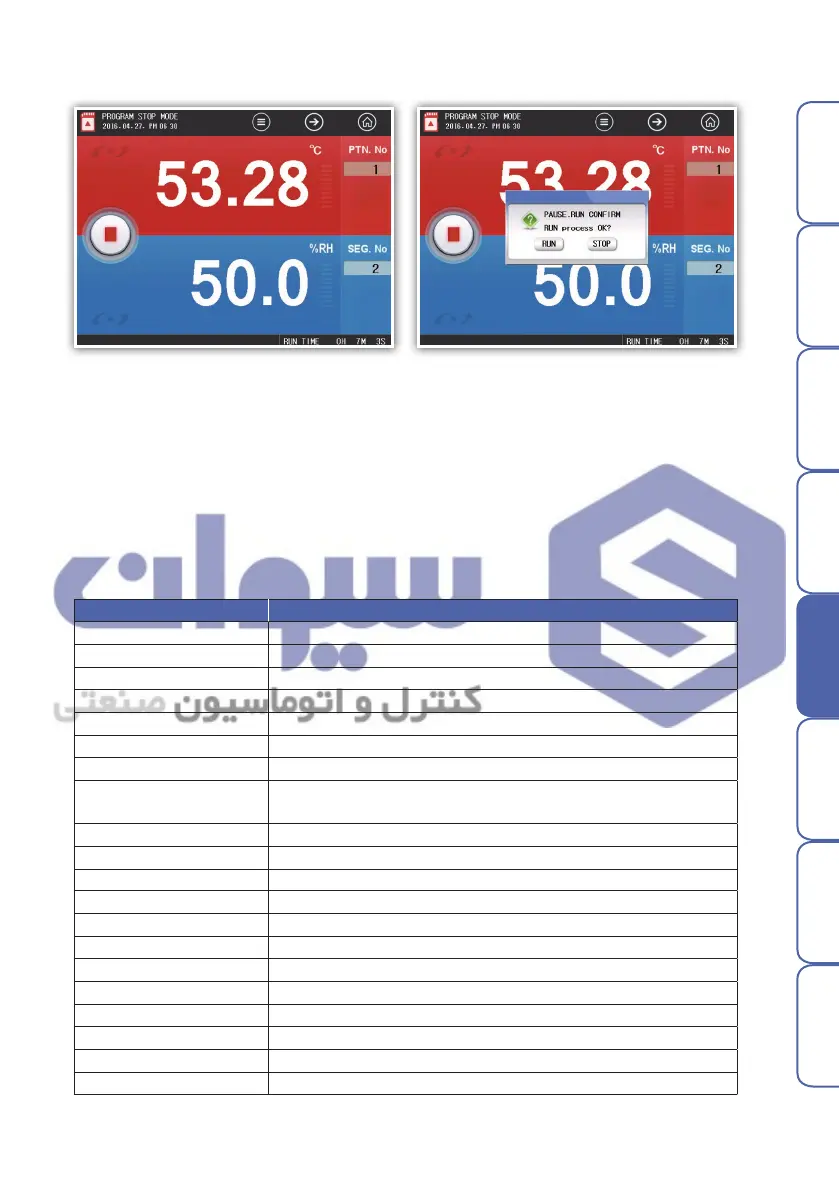

Fig. 24) Pause screen in program stop mode
Fig. 25) Program operation in program stop mode
If the operation stops due to DI error, the pause function maintains the program during the error
correction, and then goes again to the running program.
