Parameter Setting Range Default
Output mode SSR, SCR
SSR
SSR Period 1 ~ 1000 1
Output direction Direct, Reverse Reverse
ARW AUTO, MANUAL AUTO
ARW Value 50 % ~ 200 % 100 %
●
Humidity
SSR cycle
If Voltage pulse output[SSR] is selected, the output is 20 % - 100 %. According to the voltage pulse
output cycle, control output is ON for certain time (OFF for the rest).
If current output is selected, it shows relation between control output(MV) and output range. If the
lower limit is -5 % or upper limit is 105 %, it outputs 3.2 mA DC or 20.8 mA DC, respectively. Within
the range, control output value is linearly converted and output.
Lower limit of output range = -5% Upper limit of output range = 105%

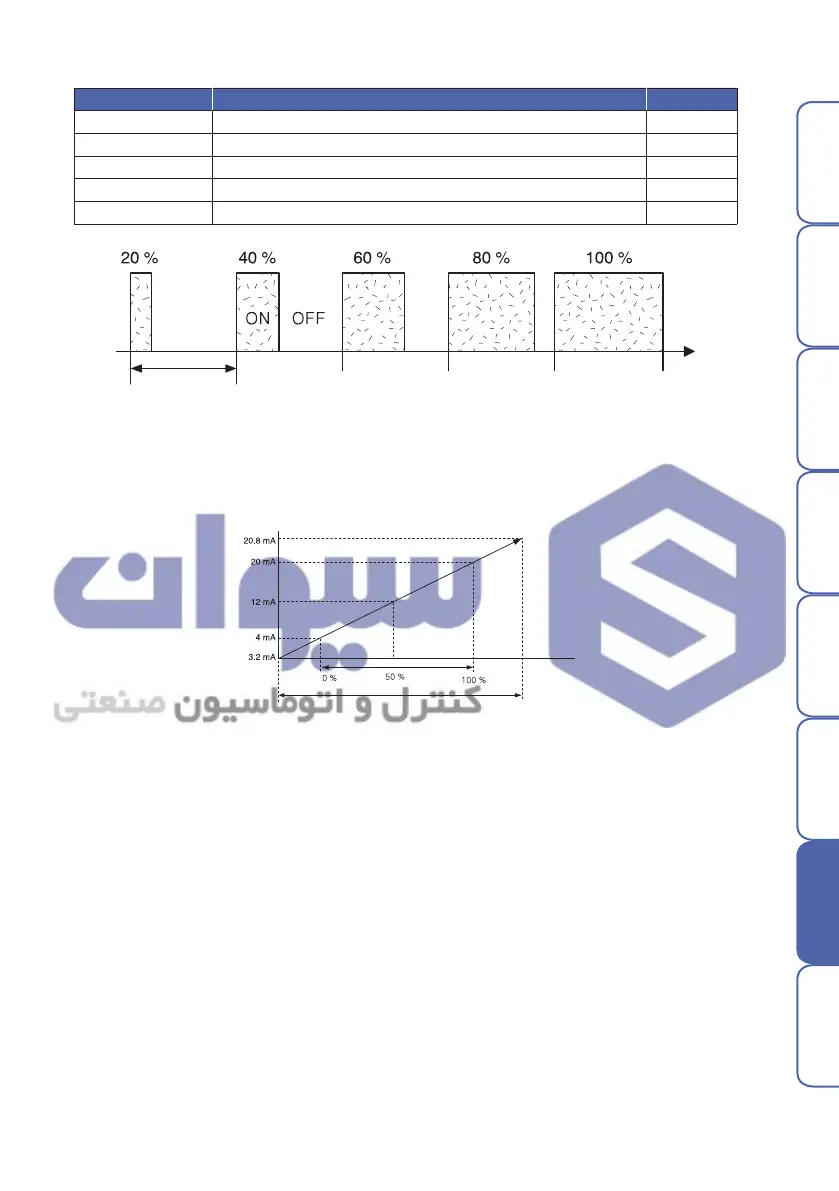

Fig. 69) SSR output operation
Fig. 70) Current output (SCR)
