67
Before starting Installation
Operation
Screen block
diagram
Function setting Program System setting Specifications
1. Set contact type.
- Contact A : DI runs if a DI contact is connected. (Normal Open)
- Contact B : DI runs if a DI contact is disconnected. (Normal Close)
For a DI error, it shows a user-defined image what was uploaded to the internal memory.
If there is no user-defined image in the internal memory, basic image is shown.
1. State display : Upload progress is shown.
2. Upload : Upload selected image files of SD card to the internal memory.
(It can't operate when it is being saved)
▶ Contact type
▶ Error image
An error image must have the resolution of 310X210 and name of Dnn_IMG.bmp
(e.g. D1_IMG.bmp, D12_IMG.bmp). Files must be placed in Caution “TH510\DI_IMG” folder
of root direction of SD card. Otherwise, they are not uploaded.
Caution

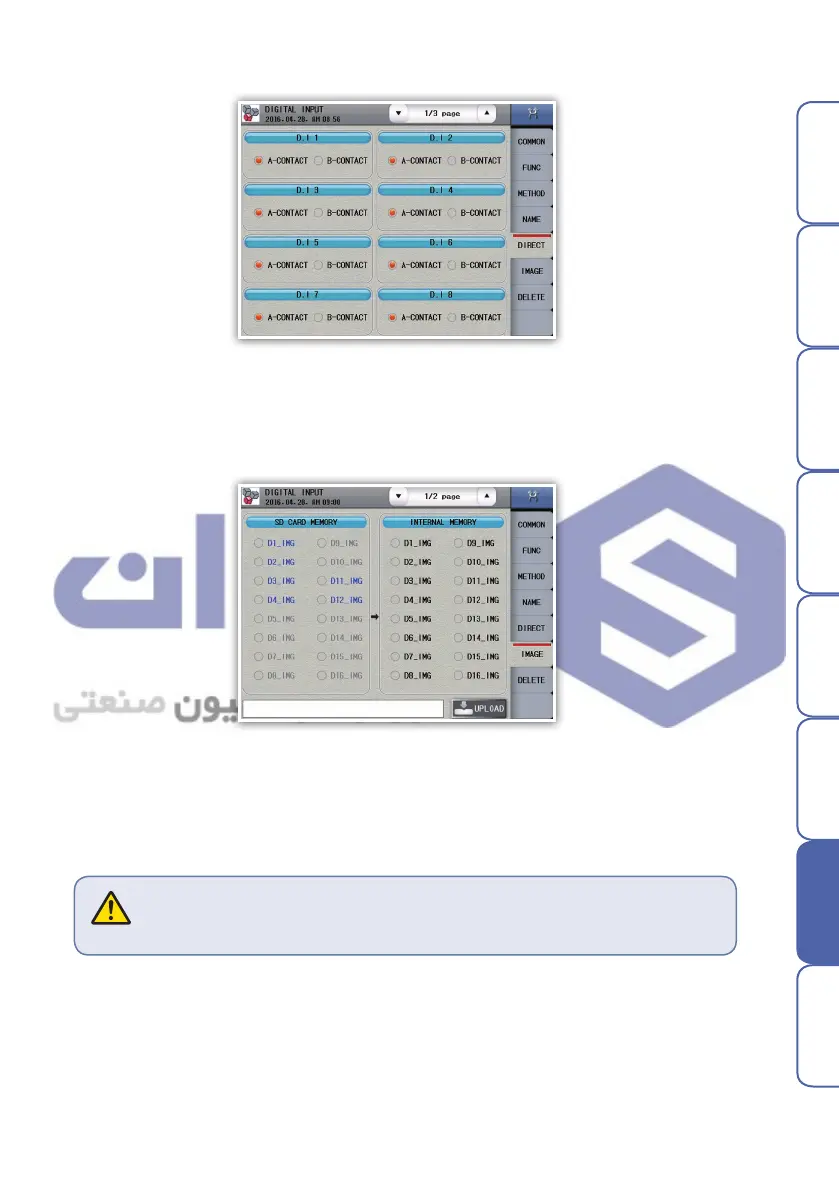

Fig. 102) DI contact type
Fig. 103) DI error image setting
