Hardi Ranger Series User Manual

3.1

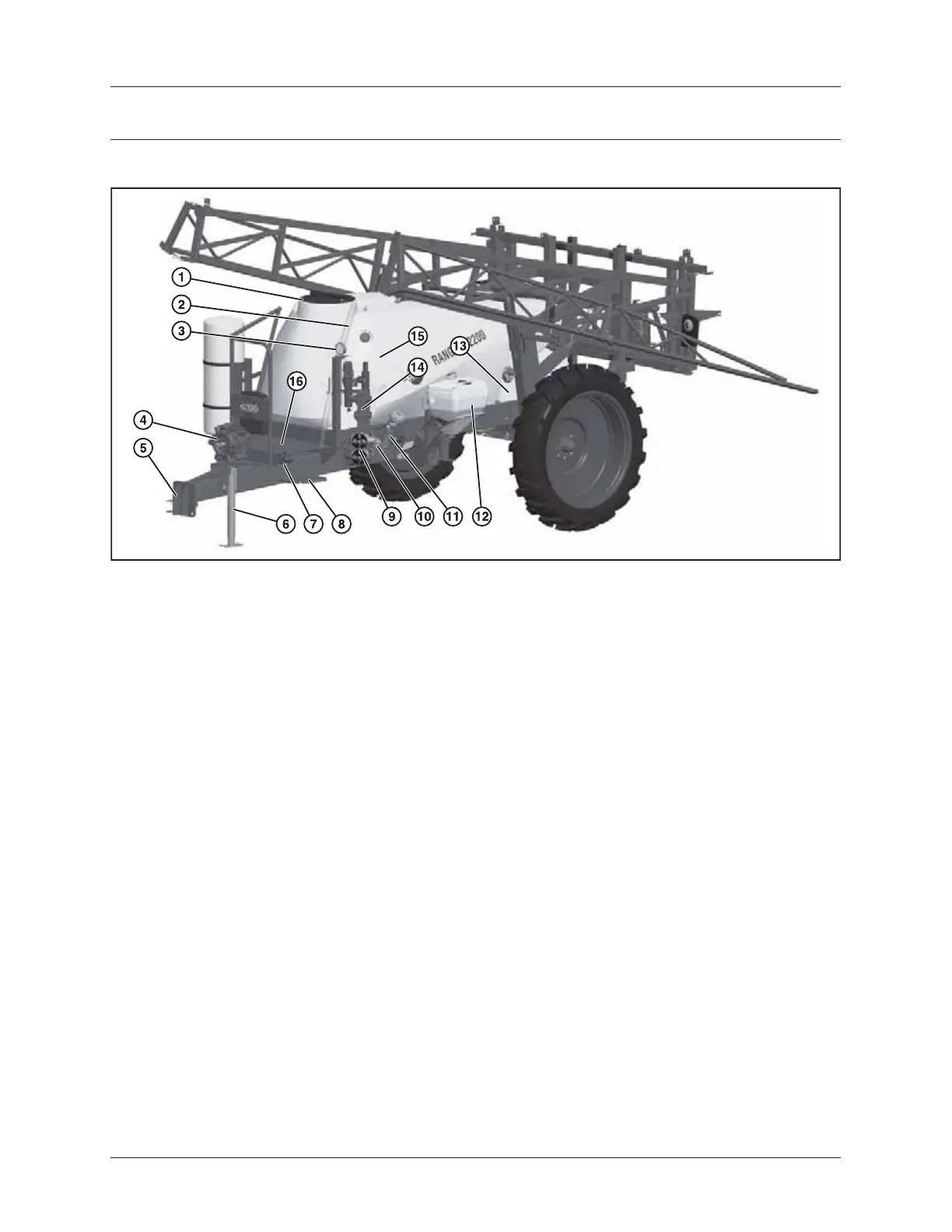

1. Main tank lid
2. Tank level indicator
3. Spray pressure gauge
4. Pump
5. Hitch
6. Support jack
7. Suction filter
8. Step
9. Suction manifold
10. Quick Fill
11. Cyclone filter
12. HARDI® FILLER
13. Flush tank
14. Pressure manifold
15. Clean water tank
16. Platform
View
General info
3 - Description
