4 - Sprayer setup
4.8
WARNING! Securely support the sprayer during axle adjustments. Never attempt to adjust axles with liquid in the
tank. Always block wheels on opposite side when adjusting axles.
A
Track width cannot be altered by turning rim and rim plate. The rim
plate can be fitted left or right. With an offset of :
+ 6”
- 5.5”
Turning rim and rim plate

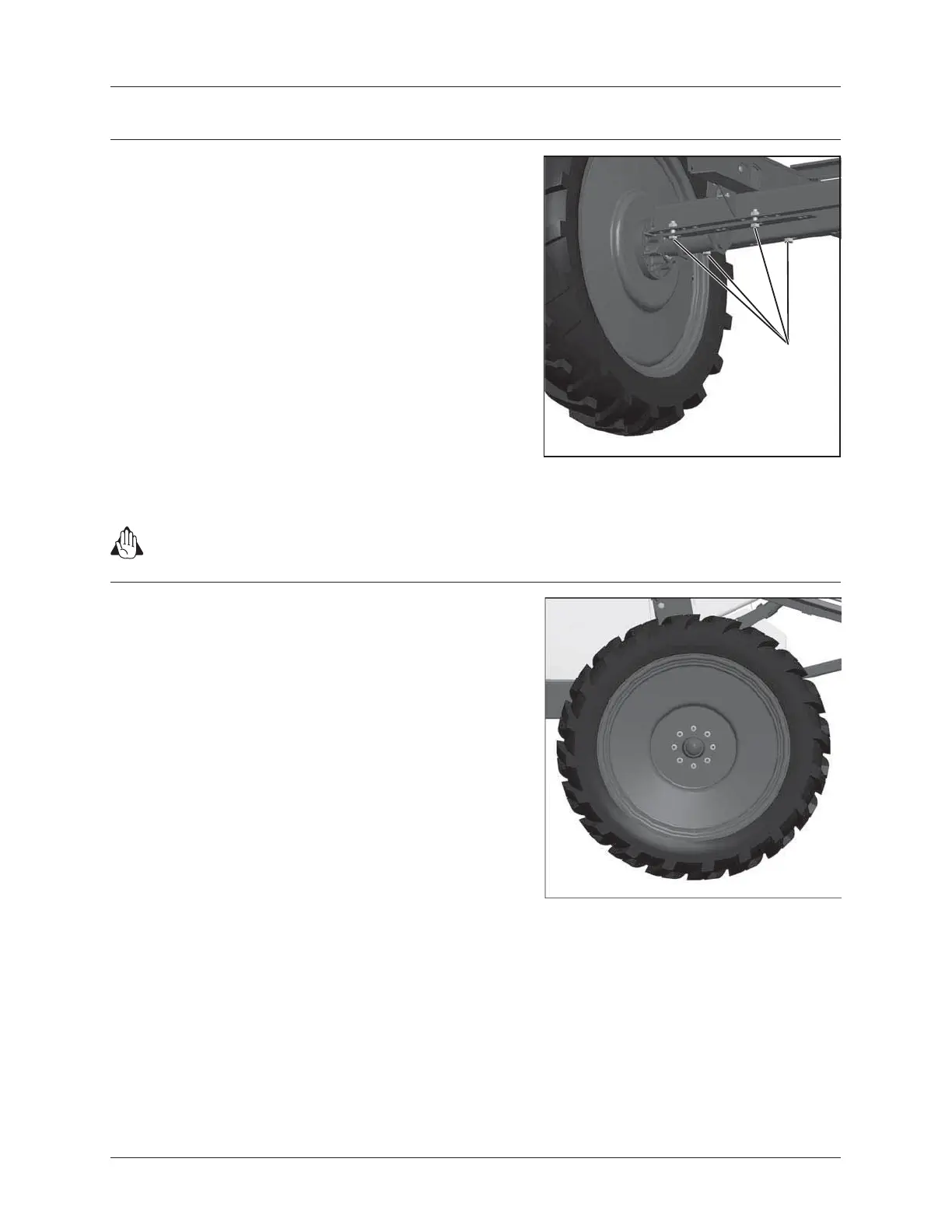

The track width of the RANGER can be adjusted from 60” to 90” in 2”
increments as follows:
1. Measure the current track width (center RH tire to center LH tire).
Each side must be extended or retracted half the desired alteration.
2. Attach the sprayer to tractor and engage tractor parking brake.
3. Place stop wedges in front of, and behind RH wheel. Jack up
frame behind LH wheel, support and secure sprayer body.
4. Remove bolts (A) for LH axle insert.
5. Extend or retract the axle.
6. Replace bolts (A) and tighten to specified torque.
7. Repeat the procedure on RH wheel.
8. Check if the distance from center tire to center of rear frame is
equal at RH and LH.
9. Retighten bolts and wheel bolts to specified torque after 8 hours
of work.
Altering the track width
Track width, axles and wheels
