Hardi Ranger Series User Manual

8.1
ABC
2200 SPB 206 120 112
All measurements are in inches.

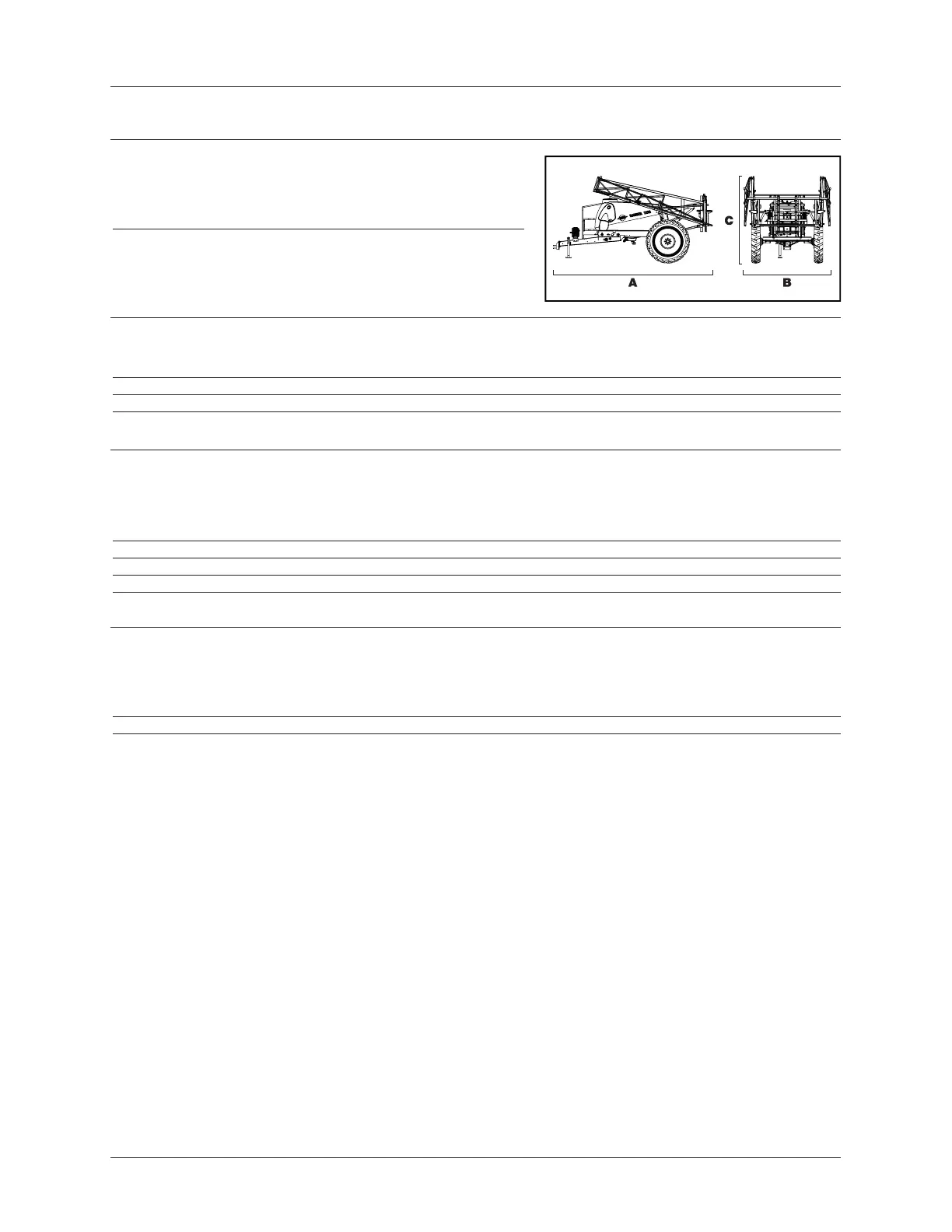

Overall dimensions
Dimensions
8 - Technical specifications
Main tank capacity 1200 gallons (2200 Liters)
Clean water tank capacity 5 gallons (20 Liters)
Flush tank capacity 63 gallons (240 Liters)
Foam marker tank capacity 10, 15 or 20 gallons (38, 57 or 76 Liters)
Specifications
Total DrawbarAxle Per tire
Unfolded empty 1574 39 1535 768
Folded empty 1574 163 1411 705
Unfolded full (water) 4449 831 3618 1809
Folded full (water) 4449 955 3494 1747
All measurements are in pounds.
Weight
Wheel Min. track width Max. track width Clearance*
12.4x24” 60” (1520mm) 90” (2250 mm) 18” (460 mm)
13.6x38” 60” (1520mm) 90” (2250 mm) 24” (610 mm)
*under axle
Wheel and axle dimensions

Hardi Ranger Series Specifications
