3 - Description
3.4
ATTENTION! Only the functions in use should be open - always close remaining valves.
ATTENTION! If a MANIFOLD valve is too tight to operate - or too loose (= liquid leakage) - the valve needs to be
serviced. Please see the section ‘Maintenance’for further information.
Diaphragm pump with easily accessible valves and diaphragms. Model 1303 with 3 diaphragms, 540 r.p.m. (6 splines).
Model 363 or 463 with 6 diaphragms. Standard = 540 r.p.m. (6 splines). Optional = 1000 r.p.m. (20 or 21 splines).
Centrifugal pump, model 206 (hydraulic) or 150 (PTO). Standard = 540 r.p.m. (6 splines). Optional = 1000 r.p.m. (20 or 21
splines).
The valves at the MANIFOLD are distinguished by colored identification discs on the valves. Symbols corresponding to
every possible function of use are located on the discs for easy identification and operation. A function is activated by
turning the handle towards the desired function.
Valves and symbols
Pump

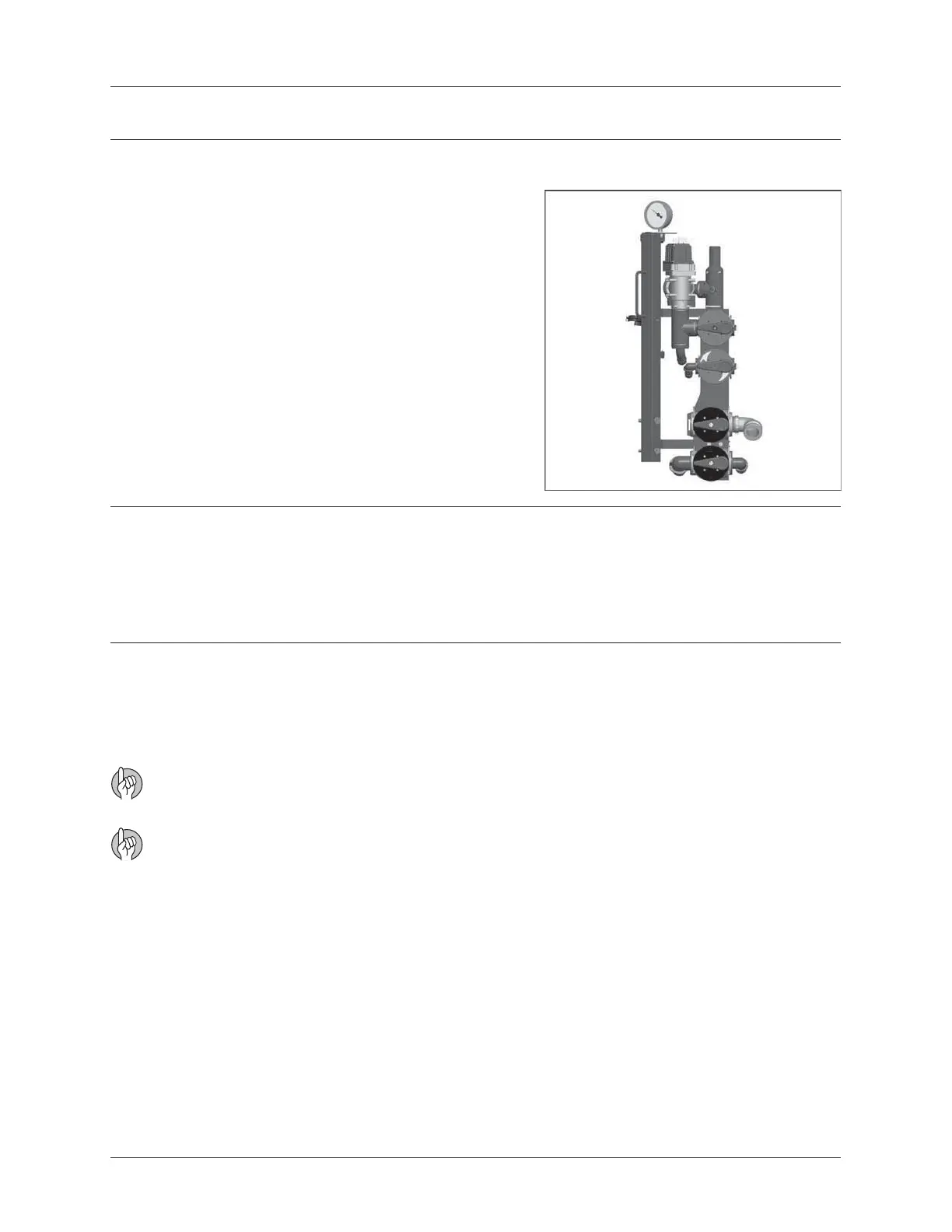

General info - MANIFOLD system
Liquid system
The functions of the spray circuits are operated via the centrally
located MANIFOLD valves with color coded plates and pictorial sym-
bols for easy operation.
The modular MANIFOLD system facilitates the addition of optional
extras on both pressure side and suction side.
