4 - Sprayer setup
4.5
Installation of control unit brackets

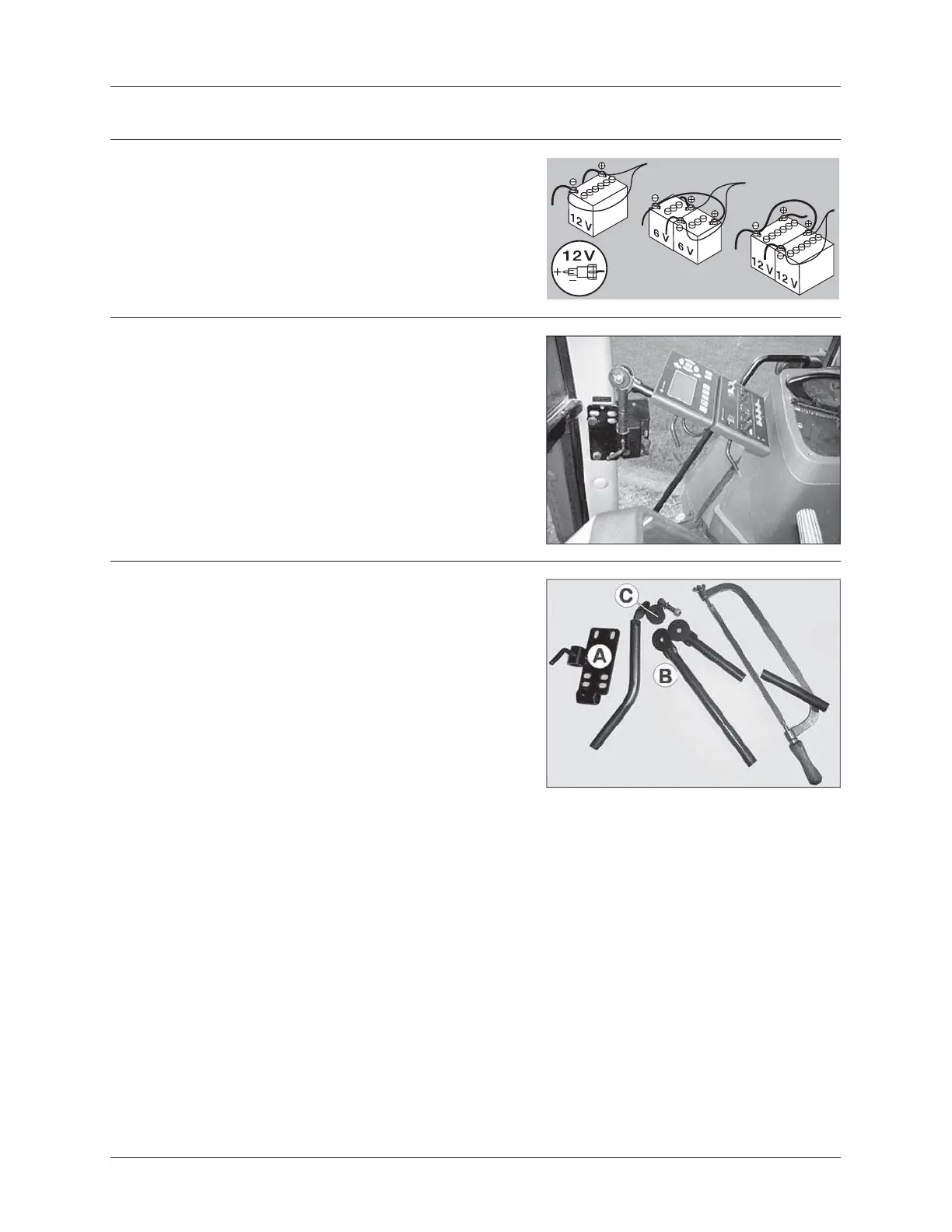

Power requirement is 12V DC. Note polarity! The wires must be at
least 10 awg. (4.0 mm
2
) to ensure a sufficient power supply. For the
operating unit, the tractor circuit should have an 8 Amp fuse. The
supplied power connector is standard on most newer tractors. If
using a tractor with a different power connector, it is necessary to
disassemble connector and attach the wires to the actual tractor
connector.
Control boxes are fitted in the tractor cabin at a convenient place.
The supplied tractor pillar bracket (A) has a hole spacing of 3.9 in.
(100mm) and 4.7 in. (120mm). Check tractor instructions manual for
information regarding attachment points.
Three tubes (B) are supplied. One, two or all 3 may be used. They can
be bent and shortened. A spacer (C) is also supplied to allow further
attachment possibilities. Find the best solution for your tractor or
vehicle.
Tube (B) plate is staggered, so if correctly orientated, all boxes will
line up.
