4 - Sprayer setup
4.6
ATTENTION! Check with your dealer or tractor operator’s man-
ual for the best location to hook up the 12V system.
ATTENTION! Check with your dealer or tractor operator’s man-
ual for the best location to hook up the 12V system.

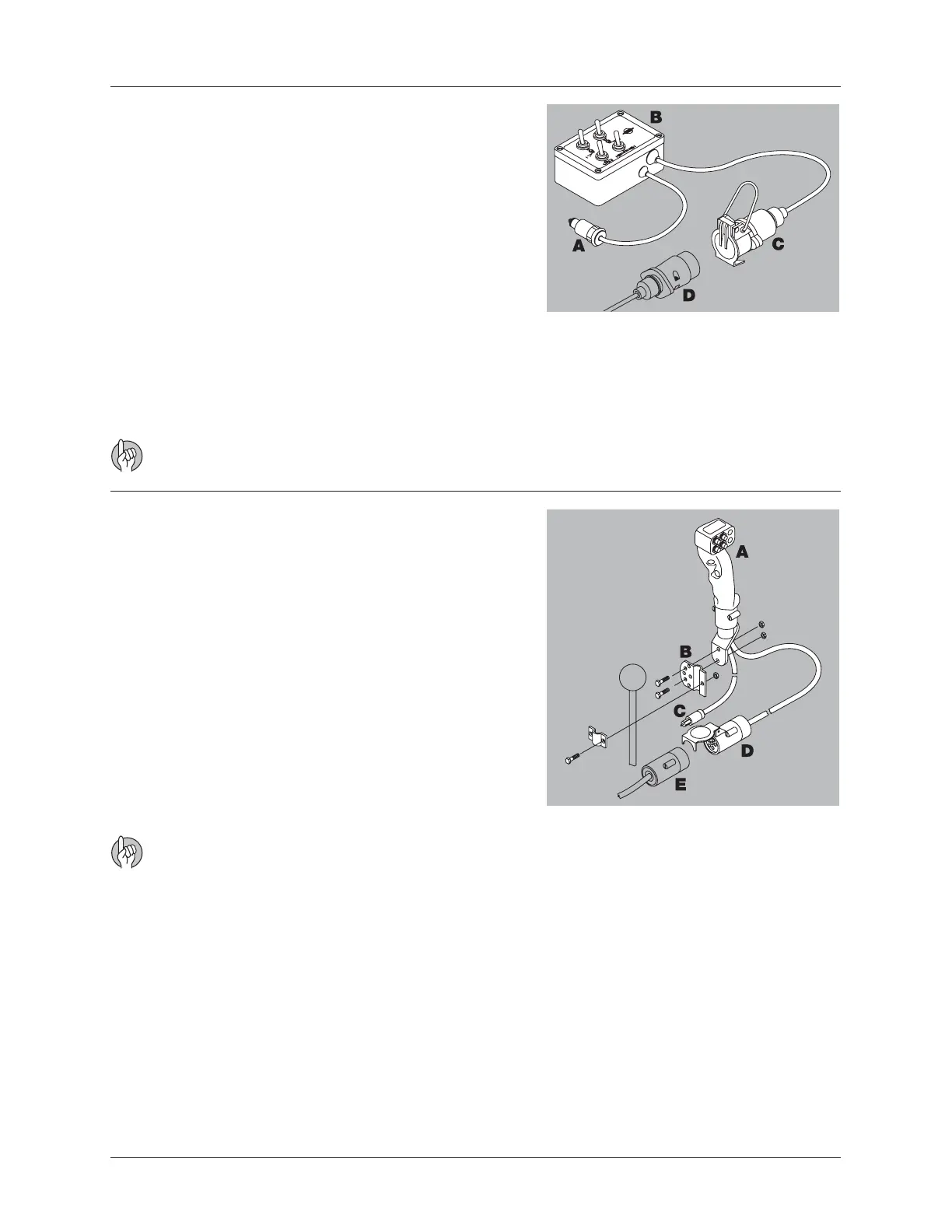

Installation of control box is done as follows:
1. Connect the plug (A) to the tractor’s 12V power system. Try to
hook-up the handle as close as possible to the battery power supply.
HARDI® recommends using an electric distribution box (ref. no.
817925) to ensure a good power supply to various 12V attachments.
Note the polarity to be used:
BROWN wire = Positive (+)
BLUE wire = Negative (-)
2. Route the cable, with the 7 pins, from the hydraulic mount plate
to the tractor.
3. Mount the hydraulic control box (B) in a suitable location in the
tractor cabin.
4. Connect the female 7 pin plug (C) from the switch box to the 7
pin male plug (D) from the sprayer.
Installation of handle is done as follows:
1. Attach the control handle/joystick (A) to the hydraulic lever that
operates the double acting outlet to be used. The universal mount-
ing bracket (B) is very flexible and a number of different mounting
positions can be used.
2. Connect the plug (C) to the tractor’s 12V power system. Try to
hook-up the handle as close as possible to the battery power supply.
HARDI® recommends using an electric distribution box (ref. no.
817925) to ensure a good power supply to various 12V attachments.
Note polarity:
BROWN wire = Positive (+)
BLUE wire = Negative (-)
3. Connect electric plug (D) from sprayer’s hydraulics to plug (E) on
handle.
Installation of joystick handle - Hydraulics (HZ only)
Installation of ‘D.H.’ control unit - Hydraulics (HZ only)
