6 - Maintenance
6.9

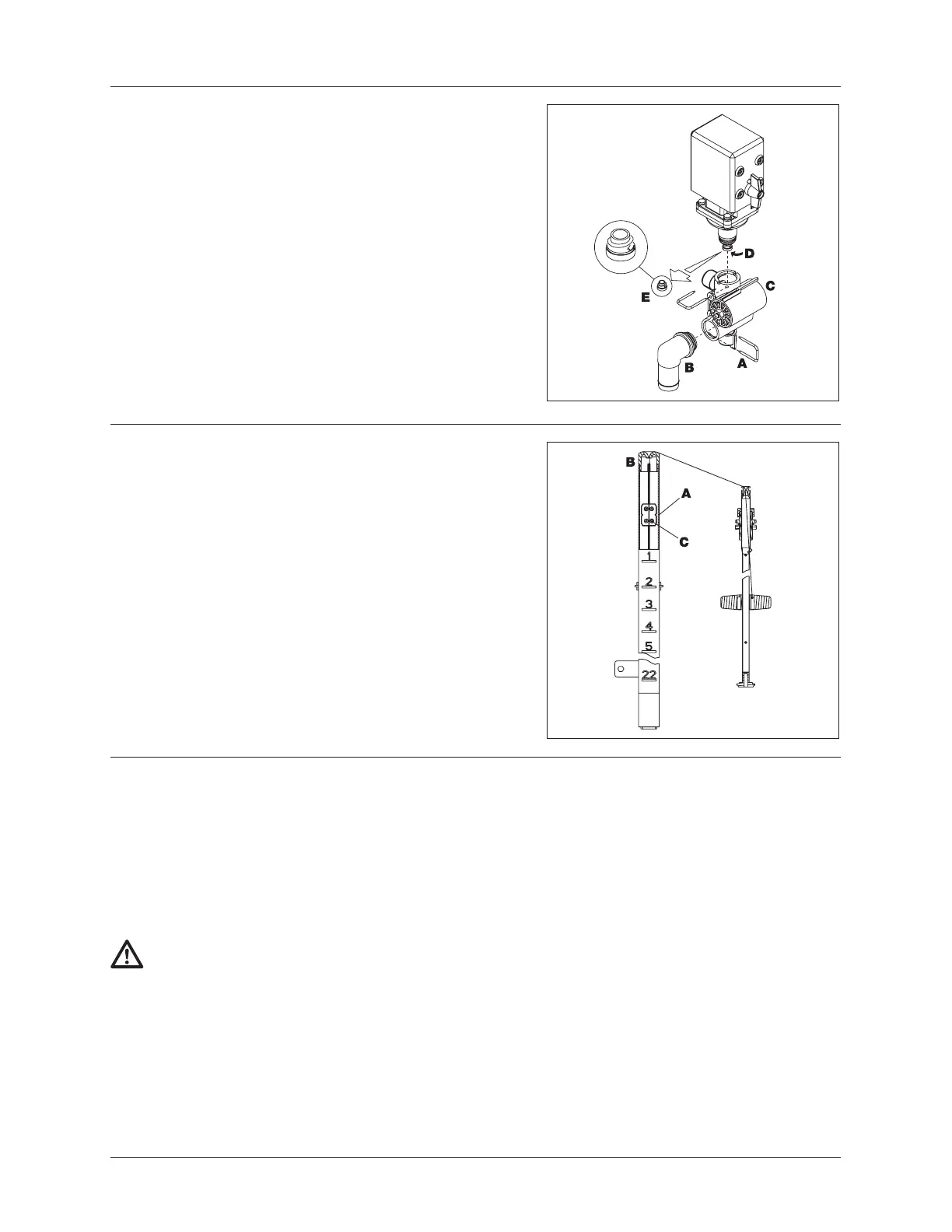

Periodically check the distribution valves for proper sealing. Do this
by running the sprayer with clean water and open all distribution
valves. Cautiously remove the clip (A) and pull out the hose (B) for
the return line. When the housing is drained, there should be no liq-
uid flow through the return line. If there is any leakage, the valve
cone (E) must be changed. Remove the clip (C) and lift the motor
housing off the valve housing. Then unscrew the screw (D) and
replace the valve cone (E). Reassemble in reverse order.
The level indicator reading should be checked regularly. When the
tank is empty, the float should lie on the stop pin, of the rod, and
the O-ring on the indicator should be positioned at the top position
line (A).
If any deviation is found, pull out the plug (B), loosen screws (C), and
adjust the length of the cord.
Level indicator adjustment
Cone check/replacement for EVC distribution valve
DANGER! Do not enter the inside of the tank - the parts can be changed from the outside of the tank!
If the cord on the level indicator has to be changed, the float guide pole is removed:
1. Remove the tank drain valve (see paragraph “Drain valve seal replacement”) and loosen the fitting holding the pole in
position.
2. Pull the pole down through the drain valve hole till it is free in the top of the tank.
3. The pole can now be taken out of the tank through the filling hole.
Level indicator cord replacement
