6 - Maintenance
6.3

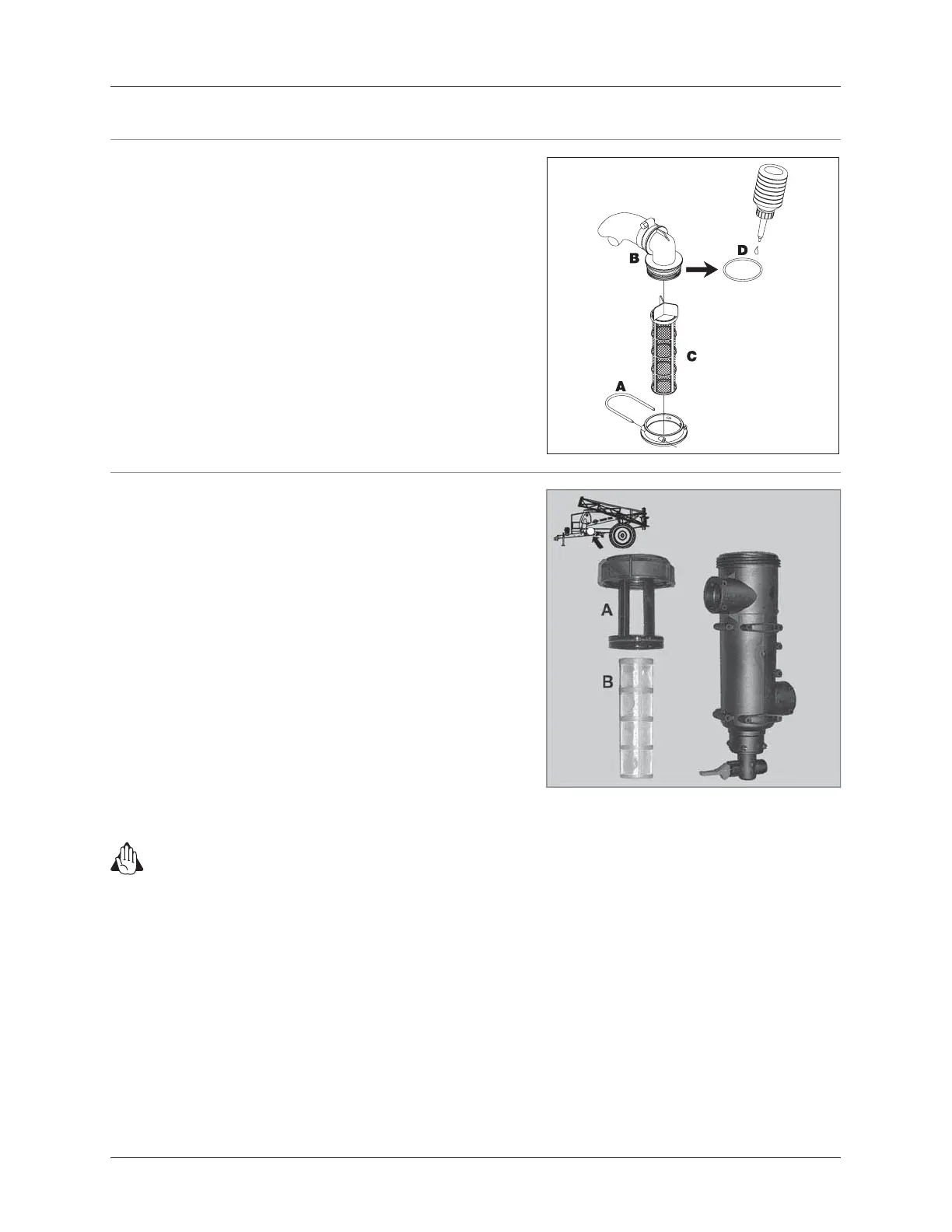

To service the suction filter:
1. Pull out the steel clip (A).
2. Lift the suction hose fitting (B) from housing.
3. Filter guide and filter (C) can now be removed.
To reassemble:
4. Press the guide onto filter end.
5. Place the filter into housing with guide facing up.
6. Ensure the O-ring (D) on the hose fitting is in good condition and
lubricated.
7. Refit the suction hose (B) and steel clip (A).
10 hours service - Suction filter
Service and Maintenance intervals
DANGER! Top Pressure Manifold valve must always be turned
to the unused position before opening the Cyclone filter! If
not, then spraying liquid can hit you when opening the filter
and drain from the tank!
To service the Cyclone filter:
1. Turn top Pressure Manifold valve “Off”.
2. Unscrew filter lid (A).
3. Lift the lid and filter (B) from housing.
4. Separate filter from the integrated filter guide in the lid and clean
the filter.
To reassemble:
1. Grease the two O-rings on the lid/filter guide. Due to small space
at lid for example use a brush to grease with.
2. Mount the filter onto the recess (which may not be greased) in
the lid/filter guide.
3. Place the filter/filter lid into housing and screw the lid until it hits
the stop.
10 hours service - Cyclone filter
