Hardi Ranger Series User Manual

3 - Description
3.6
1. Suction filter (optional)
2. Suction manifold
3. Pump
4. Pressure manifold
5. Agitation
6. Safety valve
7. HARDI-MATIC
8. Cyclone filter (optional)
9. Off/On/Purge valve

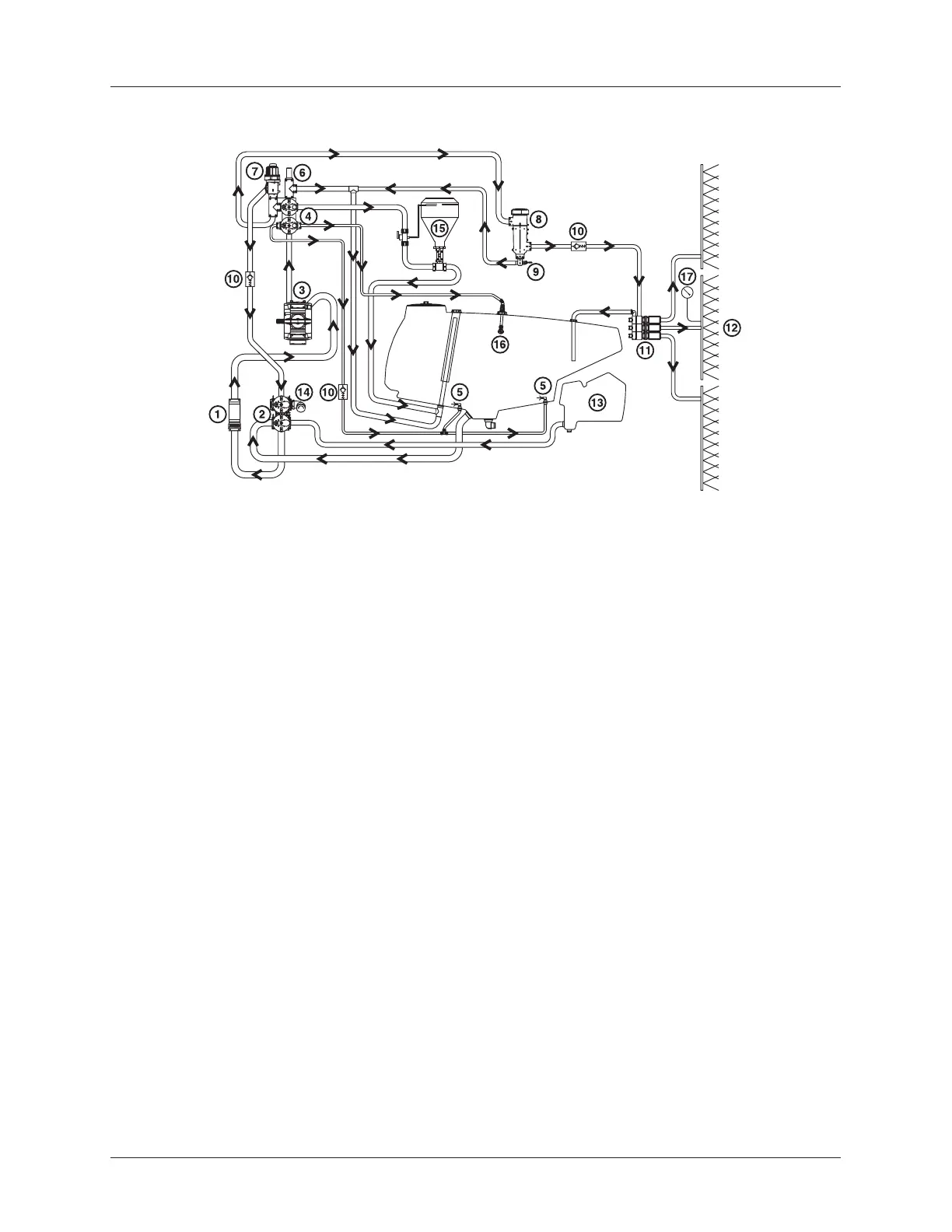

Diagram - Diaphragm Liquid system
10. Check valves
11. Boom section valves
12. Boom
13. Flush tank (optional)
14. Quick fill (optional)
15. HARDI® FILLER (optional)
16. Tank rinse nozzle (optional)
17. Boom pressure gauge
