3 - Description
3.7
1. Suction filter (optional)
2. Suction manifold
3. Pump
4. Pressure manifold
5. Agitation
6. HARDI-MATIC
7. Cyclone filter (optional)
8. Off/On/Purge valve
EVC - Electrical Valve Control. The ON/OFF is linked to the section valves, which results in a very quick response to
ON/OFF. The operating unit is constructed of modules and is electrically controlled via a remote control box. The unit is fit
with built-in HARDI-MATIC.
9. Check valve
10. Boom section valves
11. Boom
12. Flush tank (optional)
13. Quick fill (optional)
14. HARDI® FILLER (optional)
15. Tank rinse nozzle (optional)
16. Boom pressure gauge
Control unit

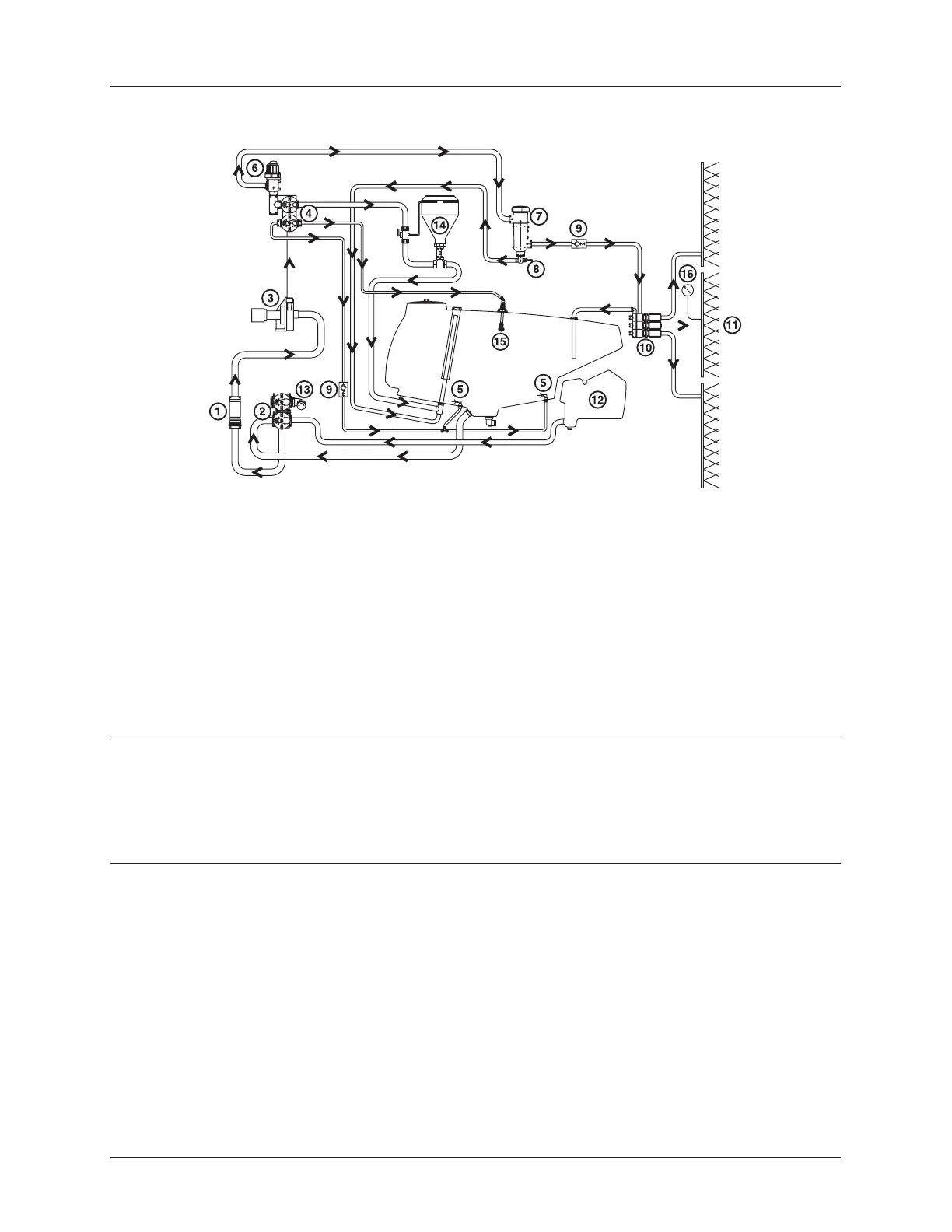

Diagram - Centrifugal Liquid system
Nozzle filters are fitted at each nozzle. In-line pressure filters can be fitted at each section as an option. A suction filter can
also be fitted under the platform.
All filters should always be in use and their function checked regularly. Pay attention to the correct combination of filter
mesh size. The mesh size should always be less than the flow average of the nozzles in use.
Filters
