ATTENTION! If the sprayer is cleaned with a high pressure cleaner, lubrication of the entire machine is recommend-
ed.
BALL BEARINGS:
Universal Lithium grease, NLGI No. 2
SHELL RETINAX EP2
CASTROL LMX GREASE
Always store lubricants clean, dry and cool - preferably at a constant
temperature - to avoid contamination from dirt and condensed
water. Keep oil filling jugs, hoppers and grease guns clean, and clean
the lubricating points thoroughly before lubricating. Avoid skin con-
tact with oil products for longer periods.
Always follow the shown direction concerning recommended quan-
tity. If no recommended quantity is given, feed lubricator until new
grease becomes visible.
Pictograms in lubrication & oiling plans tell the following:
1. Lubricant to be used (see “Recommended lubricants”).
2. Operating hours before next lubrication.
SLIDE BEARINGS:
Lithium grease with
Molybdenumdisulphide or graphite
SHELL RETINAX HDM2
CASTROL MOLYMAX
OIL LUB. POINTS:
TOTAL Transmission TM
SAE 80W/90
Castrol EPX 80W/90
SHELL Spirax 80W/90
Mobil Mobilube 80W/90

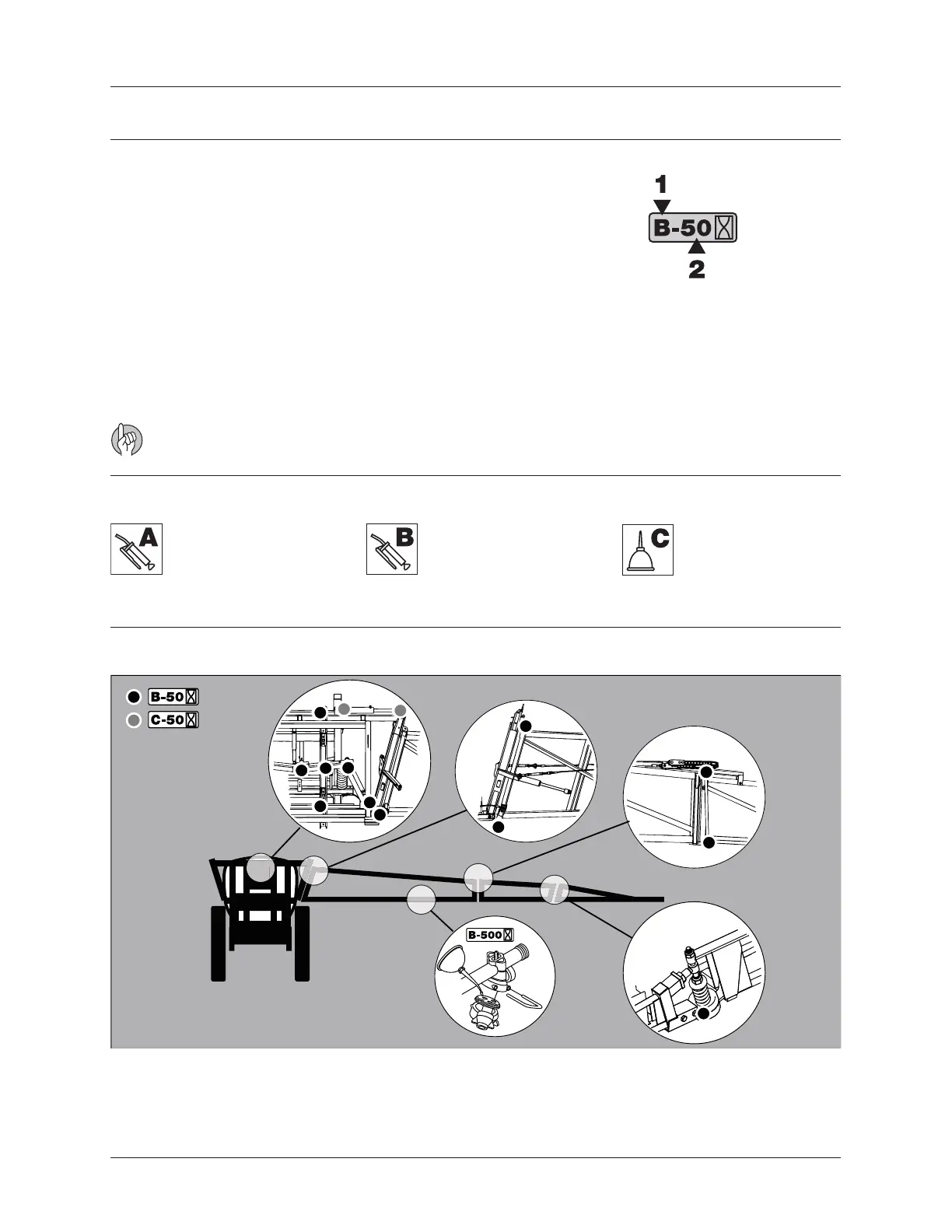

Boom lubrication & oiling plan
Recommended lubricants
General info
Lubrication
