5 - Operation
5.6
DANGER! Avoid contamination or personal injury. Do not turn suction valve towards “Quick Fill” unless pump is
running and filling hose is connected. If this valve is open when the pump is not engaged, liquid can flow out of
the valve.
ATTENTION! Observe local legislation regarding use of filling device. In some areas it is prohibited to fill from open
water reservoirs (lakes, rivers etc.). It is recommended only to fill from closed reservoirs (mobile water tanks etc.) to
avoid contamination.
WARNING! If filling hose/filter is carried on the sprayer during spraying, it can be contaminated by spray drift which
will be transferred to water source when filling!
WARNING! Do not leave the sprayer while filling the tank. Keep an eye on the level indicator in order NOT to over-
fill the tank.

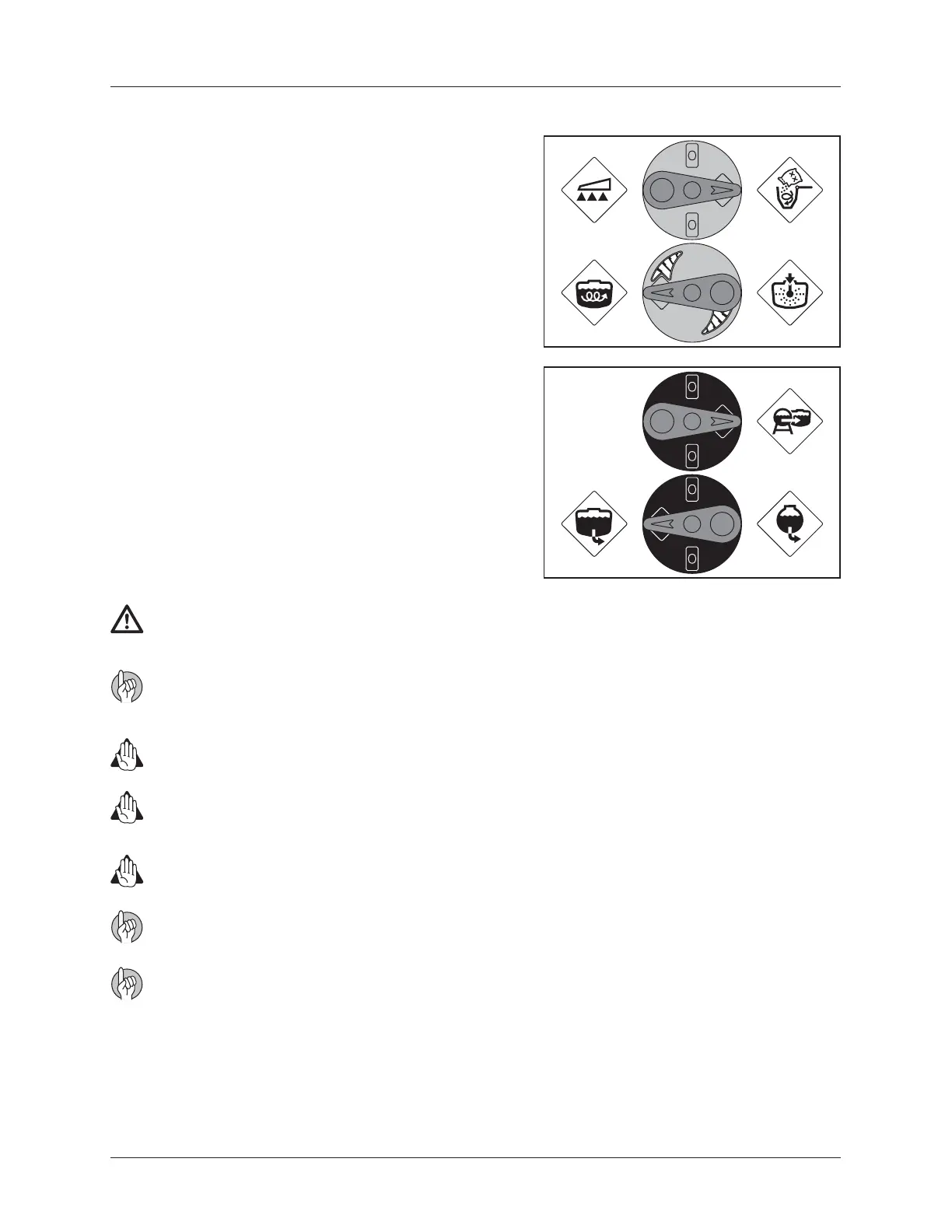

The Suction Filling Device is operated as follows:
1. Remove plug from Quick Fill coupler and connect filling hose
from water supply.
2. Make sure bottom Suction Manifold valve is turned to “Main Tank”.
3. Turn top Pressure Manifold valve to “HARDI® FILLER” if equipped.
Otherwise turn to “Spray” with control unit turned “Off”.
4. Engage pump and set to operating r.p.m. (540/1000).
5. Turn top Suction Manifold valve towards “Quick Fill” function.
6. Water will be drawn from the water supply. Fill tank to desired
level. Keep an eye on the level indicator.
7. Chemicals may be added to the HARDI® FILLER (optional) while
using the suction filling device. Follow directions in sections “Filling
Liquid chemicals by HARDI® FILLER” or “Filling Powder chemicals by
HARDI® FILLER”.
8. Turn top Suction Manifold valve “Off” to discontinue filling process.
Then disengage pump.
9. Disconnect filling hose and replace Quick Fill plug.
Suction filling device (optional - main tank only)
ATTENTION! For centrifugal pump systems, there must be enough liquid in the main tank to prime the pump
before using the suction filling device.
WARNING! Never turn the bottom suction valve to “Flush Tank” while using the Suction Filling device. The Flush
Tank cannot be filled using the pump, and contamination of the Flush Tank could occur if pump isn’t engaged.
ATTENTION! Once water has started flowing from the water supply, the bottom Suction Manifold valve may be
turned off for faster filling, but must be turned back to “Main Tank” before closing the Quick Fill valve.
