HAWEKA Wheel Alignment –AXIS4000
37
Front axle measurement

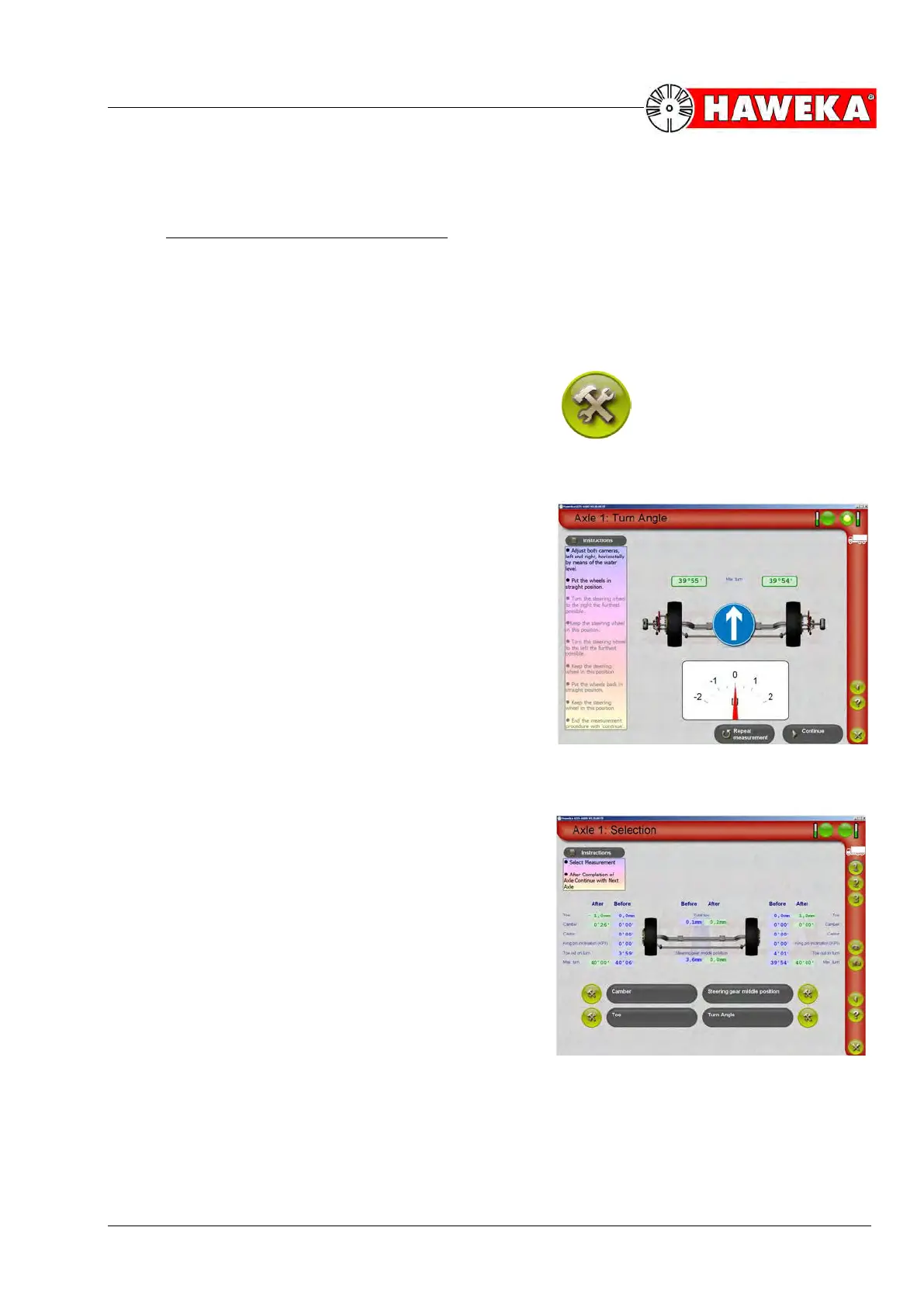

9.7.1 Adjusting the maximum turn angle
If the measured angle difference between the maximum turn angle for left and right is outside the
permitted tolerance, the maximum turn angle can be adjusted using the adjust button and with the
aid of the analogue and digital display.
• To do this, select the adjust button next to the turn
angle selection.
• Before beginning measurement, each camera must
be aligned horizontally using a spirit level.
• The turning lock can now be adjusted on the vehicle.
(Fig. 63)
Usually the left turn angle is adjusted on the left side of
the vehicle and the right turn angle is adjusted on the
right side of the vehicle.
Use the Repeat measurement button to repeat this
stage in the program until the desired turn angle is ad-
justed.
The Continue button changes the program back to the
overview screen for the selected axle and displays the
newly measured values in the AFTER column.
(Fig. 64)
(Fig. 64)
(Fig. 63)
