13 Trailers and articulated trailers
If the AXIS4000 is only available in a basic
version, then you will require an upgrade kit to
measure truck trailers and semi-trailers.

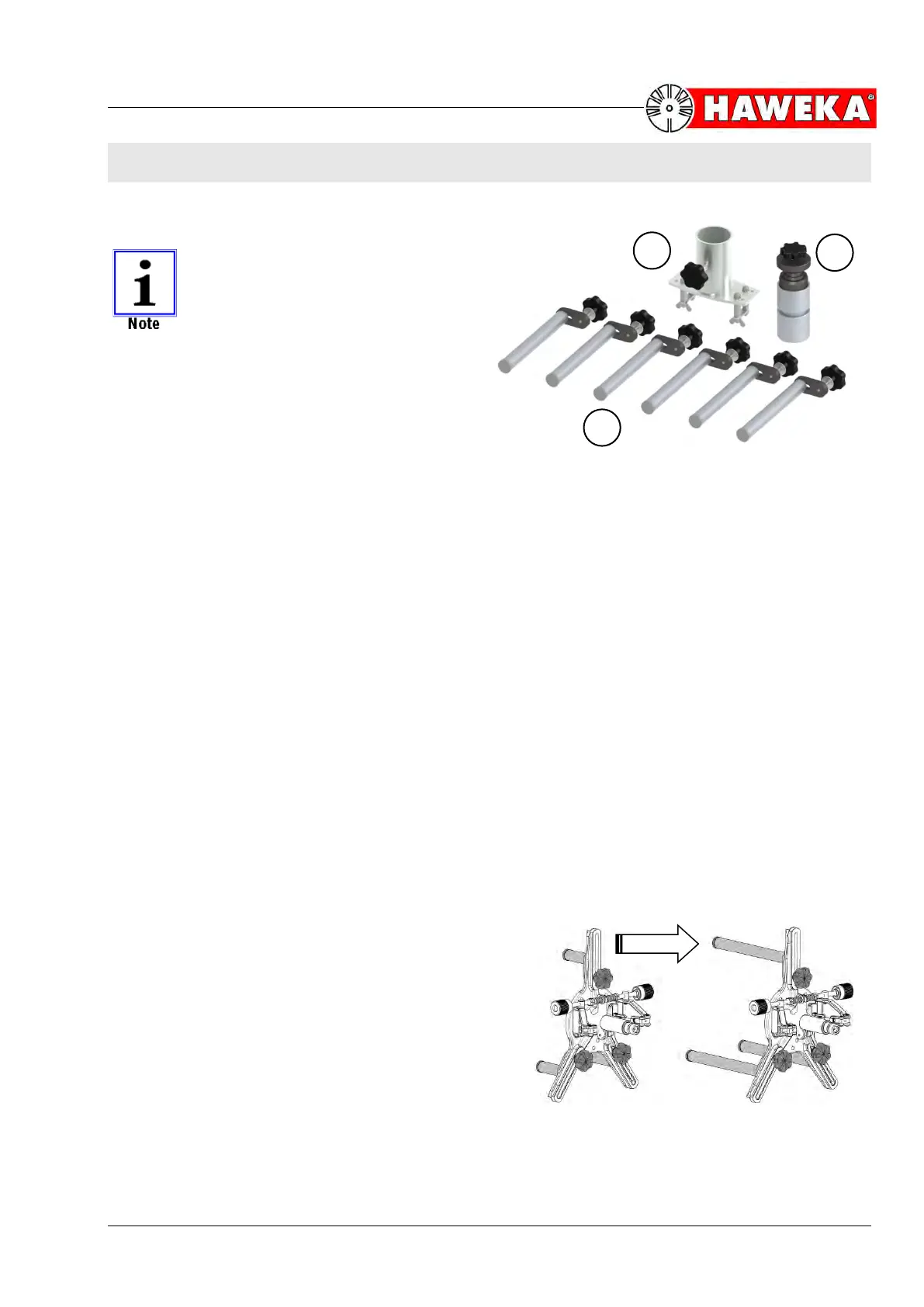

(Fig. 90)
The upgrade kit for measuring trailers and articulated trailers, Item No. 923 000 001
comprises:
A.) 1 x king pin adapter Ø 2" Item No. 923 001 041
B.) 1 x coupling ring/trailer drawbar adapter Item No. 913 024 001
C.) 6 x magnetic feet, 265 mm long (1 piece) Item No. 913 029 012
The extension is used solely for measuring the total toe, single toe left/right,
camber left/right and for determining the axle inclination and axle mismatch for articulated trailers
and trailers in combination with the AXIS4000 basic version.
13.1 Preparatory measures for measuring articulated trailers
In order to be able to position the measuring heads against the vehicle wheels of the trailer, the
magnetic feet on the 3-arm stars of the wheel alignment clamp may have to changed.
• Loosen the knurled screws and replace the magnet-
ic feet with the 265 mm long magnetic feet.
(Fig. 91)
• Fit the wheel alignment clamp as usual to the vehi-
cle wheel of the trailer axle to be measured.
(Fig. 90)
C
A
B
(Fig. 91)
