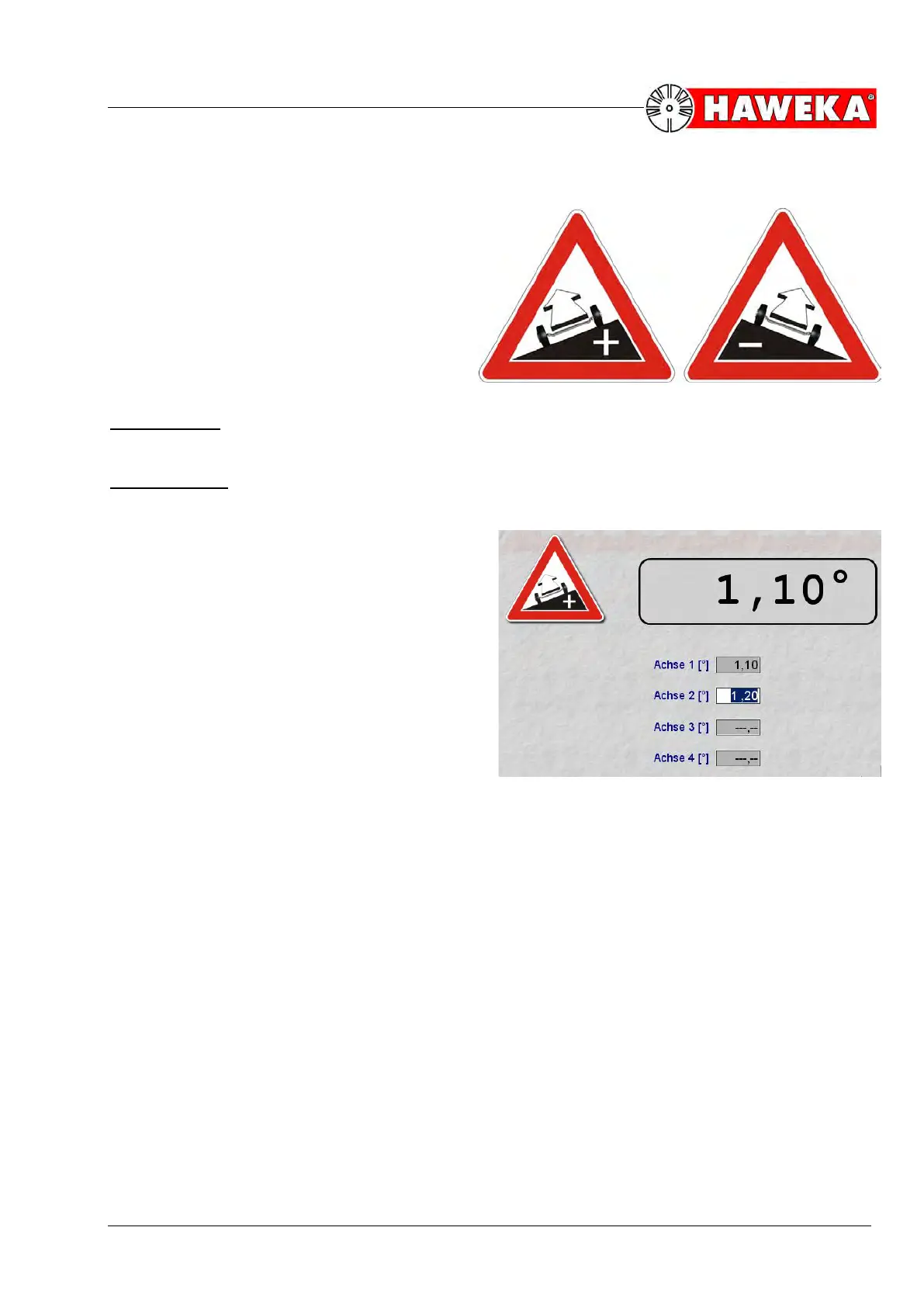

Floor inclination
A positive or negative amount can be shown for
the floor inclination depending on the situation.
(Fig. 121)
Positive value:
The right wheel is higher than the left when viewed in the direction of travel.
Negative value:
The left wheel is higher than the right when viewed in the direction of travel.
If you already know there is floor inclination (as
measurements are often carried out at the same
place), then the values can be entered manually
and directly for each axle.
(Fig. 122)
After measuring floor inclination for all axles,
press the "Continue" button.
The program changes back to the vehicle data
screen for the selected vehicle and the meas-
urement can be conducted in the normal se-
quence.
