PME-MP85
A0897−3.4 enHBM
4 MP85/MP85DP mounting/disassembly
(schematic diagrams)

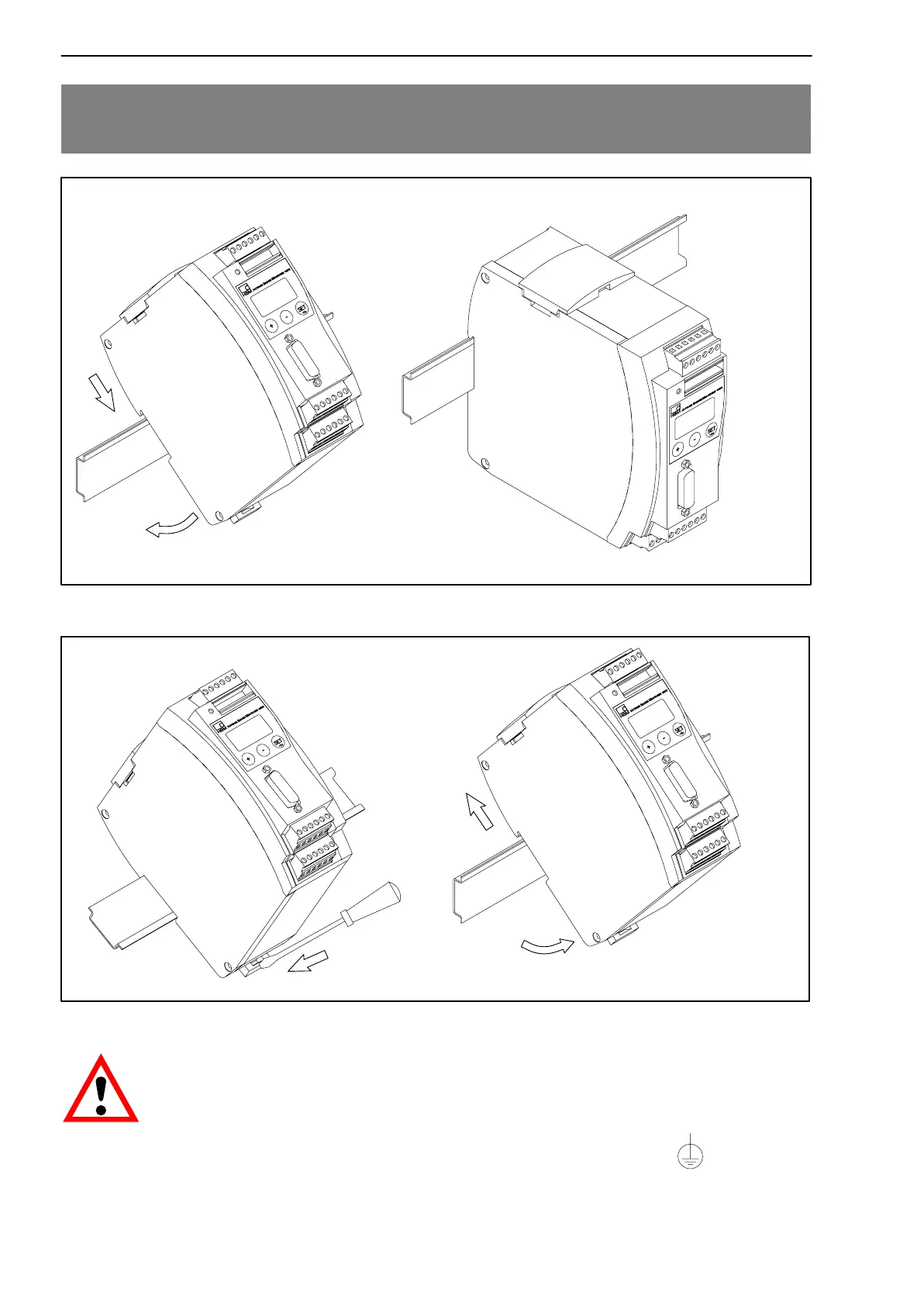

Fig. 4.1: Mounting on a support rail
Fig. 4.2: Disassembly
CAUTION
The support rail must lie on protective-conductor potential .
