6.2 Transducer test

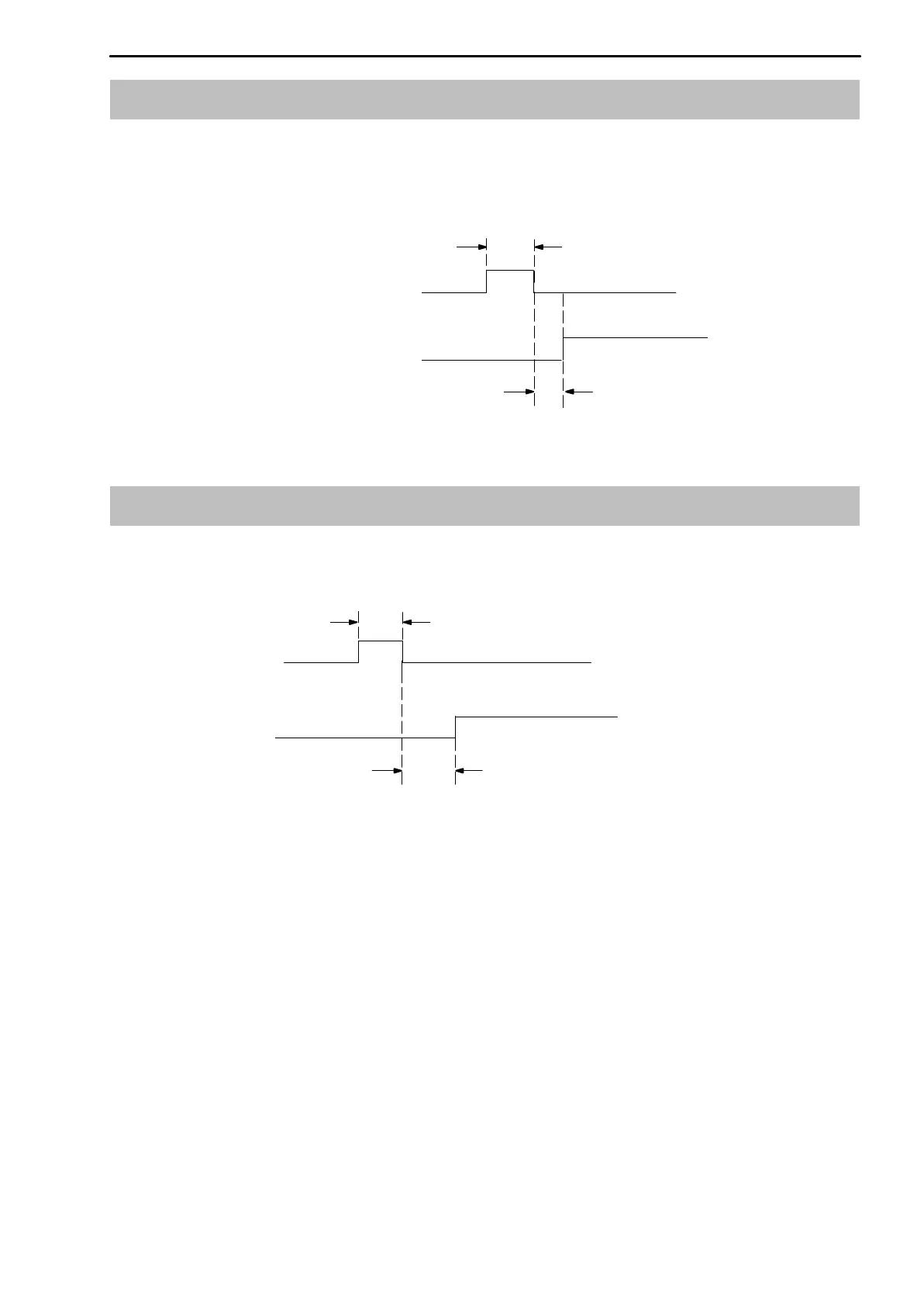

Transducer test timing diagram
Input
Transducer test
0
1
typically 10 ms
Output transducer test result
min. 5 ms
6.3 Zero balance
Zero balance timing diagram
Inputs
Input
START
0
1
min. 5 ms
Zeroing
Settling time e.g. for
100 Hz filter: 20 ms
