5.4.2 Active encoders
In “incremental encoder, SSI transducer or direct voltage encoder” mode, the
following transducer types can be connected:
Pulse counter, incremental transducer (symmetric signals)
Transducers with SSI interface (symmetric signals)
Ground
Cable shield
Zero index, Ix (+)
Zero index, Ix (−)
Supply voltage +5 V/+24 V
f1, 0
o
f2, 90
o
Measurement signal F1 (+), 0°
Ground
7
6
f1, 0
o
f2, 90
o
Ground
Cable shield
7
6
Hous.
Supply voltage +5 V/+24 V
MP85DP
1
5
3
4
2
8
Measurement signal F1 (−), 0°
Measurement signal F2 (+), 90°
Measurement signal F2 (−), 90°
Clock, Cl (+)
Data, D (+)
5
3
8
Clock, Cl (−)
Data, D (+)
1
5
3
DC voltage sources ("10V)
Hous.
U
Measurement signal (+)
Measurement signal (−)
Cable shield
MP85
Hous.

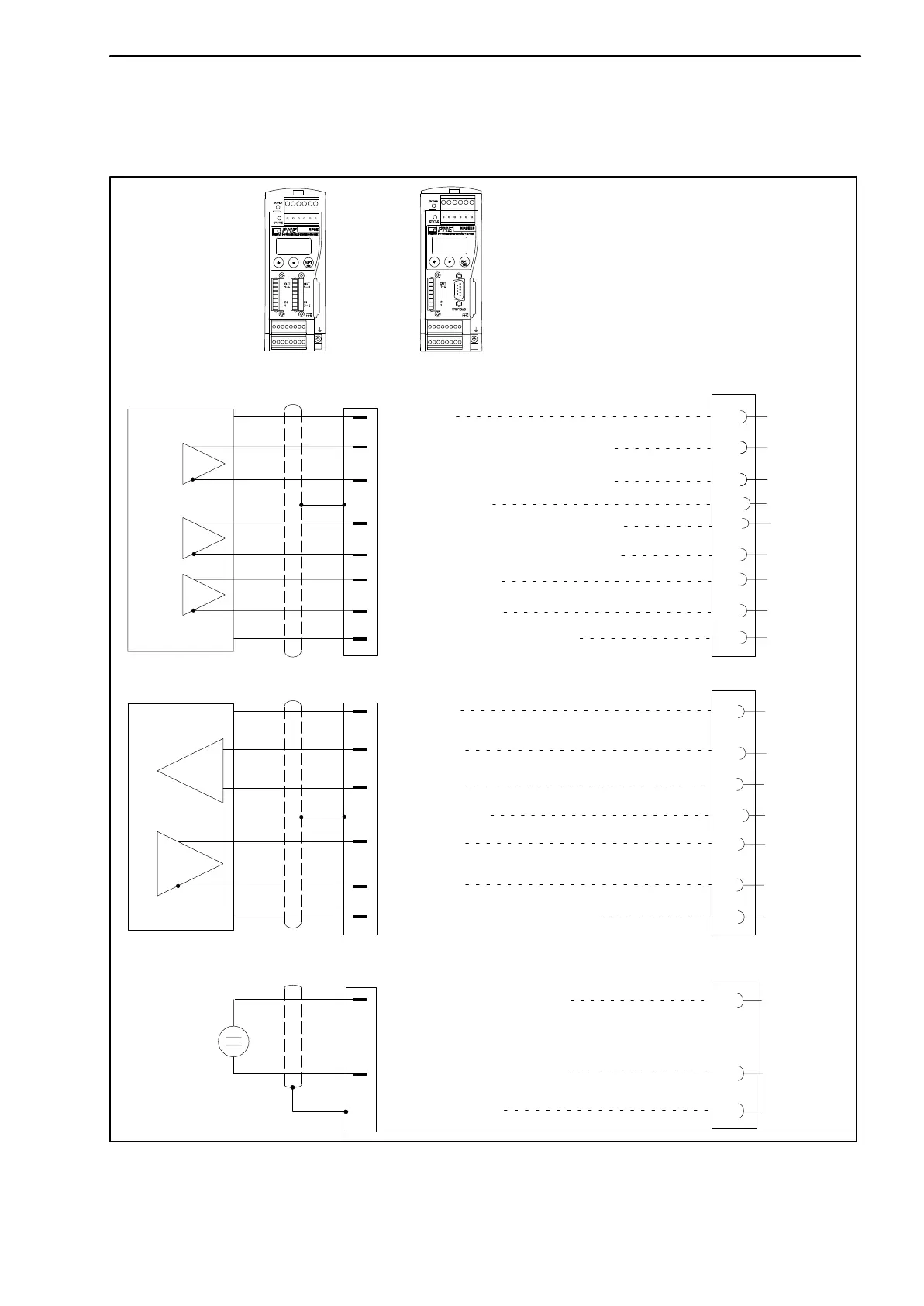

Fig. 5.5: Connecting active encoders
