1 Introduction
1.1 Scope of supply and accessories
Scope of supply:
D 1 module MP85 or MP85DP
D 4 plug−in type screw terminals, coded
1x CAN, 6−pin Order no.: 3.3312−0250
2x transducers, 8−pin Order no.: 3.3312−0299
1x I/O 1, 8−pin Order no.: 3.3312−0301
in addition, for MP85:
1x I/O 2, 8−pin Order no.: 3.3312−0301
D ribbon cable connector 10−pin
D 1 Operating Manual module MP85/MP85DP
Accessories:
D multimedia card (MMC), e.g. Sandisk (www.sandisk.com)
D standard ribbon cable, 10−pin, grid 1.27 mm
1.2 General
The MP85/MP85DP module from the PME product line is a two−channel
measuring amplifier suitable for connecting the transducers of a great variety
of technologies. In the case of the MP85DP, there is also a Profibus interface
available for CAN-Interface.
µP
A
D
Intelligent signal conditioning
and powerful algorithms for
press-fit monitoring
Keyboard &
display
Carrier-frequency
excitation voltage 4.8 kHz
Voltage supply,
electrically isolated
Profibus DP
interface
(for MP85DP)
A
D
MMC memory
card
Supply for active transducer
5V or 24V
SSI
"10V
CANopen
interface
MP85 / MP85DP
Control inputs and
control outputs
24 V

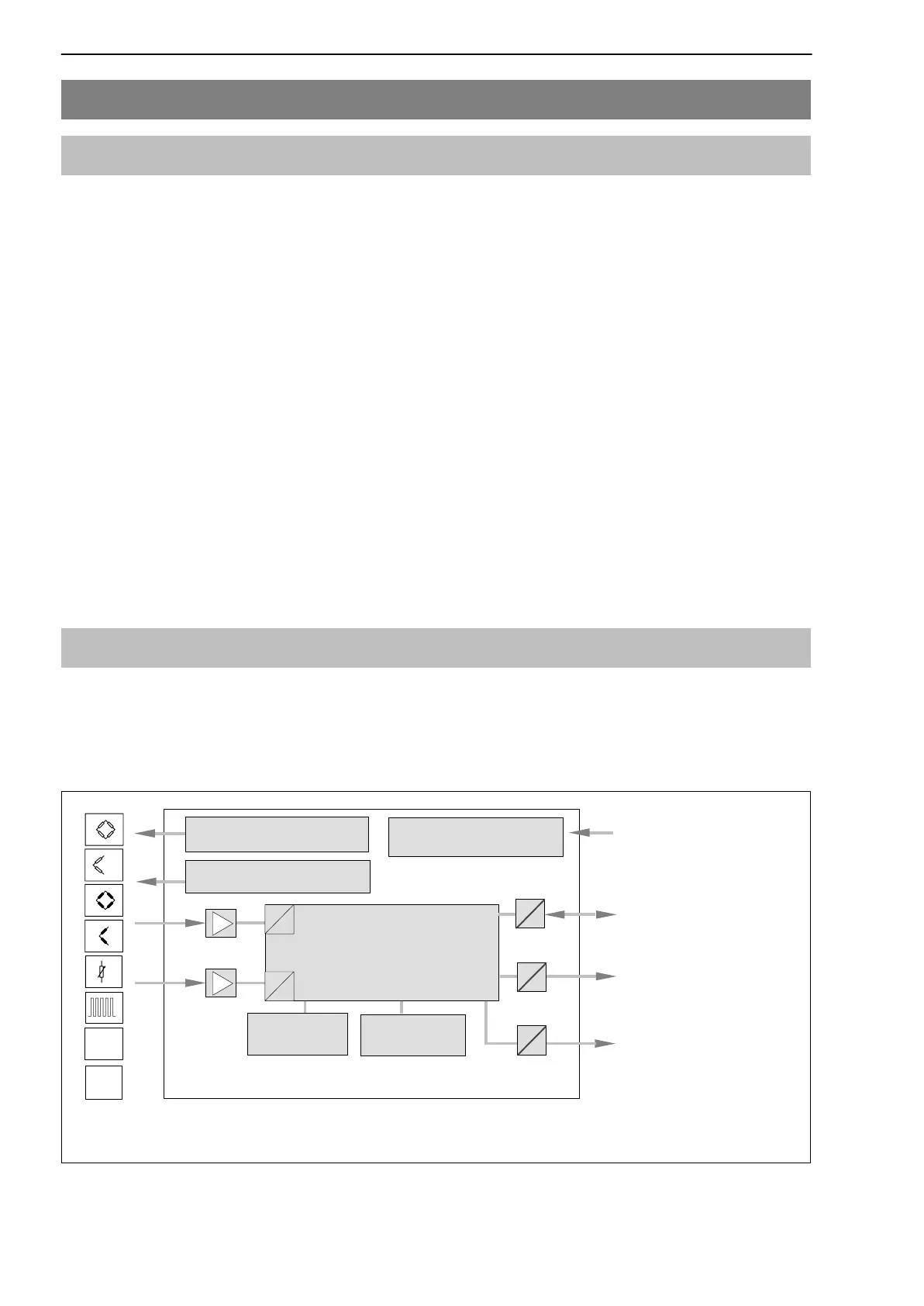

Fig. 1.1: Block diagram of the MP85/MP85DP module
