HBM MP85 - 6 Communication with the Control System; Timing of the Test Operations

37
PME-MP85
A0897−3.4 en HBM
6 Communication with the control system
All the diagrams relate to a positive logic.

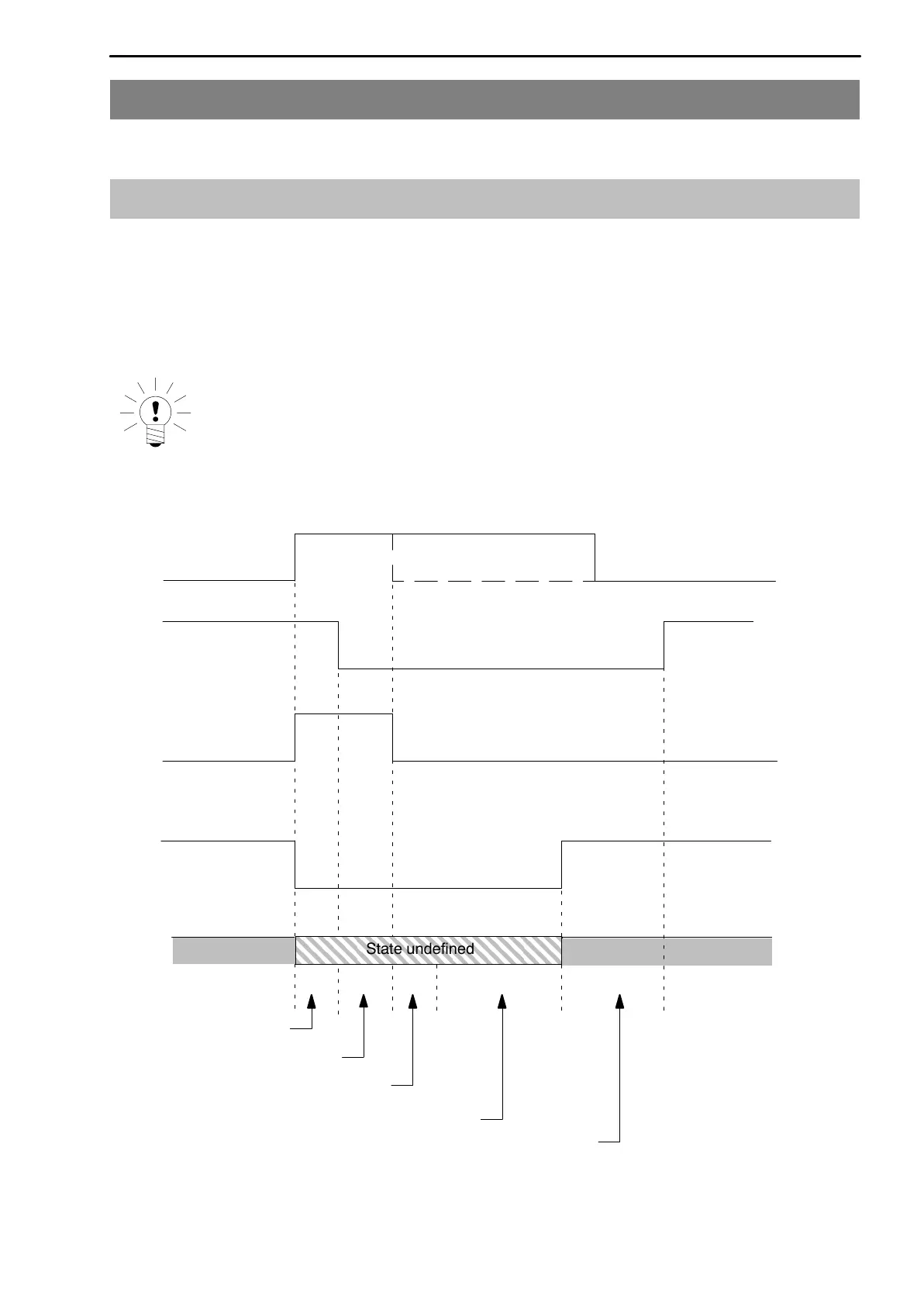

6.1 Timing of the test operations
a.) Storing curves and results without data loss
The below diagrams apply, if you choose the “without data loss” storage me-
thod and want to save curves and/or results on the MMC or externally via
CAN. The READY signal is not reset to 1 until the device is ready to save data
for the next process.
NOTE
Before starting a new measurement, the READY bit must have been re-
set to 1.
Once the evaluation time
has expired, you can
read off result 0 or 1 at
the output.
Only if “Result valid” = 1,
the process result (Pro-
cess in order) is valid.
Start/Stop Input
Ready
Running
Result valid
Process in order
Initialisization typ. 25 ms
Data acquisition running
Time until stop
Offline evaluation
External stop
External stop or end condition
occurred
Data storage
The READY signal is
not reset to 1 until
there has been an
external stop.
ÈÈÈÈÈÈÈÈÈÈÈÈ
ÈÈÈÈÈÈÈÈÈÈÈÈ
State undefined
