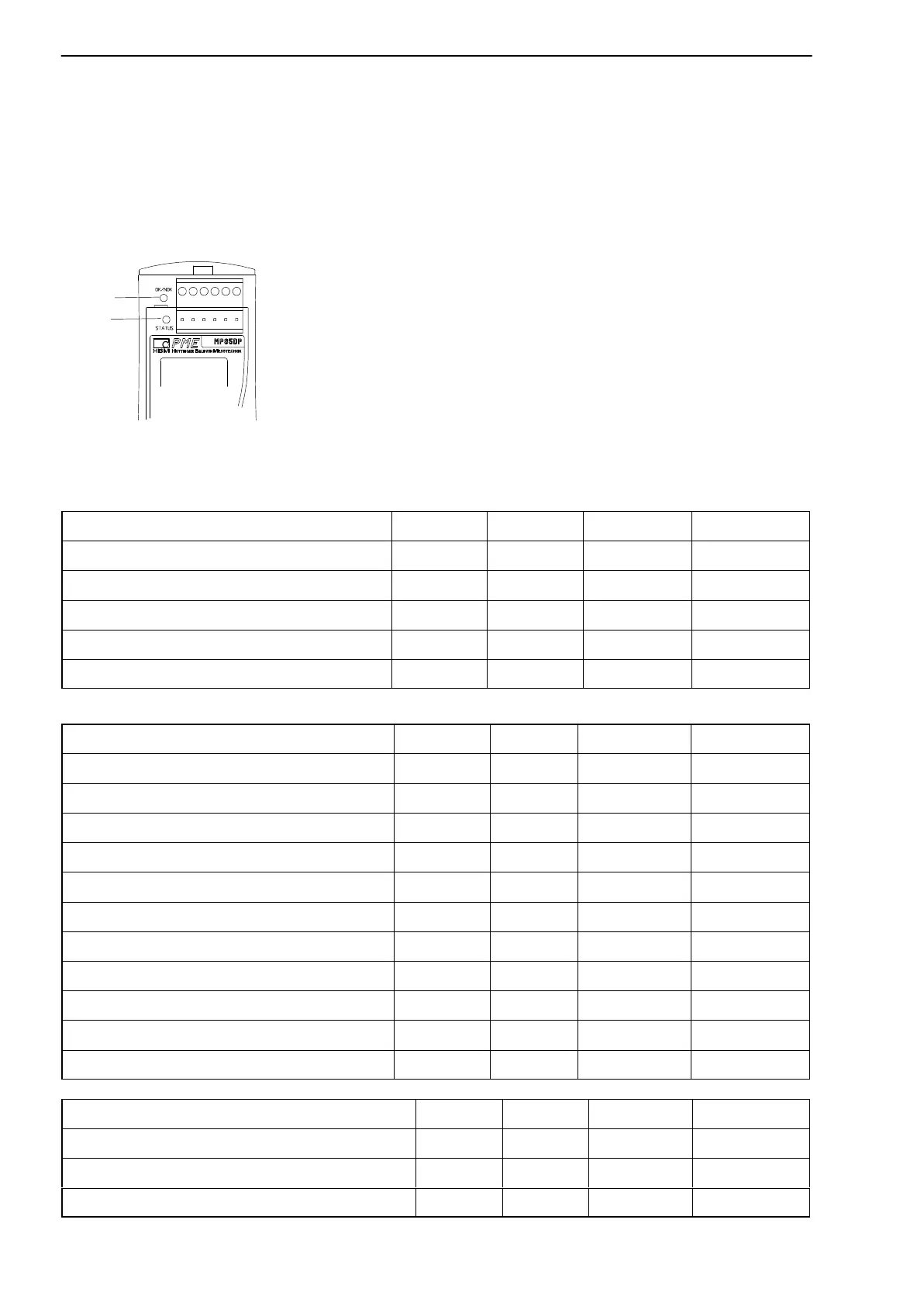

Operating status MP85 / MP85DP:
The LEDs show the operating status (ready to take measurements, overflow
etc.) of the device.
With the MP85DP, however, the Profibus status is displayed instead of the
CAN status (as is the case with the MP85).
LED 1
LED 2
Operating status:
LED1 (OK / NOK)
Operating status LED Red LED Yell LED Green LED Flashes
Initialization during start-up x
Alarm x x
Process starts x x
OK x
Not OK x
LED2 (Status)
MP85 LED Red LED Yell LED Green LED Flashes
Initialization during start-up x
EE_InCalErr x
CANOFF x
No synchronization signal x
Scale error x
MMC error x
Overload x x
LCD Err x x
CAN communitation x x
PreOperational x
Operational x
MP85DP LED Red LED Yell LED Green LED Flashes
Status: Error x
Status: BD_SEAR, WT_PARM, WT_CONF x
Status: DATA_EX x
