54 IT 1002 Order No BA 93-66-1206 Issue 03.11.08

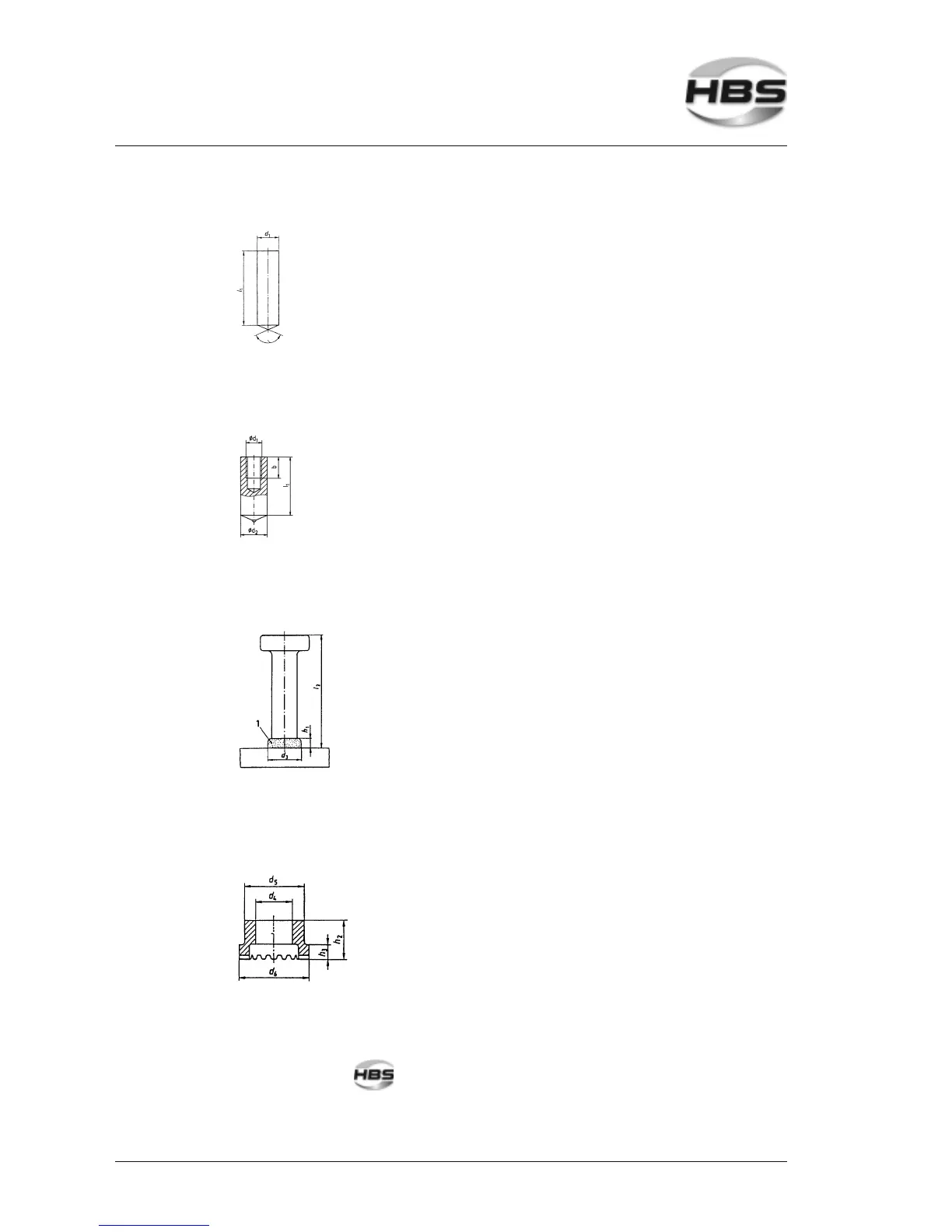

Pin UD (S) Diameter Length
Ceramic Shielding gas *)
6 20-50 mm 83-50-006 83-51-006
8 20-50 mm 83-50-008 83-51-008
10 20-80 mm 83-50-010 83-51-010
12 20-80 mm 83-50-012 83-51-012
16 25-80 mm 83-50-016 ---
Chuck
Materials: S235 / St37.3k (4.8) / 1.4301, 1.4303
Pin with internal thread MI (ID) Diameter Length
Ceramic Shielding gas *)
M10 20-50 mm 83-50-010 83-51-010
M12 20-50 mm 83-50-012 83-51-012
M16 20-50 mm 83-50-016 ---
Chuck
Materials: S235 / St37.3k (4.8) / 1.4301, 1.4303
Head stud SD Diameter Length Chuck ceramic
1/4" (6) 50-100 mm 83-53-006
3/8" (10) 50-175 mm 83-53-010
1/2" (13) 50-175 mm 83-53-012
5/8" (16) 50-175 mm 83-53-019
3/4" (19) 50-175 mm 83-53-019
7/8" (22) 75-200 mm 83-53-022
Materials: S235 / St37.3k (4.8) / 1.4301, 1.4303
Ceramic ferrule RF
for threaded stud RD
Diameter Ceramic ferrule support
6 80-31-095
8 80-31-120
10 80-31-150
12 80-31-170
16 80-31-205
Materials: S235 / St37.3k (4.8) / 1.4301, 1.4303
* Please use only welding elements without aluminum ball.
5 Stud Welding Procedure
5.10 Welding Elements
