IT 1002 Order No BA 93-66-1206 Issue 03.11.08 55

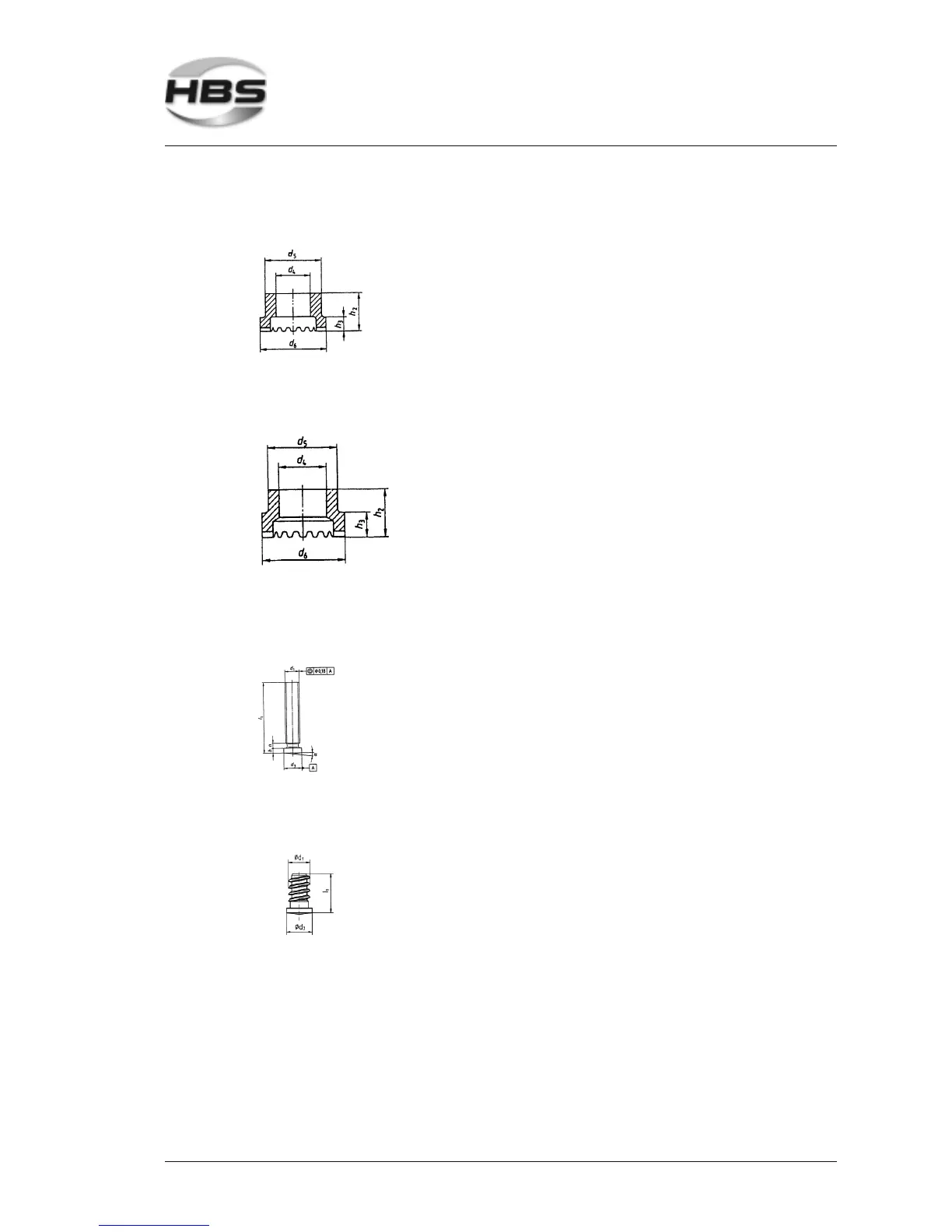

- Ceramic ferrule PF for threaded stud PD
- Ceramic ferrrule UF for pins UD, MI
Diameter Ceramic ferrule support
6 80-31-095
8 80-31-120
10 80-31-150
12 80-31-205
16 80-30-116
Materials: S235 / St37.3k (4.8) / 1.4301, 1.4303
Ceramic ferrule UF for head stud SD Diameter Ceramic ferrule support
1/4" 80-30-206
3/8" 80-30-210
1/2" 80-30-213
5/8" 80-30-219
3/4" 80-30-219
7/8" 80-30-222
Materials: S235 / St37.3k (4.8) / 1.4301, 1.4303
Threaded stud FD
with flange
Diameter Length Chuck
M3 on request 82-50-003
M4 on request 82-50-004
M5 on request 82-50-005
M6 on request 82-50-006
M8 on request 82-50-008
Materials: S235 / St37.3k (4.8) / 1.4301
X-mas tree stud Diameter Length Chuck
5 on request 82-50-005
6 on request 82-50-006
Materials: S235 / St37.3k (4.8) / 1.4301, 1.4303
We look forward to consult you with view to special welding elements and other special
materials.
HBS Bolzenschweiss-Systeme GmbH & Co. KG
Felix-Wankel-Strasse 18
85221 Dachau / Germany
Phone +49 (0) 8131 511-0
Fax +49 (0) 8131 511-100
E-mail post@hbs-info.com
5 Stud Welding Procedure
5.10 Welding Elements
