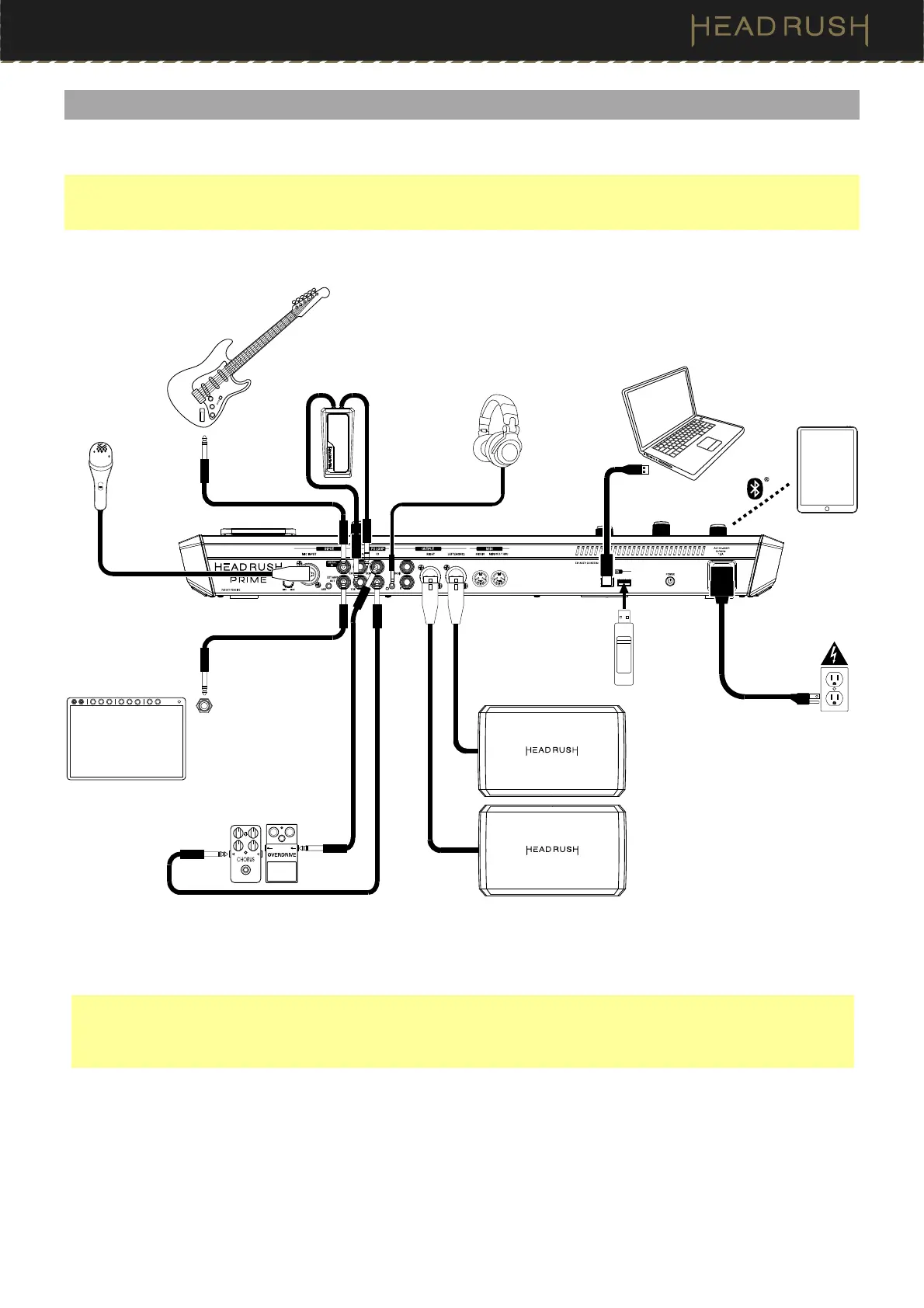

(2.0) Setup
Items not listed under (1.1) Introduction > Box Contents are sold separately.
IMPORTANT! In the (4.21) Global Settings menu, make sure you set the Outputs to send signal at amp level if
you are using a traditional guitar amplifier, or line level (default) if you are using a full-range flat-response amplifier,
mixer, PA speaker or audio interface.
Guitar
Full-range, flat-response amplifier
Headphones
External effect stompboxes,
modules, etc.
Computer
(optional)
Power
outlet
Expression
Pedal
Microphone
USB Flash
Drive
* IMPORTANT! Only connect this output to amplifiers that have a "short-to-sleeve" footswitch input. If you
connect this output to any other type of footswitch input, you may cause permanent damage to your equipment.
If you are unsure if your amplifier has a "short-to-sleeve" footswitch input, please consult the amplifier's manual
or manufacturer to confirm before attempting.
Amp
Footswitch
Input*
Tablet
