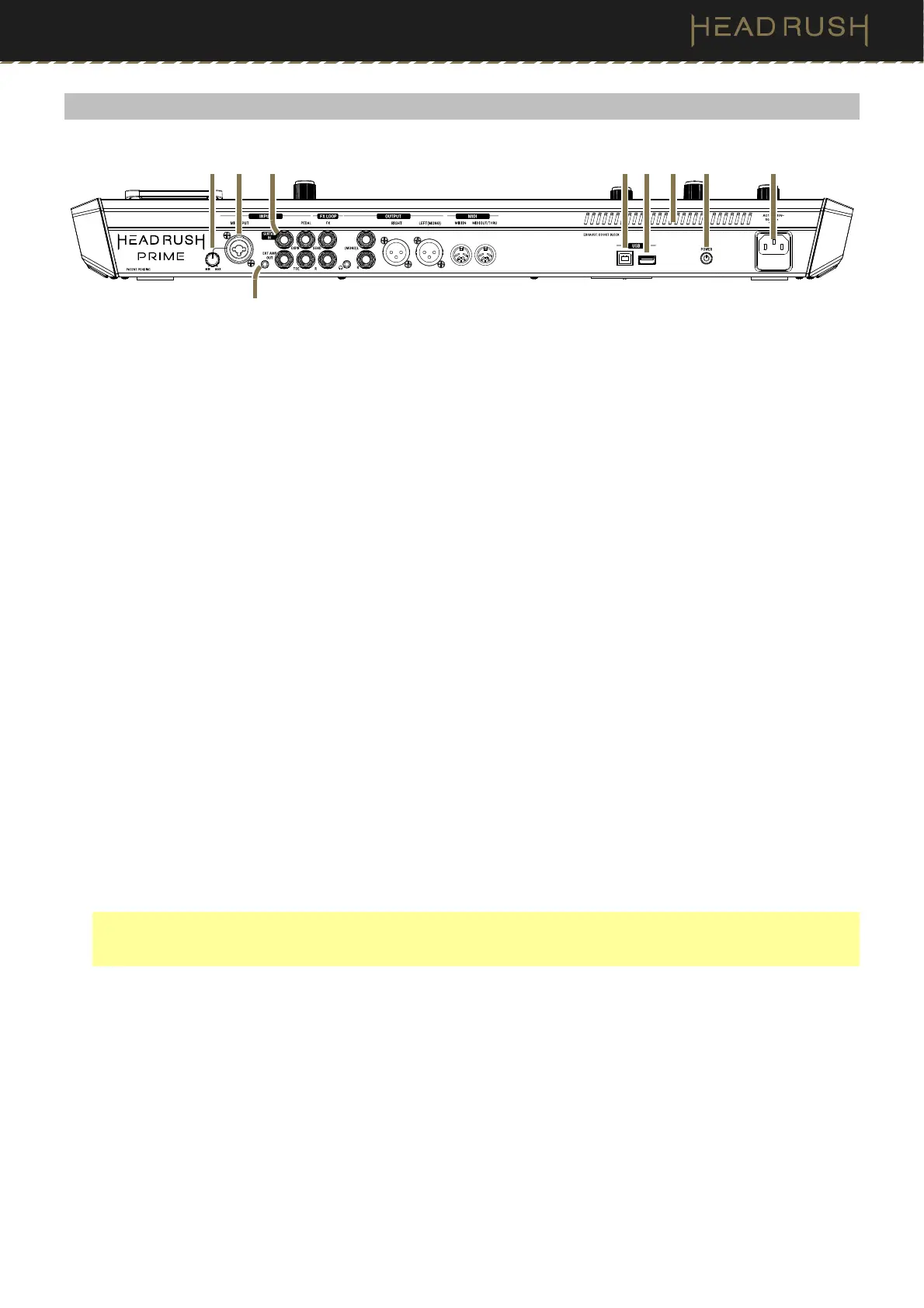

(3.2) Rear Panel
1. Power Input (IEC)
Connect this input to a power outlet using the included power cable.
2. Power Switch
Press this button to turn HeadRush Prime’s power on.
3. Vent
Make sure this vent is unobstructed while using HeadRush Prime.
4. USB-B Port
Connect this USB port to a computer using a standard USB cable. This connection allows HeadRush Prime to
send and receive the digital audio signal to and from your computer. You can also use this connection to import
or export rigs, block presets, and setlists. See (4.16) USB for more information.
5. USB Type-A Port
Connect a USB flash drive to this USB port for addition
al storage. A class-compliant USB device can also be
connected to this USB port for external MIDI control.
6. Guitar Input (1/4”/6.35 mm, TS)
Connect your guitar to this input using a standard instrument cable.
7. Mic Input (XLR or 1/4”/6.35 mm, balanced)
Connect a microphone to this input using a standard XLR or 1/4” (6.35 mm) microphone cable. You can enable
or disable +48V phantom power for these inputs in the (4.21) Global Settings screen.
Important: Only enable phantom power if your microphone requires it. Most dynamic microphones and ribbon
microphones do not require phantom power, while most condenser microphones do. Consult your microphone's
documentation to find out whether it needs phantom power.
8. Mic Input Gain
Use this knob to adjust the level of the Mic Input. View the current level of the microphone by double tapping
the input block to make sure the level is not low or clipping.
9. Aux Input (1/8”/3.5 mm, TRS)
Connect an optional audio source (e.g., smartphone, tablet, etc.) to this input using an 1/8” (3.5 mm) stereo
cable.
10. Expression Pedal Input (1/4”/6.35 mm, TRS)
Connect an optional secondary expression pedal to this input using a standard instrument cable.
