9

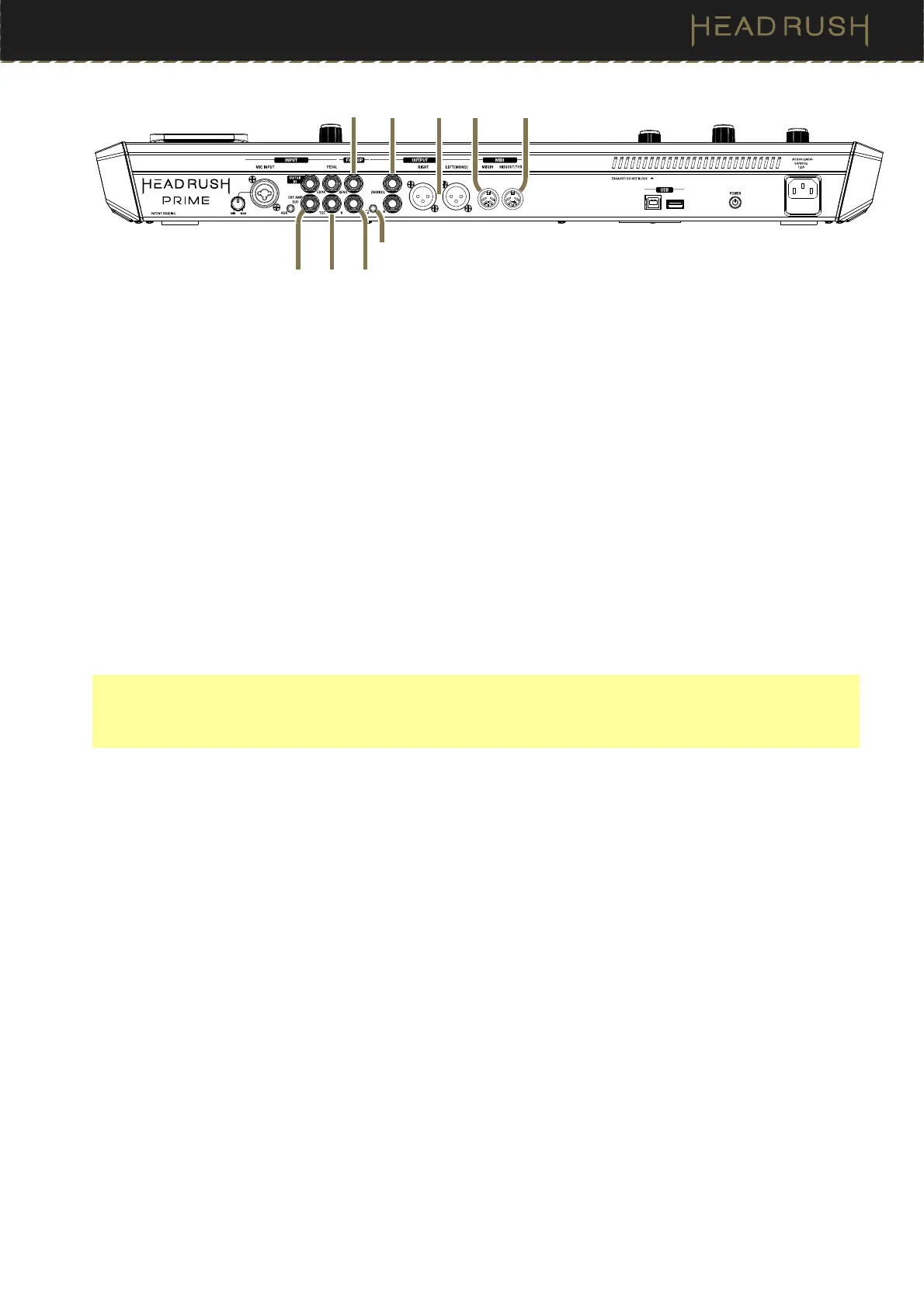

11. Expression Pedal Toe Switch Input (1/4”/6.35 mm, TS)
Connect the toe switch output of your optional expression pedal to this input using a standard 1/4” (6.35 mm)
TS cable.
12. FX Send Output (1/4”/6.35 mm, TRS)
Connect this output to the input of another effects module, an effect pedal, or the effects loop return of an
amplifier.
13. FX Return Input (1/4”/6.35 mm, TRS)
Connect this input to the output of another effects module, an effect pedal, or the effects loop send of an
amplifier.
14. External Amp Footswitch Output (1/4”/6.35 mm, TRS)
Connect this output to the footswitch input of an external guitar amplifier to toggle channels or turn reverb on and
off on the amplifier using HeadRush Prime.
IMPORTANT! Only connect this output to amplifiers that have a “short-to-sleeve” footswitch input. If you
connect this output to any other type of footswitch input, you may cause permanent damage to your equipment.
If you are unsure if your amplifier has a “short-to-sleeve” footswitch input, please consult the amplifier's manual
or manufacturer to confirm before attempting.
15. Phones Output (1/8”/3.5 mm, TRS)
Connect standard 1/8” (3.5 mm) stereo headphones to this output. Use the phones volume knob to control
the volume level.
16. Outputs (1/4”/6.35 mm, TRS)
Connect these outputs to the inputs of your amplifier, audio interface, etc. If you only need to use one output,
use the one labeled (Mono) L.
17. Outputs (XLR)
Connect these outputs to the inputs of your mixer, active loudspeaker, etc. If you only need to use one output,
use the one labeled Left (Mono).
18. MIDI Input (5-pin DIN)
Use a standard MIDI cable to connec
t this input to the MIDI output of an optional external MIDI device.
19. MIDI Out/Thru (5-pin DIN)
Use a standard MIDI cable to connect this output to the MIDI input of an optional external MIDI device. You
can set this output to be a standard MIDI output or MIDI throughput in the (4.21) Global Settings screen.
12 16 1817
14 11
15
13
19
