05 STARTUP

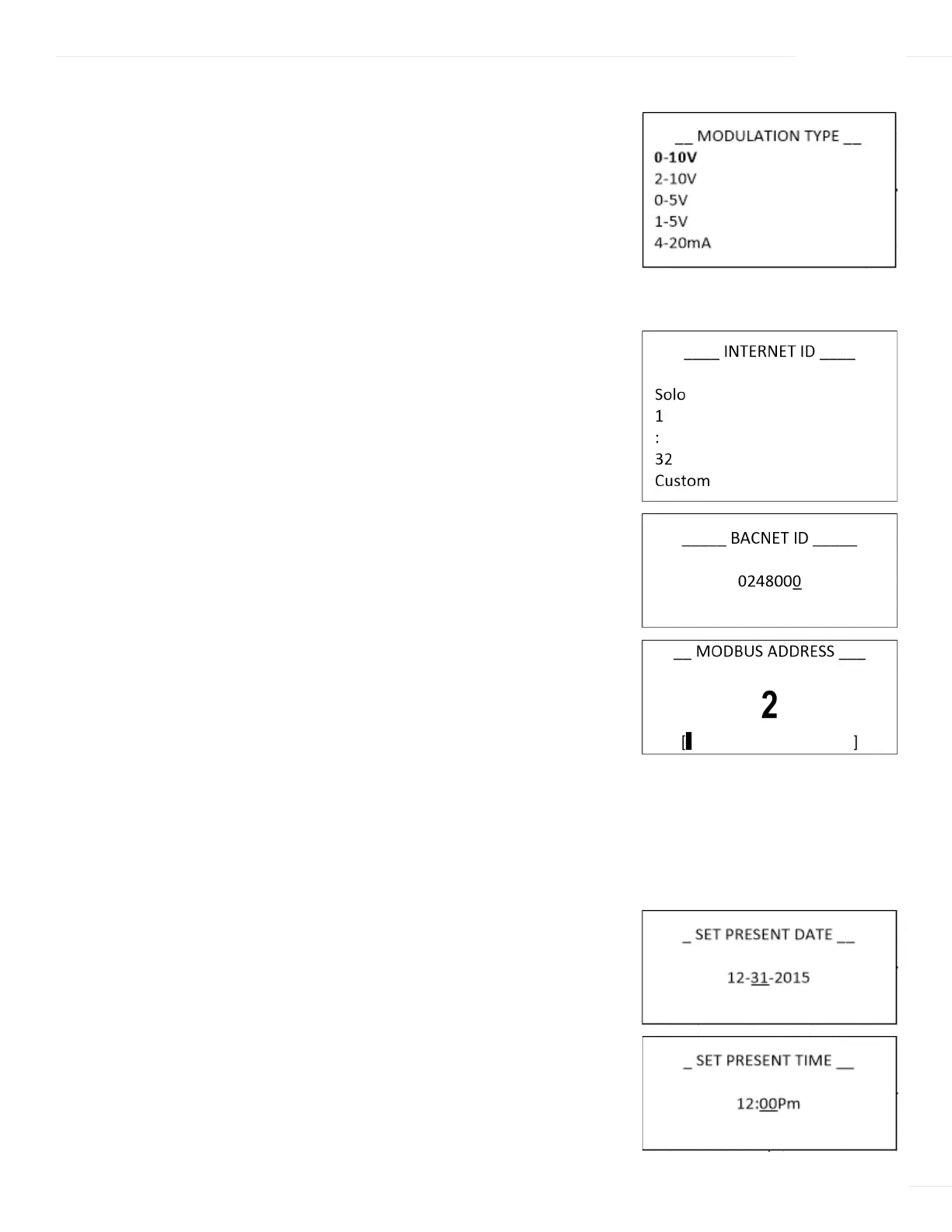

MODULATION TYPE
Selections: 0–10V, 2–10V, 0–5V, 1–5V, 4–20mA Default: 0–10V
Menu Path: /System Startup > Display Unit > Setpoint Input> AUX1
Input > AUX2 Input> ... > Modulation Type
Description:
The ETS-LT Control Module is capable of operating a variety
of 3-way valve Actuators. Heat-Timer factory-supplied Actuators are set to
0–10V signal. The selection must match the Actuator modulation signal.
NETWORK COMMUNICATION OPTIONS
Selections: Network communications settings
Menu Path: /System Startup > ... > Modulation Type > {comm options}
Description:
During startup, the ETV Platinum Plus detects an installed
network option. If no network is detected, network configuration screens
are bypassed.
• RINET–Internet ID (Solo, 1–32, or Custom)
– Solo: if the ETV Platinum Plus is directly connected to the modem
– Internet ID 1–32: if the ETV Platinum Plus is connected to a router
(Port Forwarding must also be configured on the router)
– Custom: IP address, Subnet mask, Default gateway, DNS server
• BACnet–BACnet ID, BACnet option (IP or MSTP)
– BACnet IP: IP address, Subnet mask, Default gateway,
BACnet port
– BACnet MSTP: MSTP address and Baud rate
• Modbus–Modbus address, Modbus option (Serial, TCP, or UDP)
– Modbus Serial: Baud rate
– Modbus TCP or UDP: IP address, Subnet mask, Default gateway,
DNS server
SET PRESENT DATE AND TIME
Selections: Numerical values for Month, Day, Year, and Time
Menu Path: /System Startup > ... > Modulation Type > {comm
options} > Set Present Date > Set Present Time
Description:
Sets the present date and time on the control. The date and
time are used to regulate the Schedule.
The ETV battery is used to maintain the date and time during power outages.
