05 STARTUP
ALARM LOG
Selections: Scroll list
Menu Path: /Maintenance > Alarm Log

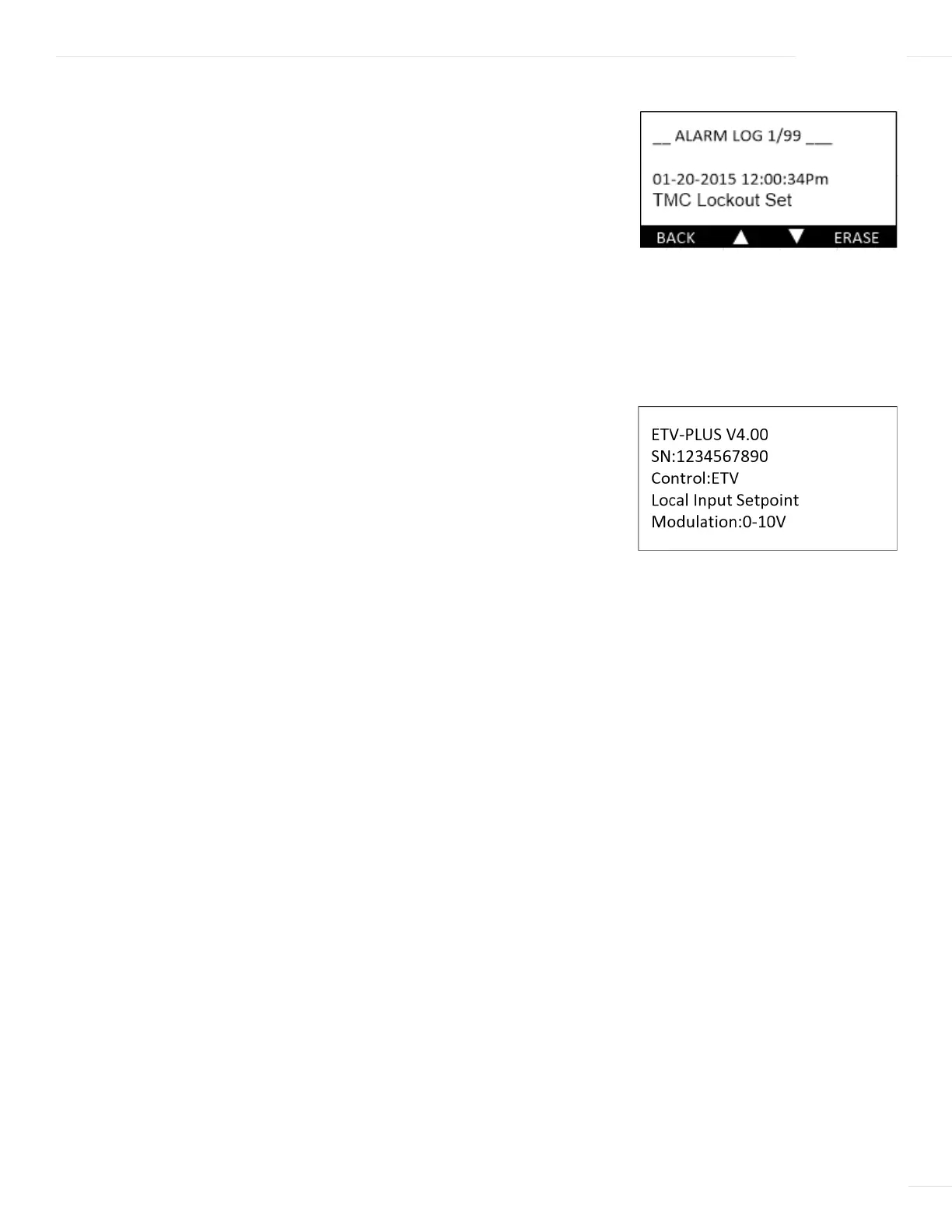

Description:
The ETV Platinum Plus keeps a log of the last 99 alarms,
including their date and time. For a list of possible alarms included in the
Alarm Log, see “Alarm Messages” on page 23.
Use the two middle buttons to scroll through the alarm list. Single-press
the Erase button to delete the currently displayed alarm. Long-press (at
least 5 seconds) the Erase button to delete all alarm entries.
CONFIGURATION
Selections: None
Menu Path: /Maintenance > Configuration
Description:
The Configuration menu provides access to screens that
display the current configuration of the ETV Platinum Plus. Available
information includes: software version, serial number, startup settings,
communication settings, and battery level.
Press the Next button to advance through the configuration screens.
