HEAT-TIMER CORP.
059327–00 REV. C
ETS-LT CONTROL MODULE—UPGRADE WIRING & REPLACEMENT

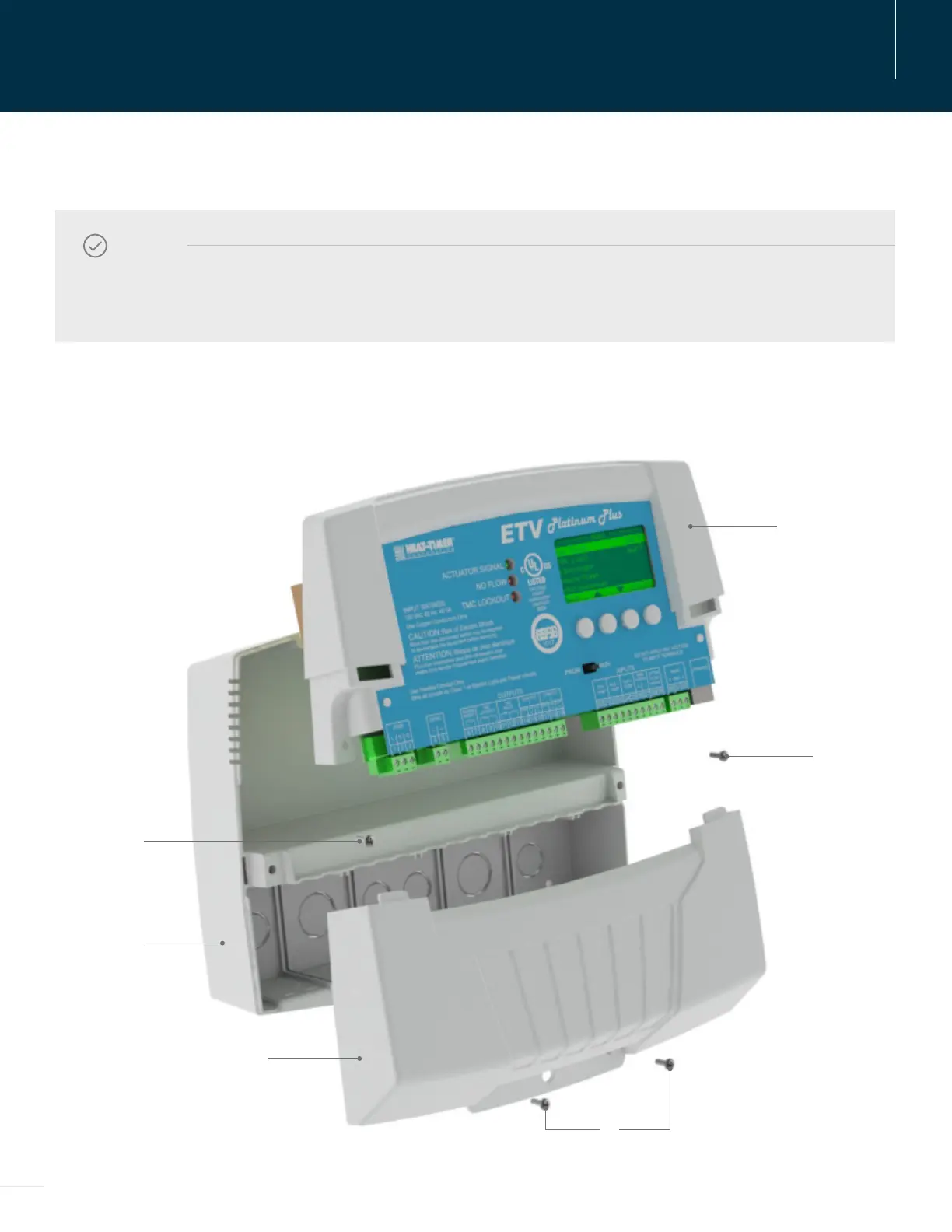

1 Remove the Enclosure Wiring Cover (1) by removing the two lower screws (2) holding it to the base (3), and
then remove the Display Module (4) by removing the two middle screws (5) holding it to the base.
06 ETS-LT CONTROL MODULE WIRING
NOTE
The information in this section is intended only for field replacement of the ETV Platinum Plus module or
for upgrading the ETS-LT assembly for communications options.
4
5
5
1
3
2
