05 STARTUP
LOCKOUT MENU
The Lockout menu is used to reset system lockouts.
NOTE
Under specific conditions, the control triggers the alarm and logs the event in the Alarm Log
(See “Alarm Log” on page 37).

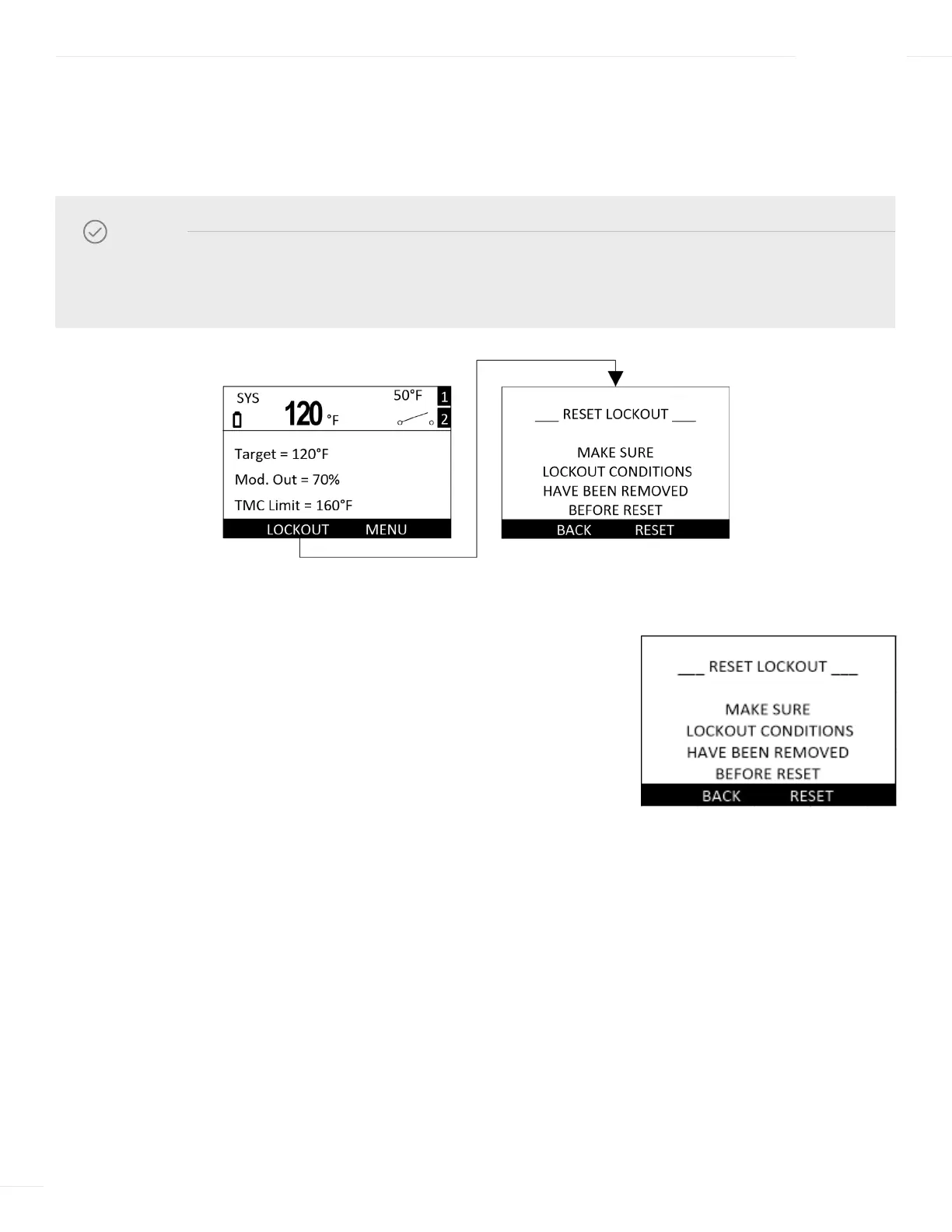

RESET LOCKOUT
Selections: RESET Default: N/A
Menu Path: Lockout
Description:
The HTLV Lockout outputs energize whenever the System
Temperature rises above the Alarm Limit for the Trigger Delay period.
To reset the lockout, the conditions causing the lockout must be corrected
first. Then, the lockout can be reset using the Reset Lockout menu. If the
lockout was reset before the conditions are corrected, the lockout output
will immediately be re-activated.
