28
English

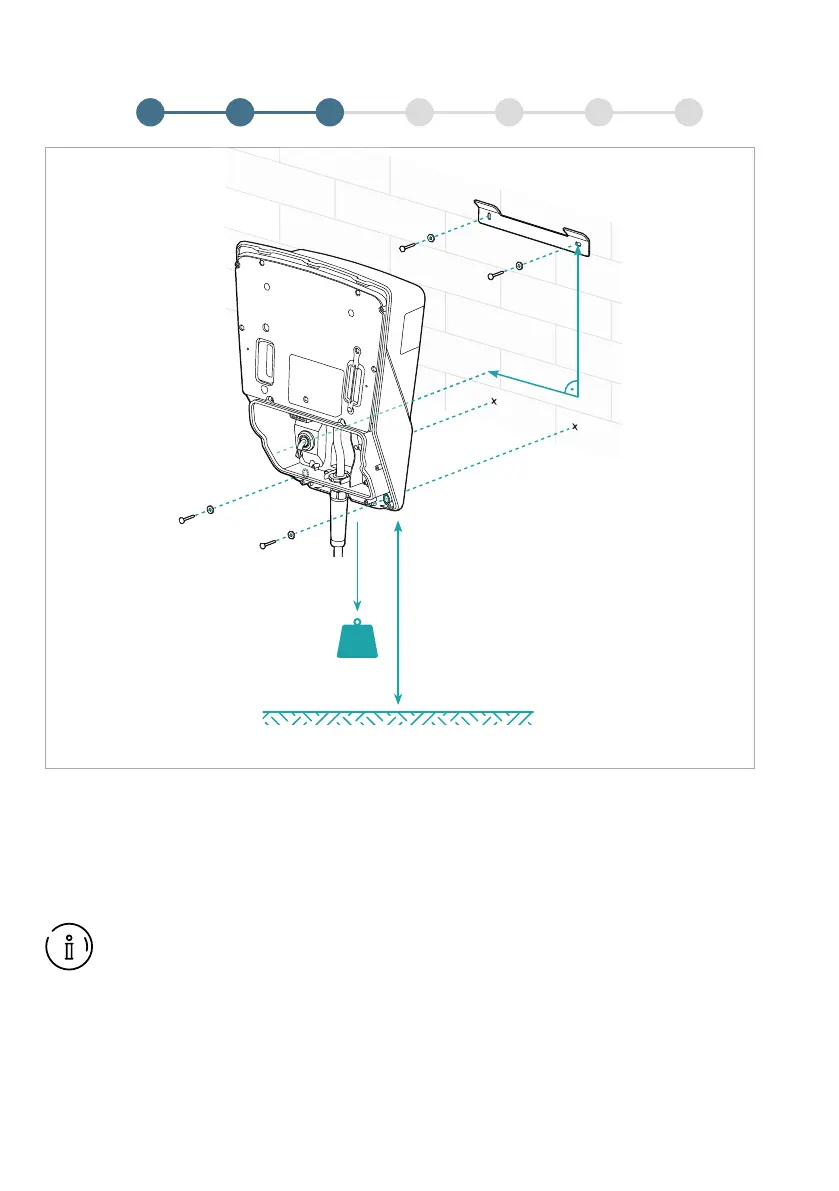

Fig.5
900 – 1,500 mm
172 mm
274 mm
11 kg
Proceedasfollowsforwallmounting:
1. Mountthewallbracket,aligningitusingaspirit
level. Use the special washers supplied, as well as
the screws and screw anchors suitable for the wall
inquestion.
Screws and screw anchors are
not included in the supply scope.
2. Hang the charging system into the mounted wall
anchor and mark the hole locations for the lower
fastening screws.
3. Take the charging system out again and drill holes at
the markings.
4. Insert all cables through the rear of the charger and
throughthedesignatedgrommets.InsertanyLAN
cablewithouttheLANconnectingplug.
5. Hang the charging system into the wall bracket again
and fasten it in place. Use the supplied washers.
3 4 5 6 71 2
Wall mounting
