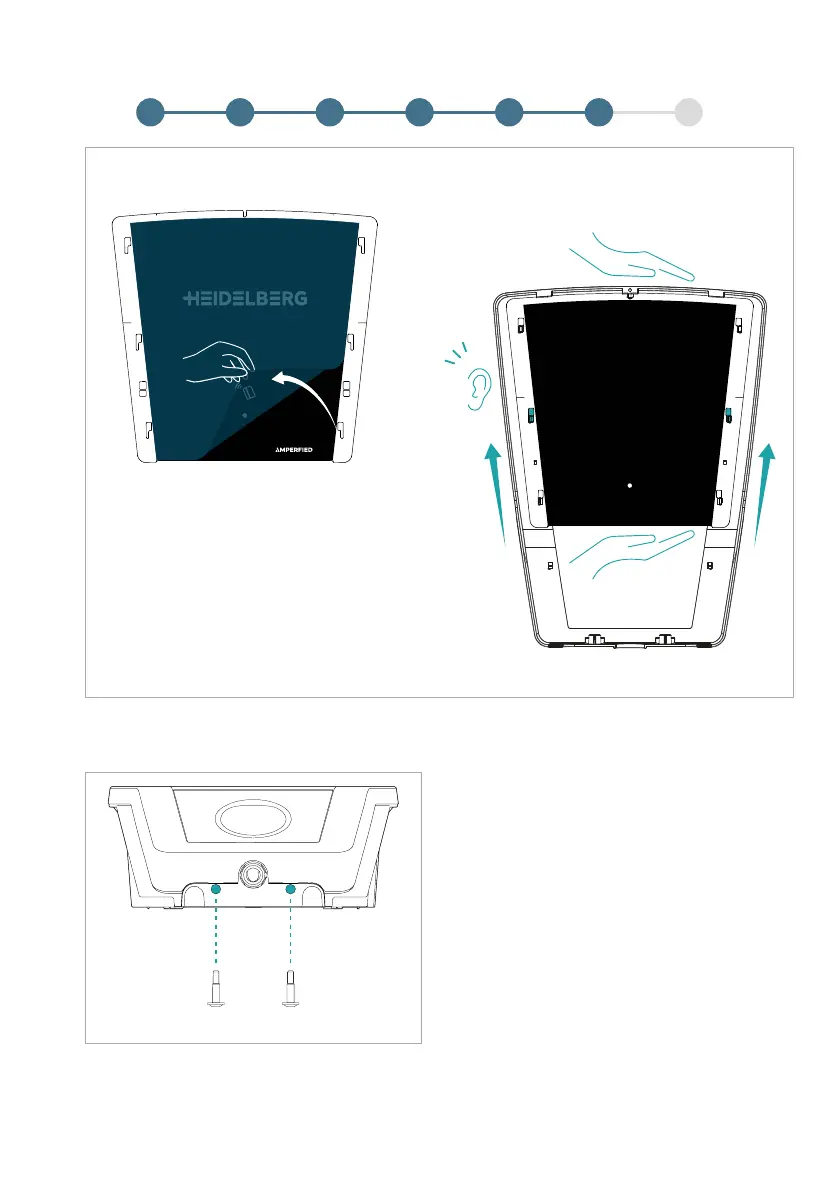

Fig.9
Afterperformingtherequiredinstallationsteps,tthe
frame with the cover.
Proceedasfollows:
• Peeltheprotectivelmoffthecover,asshownin
Fig.9.
• Pleasenotethatthecoveristtedwithitsunlabelled
side facing the inner side of the frame. Listen for the
click indicating that it has snapped into place.
• Fastentheouterframeonthechargingsystemusing
the supplied screws at the positions shown in Fig.10.
Instructions for removing the cover are available in the
Downloadareaatwww.ampered.com.
Fig.10
max. 1 Nm
3 4 5 6 71 2
Assemblingthe
charging system
click!
