6 OPENING/CLOSING THE HMD230/IGD
6.1 OPENING THE COVER
 open the lock
 turn the lever through a quarter rotation in a clockwise
direction
 now rotate the cover through approx. 90º so that it can
serve as a rain cover
 lift the cover away in a vertical movement

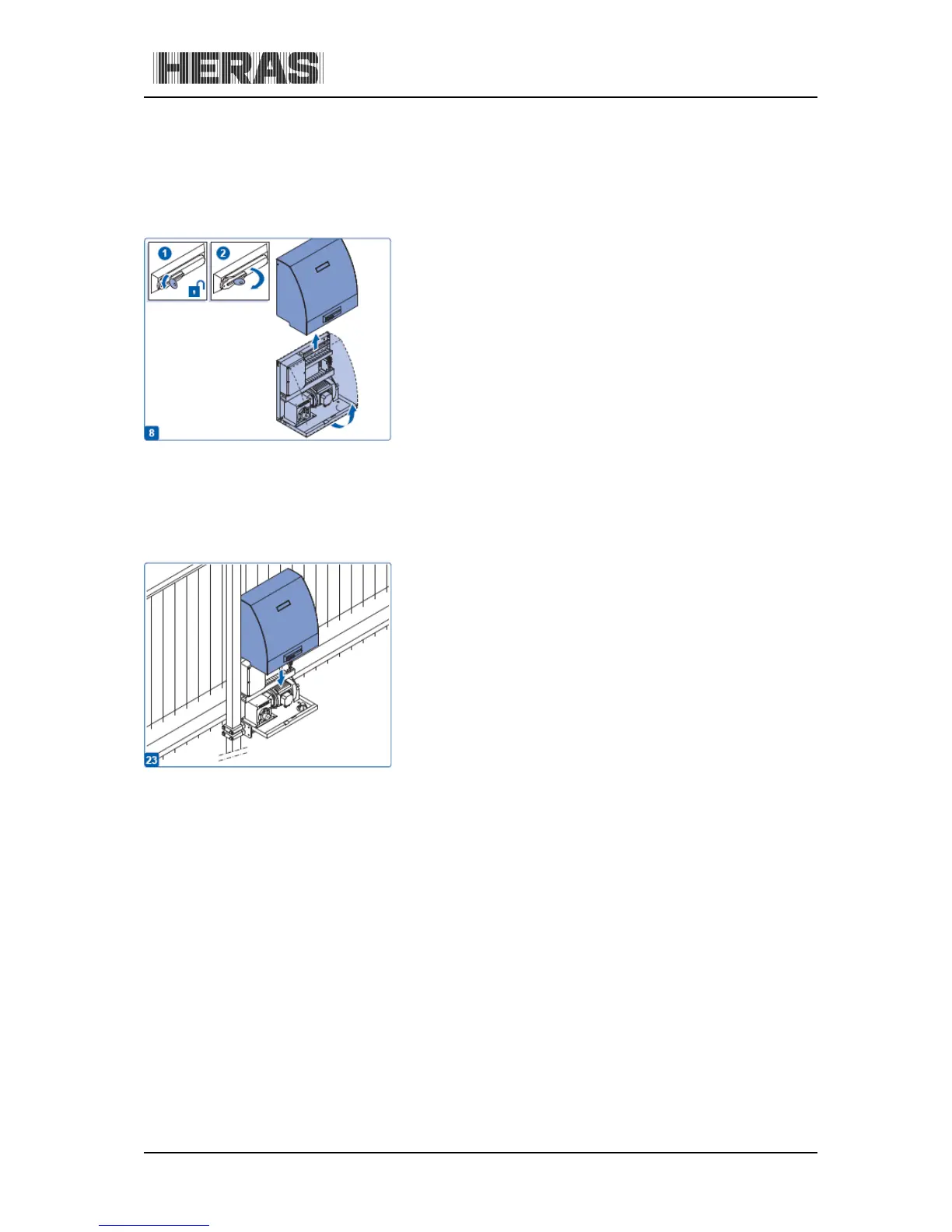

Illustration 9: opening the cover*
6.2 CLOSING THE COVER
 lower the tabs of the cover into the slot in the drive
unit cabinet
 screw the cover into place to close it. Make sure that
the sides of the cover properly fit over the drive unit
cabinet
 close the lever and the lock
Illustration 10: closing the cover*
* The illustration shows the HMD230. The same principle applies to the IGD.
