37
4.2
press
briefly
turn CW
S
e
t
t
i
n
g
s
2
G
a
t
e
L
i
m
i
t
s
4.2.1
press
briefly
The end position has been
set again. The control
software is restarted.
G
a
t
e
L
i
m
i
t
s
1
S
e
t
C
L
O
S
E
L
i
m
.
Alternative method:
 Simultaneously Press and hold the OPEN/CLOSE keys on the backplane for 8 seconds; applies
to versions 1.02 and up.
Attention: engaging the motor when the gate is in the wrong position may cause
serious damage. If in doubt, contact the fitter!
See the chapter on “DISENGAGING THE MOTOR”

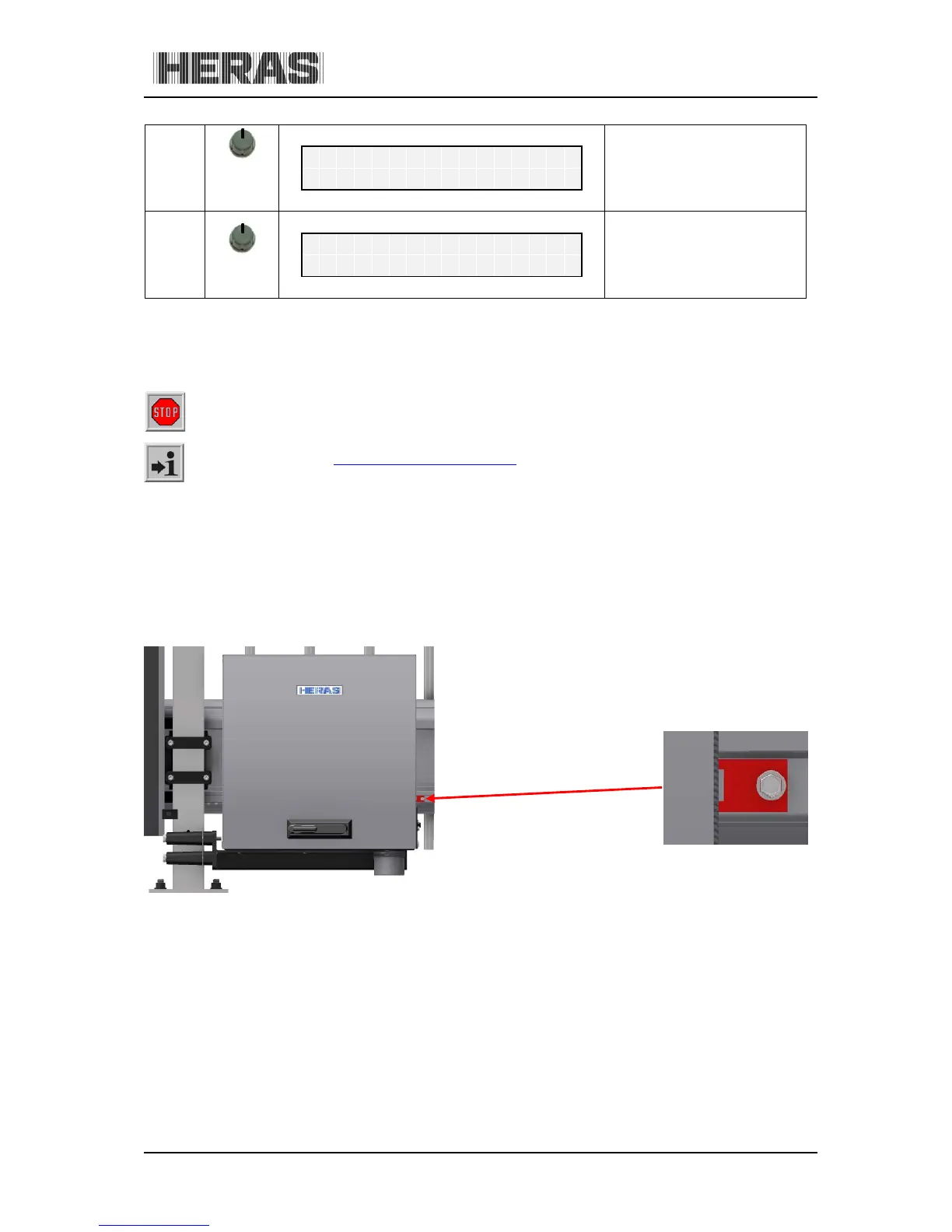

10.4.3 Marker plate
In CLOSED position (gate closed) the slot of the marker plate must be aligned to the side of the drive
unit. If this is not the case, then manually move the gate to its CLOSED position.
Marker plate
Illustration 20: Marker plate on a Delta
