The LCD panel illuminates & initial display of
multi function digital segments are displayed.
The tachometer segment and the fuel gauge
segment will swing to the maximum scale once
and back to its normal position. The engine can
be started. Turn signal lamp, horn, tail/stop
lamp, fuel gauge, pass lamp, position lamp,
programmed FI malfunction indicator lamp
(MIL) illuminates continuously & neutral
indicator will be functional.
Key cannot be removed.
Engine cannot be started and no electrical
system will be functional.
Key can be removed.
Steering can be locked.
Key can be removed.
“OFF” ( )
Position/Lock Open
“LOCK” Position
“ON” ( )
Position
“LOCK”
“ON” ( )
“OFF” ( )
1. Ignition switch
2. Ignition key
3. “OFF” ( ) position
5. “ON” ( ) position
4. Steering lock position

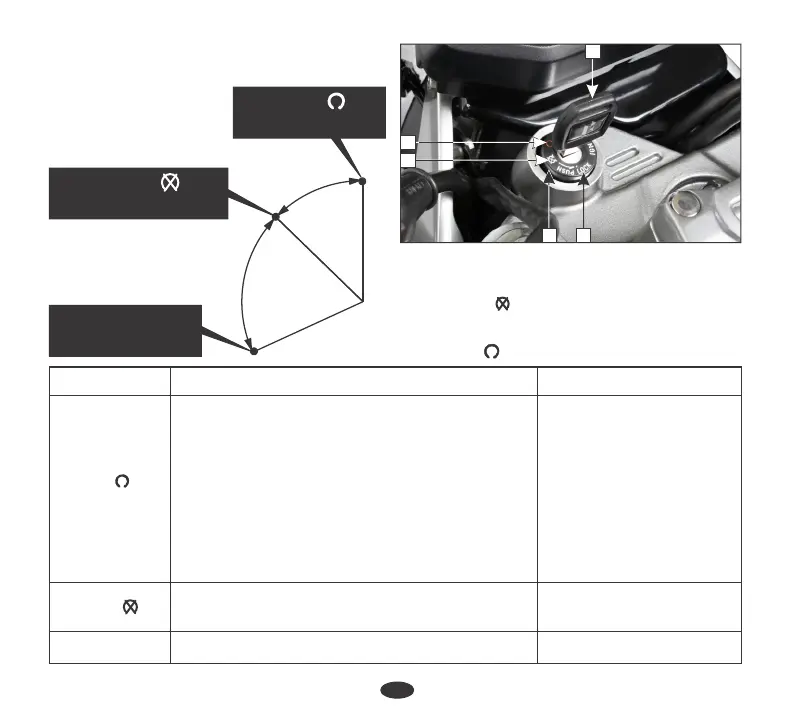

Key Position Function
Key Removal
PARTS FUNCTION
IGNITION SWITCH
2
4 1
5
3
